Model No: TTI2316

TTI Fiber Optical Optic Splice Closure Horizontal In Line Type

Material : ABS And PP, PC ABS, ExcellentProject Plastic, Aluminum Alloy, Plastic + Metal
Type : Horizonal/Dome Type Product Name Fiber Optic Closure
Application FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base Station, For ODF Internal Link, For Room Equipment Internal Link, FTTH/Test Equipments/TV/LAN/Telecommunication Equipments Cable Port : Various Ports Available
Dimension : 460*160*100, 46*18*13CM, 460(L) X 160(W) X 100(H)mm, 540mm*205mm
Operating Temperature : -40°C~+70°C., -40℃-60℃
Package : Plastic Bag, By Carton Box
Fiber Cores : 12 To 288 Cores, 12~288 Cores
High Light : Horizontal Optical Splice Closure, In Line Type Optic Splice Closure, In Line Type Optical Splice Closure

minimum order :

1000 pieces

Quantity :

add to cart

Contact Now

TTI Fiber Horizontal In-line Type Optical Enclosure Optic Splice Closure

Specification:

Suitable for cable whose diameter is within 22mm. It can be used in aerial, duct and direct buried application as
well as the all-plastic local cable connection.Mainly in a variety of structural cable for the overhead, piping, buried
and other laying way through the direct and branch connection.The box is made of imported reinforced plastic,
high strength, corrosion resistance, terminal box for the structure of the cable terminal of the terminal room, the
structure is mature, sealed and reliable, easy construction. Widely used in communications, network systems,
CATV cable television, cable network systems and so on. The right side of the two into the two out of the box;

Fiber optic splice closure Purpose:
aerial, direct-burying, wall-mounting, Pipeline laying way
It is widely used for communication, network system, cabled TV of CATV, the fiber optic cable by network.

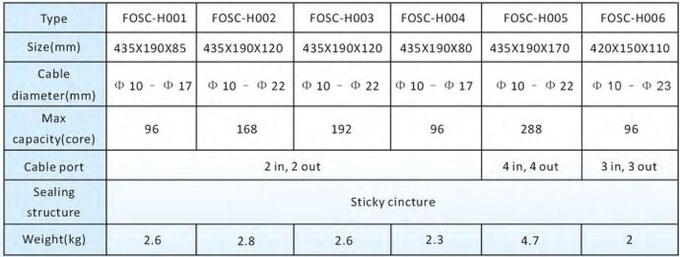

Optical Enclosure Optic Splice Closure

Features:

• Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use

of high quality polypropylene together with thermal aging additive

• Made of material with good capability of outdoor environment resistance and high durability

• Having reliable cable fixing and grounding facilities

• Using self-adhesive isolative tape and glue belt to seal

• To use rotating method to connect fiber organizer cassette result in easy installation

• Mechanical design suitable for installing, fiber splicing storage and cable connection

• Compact and tight

Main Technical Parameters for fiber optic splice closure

• Applicable environment temperatures: -40°C~+65°C

• Air pressure: 70~106Kpa

• Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m

• Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 50N.m (±90°)

• Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours

• Insulation resistance≥2×104MΩ,resistance to 15KV/min without break down

• Life expectancy: 25 years

Dimension ( mm )/Closure	460×180×108
Weight ( Kg )	3.5
Cable Diameter (mm)	Φ7-Φ18
Cables Entry & Exit	2 & 2
Max Capacity of Cores Per Splice Tray	12 (Single)/24 (Single)
Max Capacity of Splice Trays/ Closure	5 (12cores/tray) / 4 (24 cores/tray)
Max Capacity of Cores	60 Cores (12cores/tray) / 96 Cores (24 cores/tray)
Sealing Structure of Shell	Sticky Cincture or Silicon Gum Material

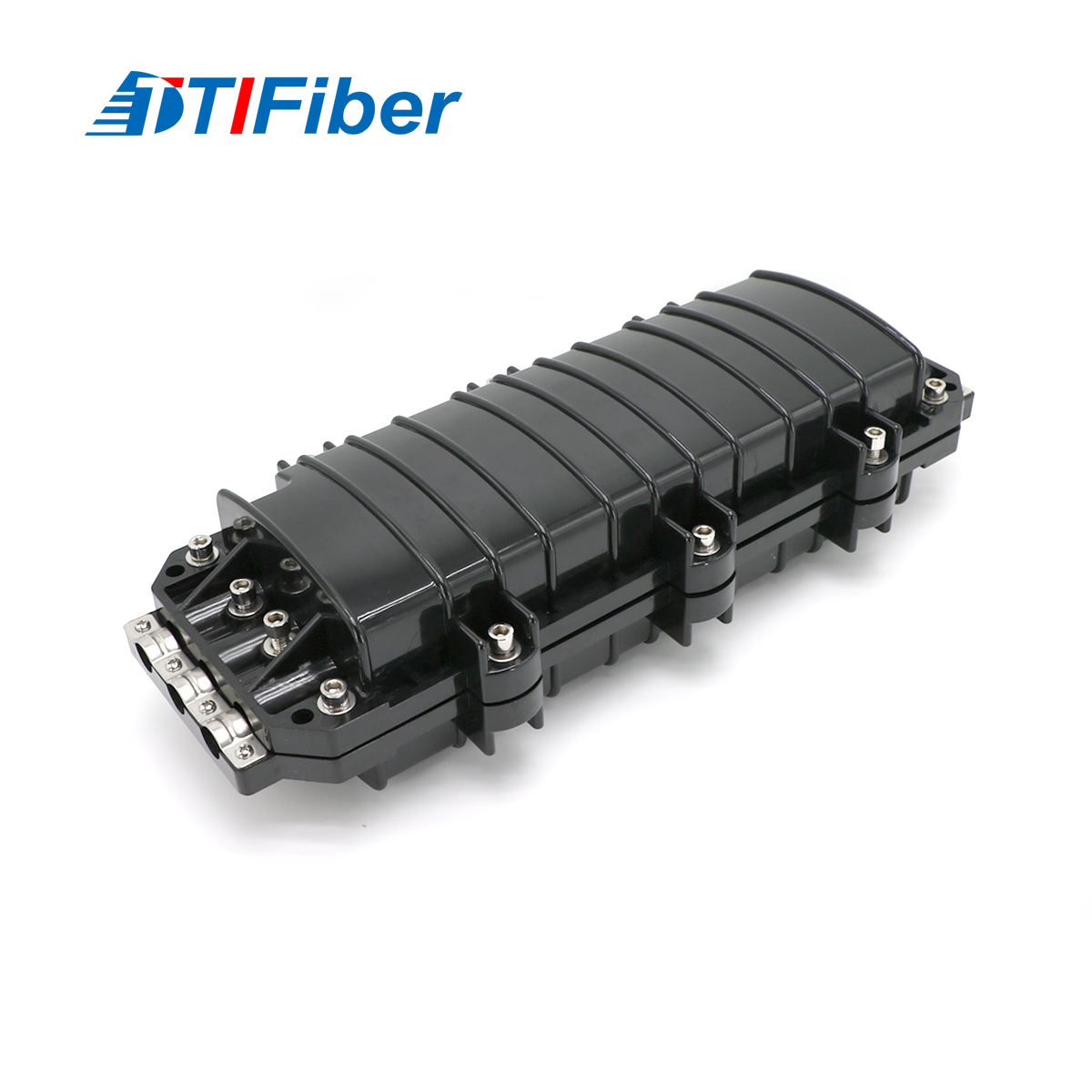

Fiber optic splice closure:

fiber optic splice closure
