Model No: TTI-323 OTDR
High Precision optical time-domain reflectometer (OTDR) Fiber optic OTDR Tester 1310/1550nm
Model Number : TTI-323 OTDR
Application : fiber construction
LCD type : 5 inch touch screen
Interface : USB
Package : Box
Dimensions (mm) : 200*126*62mm
Application : fiber construction
LCD type : 5 inch touch screen
Interface : USB
Package : Box
Dimensions (mm) : 200*126*62mm
minimum order :
1000 pieces
Quantity :
High Precision optical time-domain reflectometer (OTDR) Fiber optic OTDR Tester 1310/1550nm
Optical Time Domain Reflectometer (OTDR) acquires and analyses the information of backscattering and reflective
light propagating in fiber, based on the light backscatter and Fresnel reflection principle, to get the length, loss, fault
points, light return loss, connector loss and so on. It is an essential tool for optical cable construction, deployment
and maintenance.
light propagating in fiber, based on the light backscatter and Fresnel reflection principle, to get the length, loss, fault
points, light return loss, connector loss and so on. It is an essential tool for optical cable construction, deployment
and maintenance.
The TTI 323 series is a high-performance portable OTDR presented in 2017. This series product adopts some new
techniques such as touch screen and real-time analysis. The optimized interface makes operations more convenient.
Meanwhile the OPM and VFL are standard accessories. It is the best tool for fiber construction, deployment and
maintenance.
techniques such as touch screen and real-time analysis. The optimized interface makes operations more convenient.
Meanwhile the OPM and VFL are standard accessories. It is the best tool for fiber construction, deployment and
maintenance.
Other attributes
| Model Number | TTI-323 OTDR |
| Type | Active Optical Cables |
| Number of Conductors | ≥ 10 |
| LCD type | 5 inch touch screen |
| Distance range(Km) | 5m-100km |
| Interface | USB |
| Dimensions (mm) | 200*126*62mm |

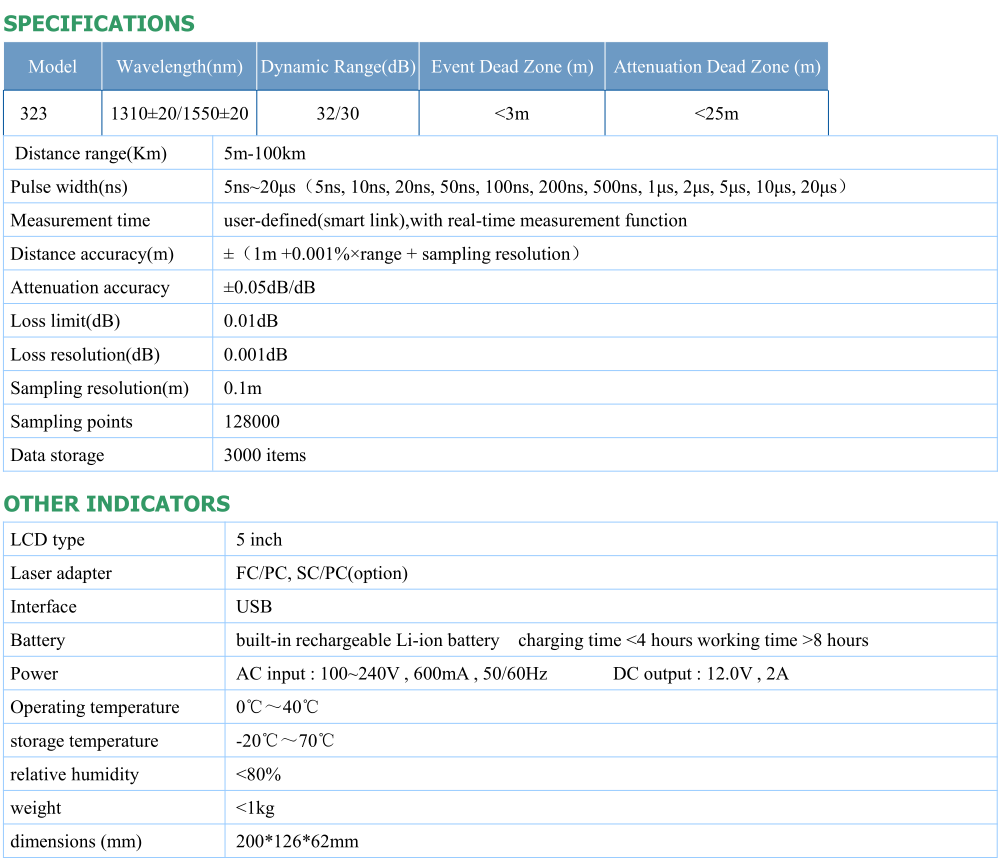

Otdr Fiber Tester Specification
Otdr Meter Features

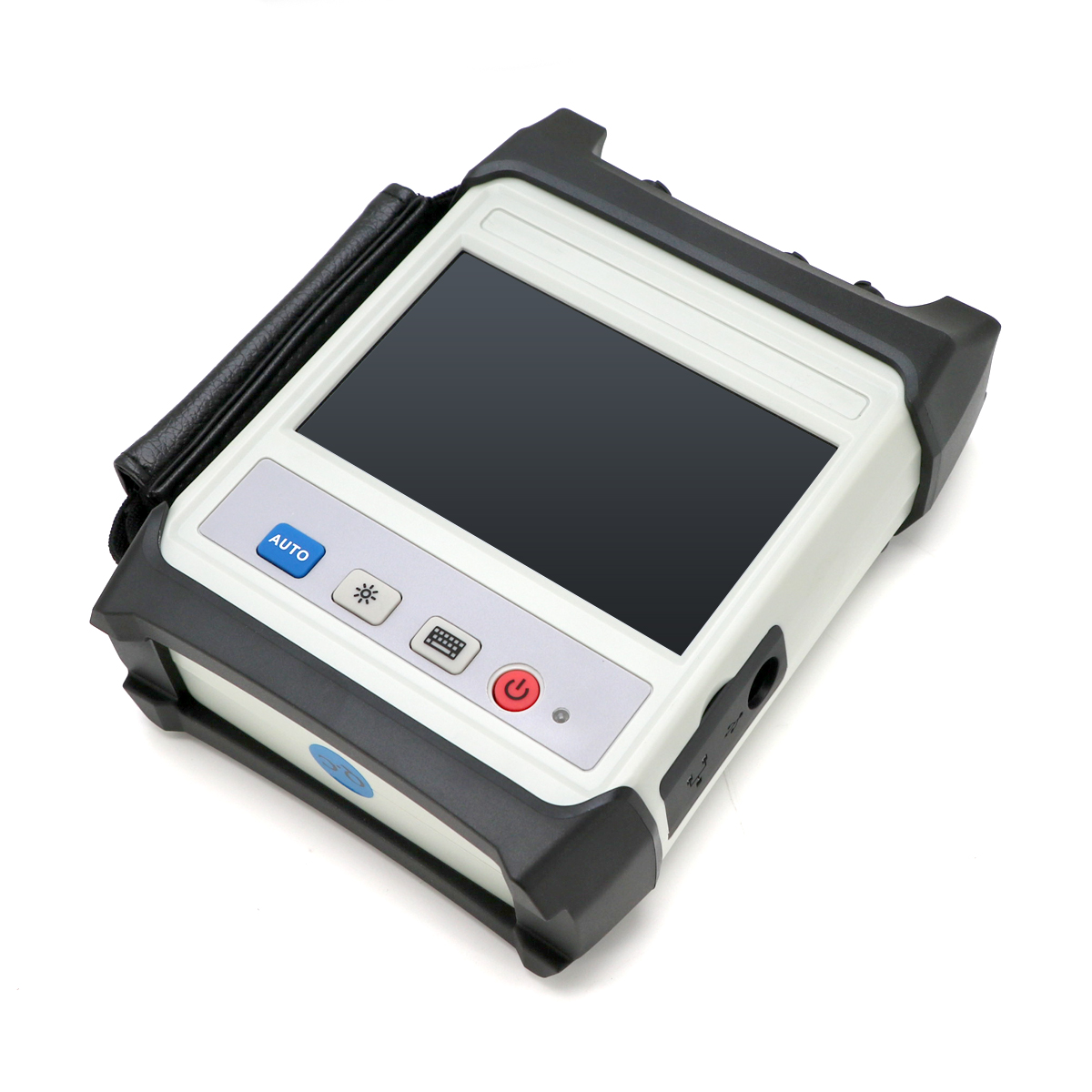

5 inch touch screen, 800×480 high dot array resolution
Compact structure design, lighter, thinner and smaller
Exceptional short distance performance; minimum 0.8m event dead zone; minimum 4m attenuation dead zone
Support 28dB to 36dB dynamic range of various application demands
Convenient and fast UE design
Support OPM and VFL
Complete data interfaces such as LAN, USB and so on
5 inch touch screen, 800×480 high dot array resolution
Compact structure design, lighter, thinner and smaller
Exceptional short distance performance; minimum 0.8m event dead zone; minimum 4m attenuation dead zone
Support 28dB to 36dB dynamic range of various application demands
Convenient and fast UE design
Support OPM and VFL
Complete data interfaces such as LAN, USB and so on

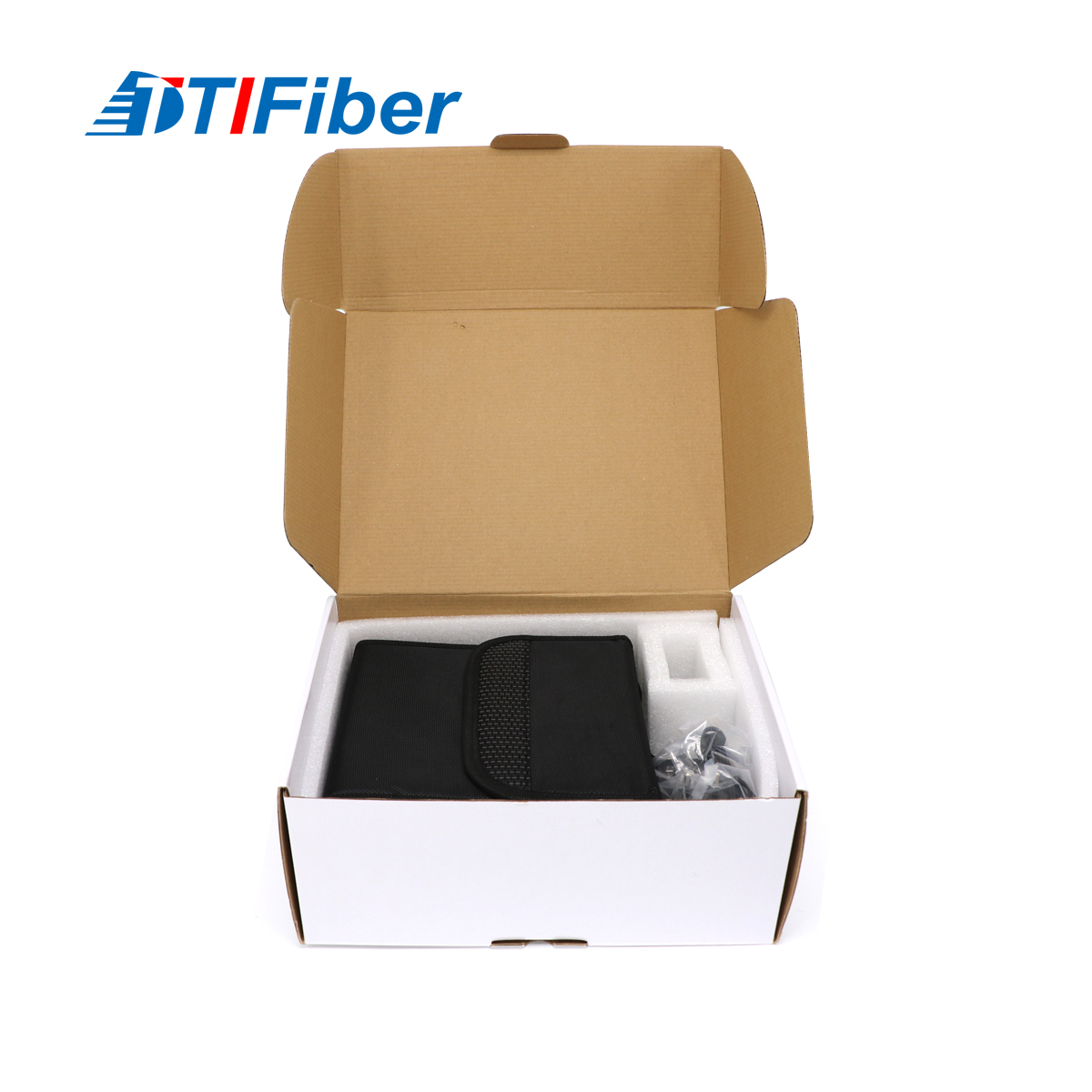

Packing & Delivery
