ZCC Double Core 8-Shaped Fiber Optic Cable
②Tight sleeved optical fiber has good flame retardant performance.
③Aramid reinforcing element provides the optical cable with excellent tensile properties.
④The i-shaped structure sheath is easy to peel off and branch.
⑤The external protection material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection and so on.

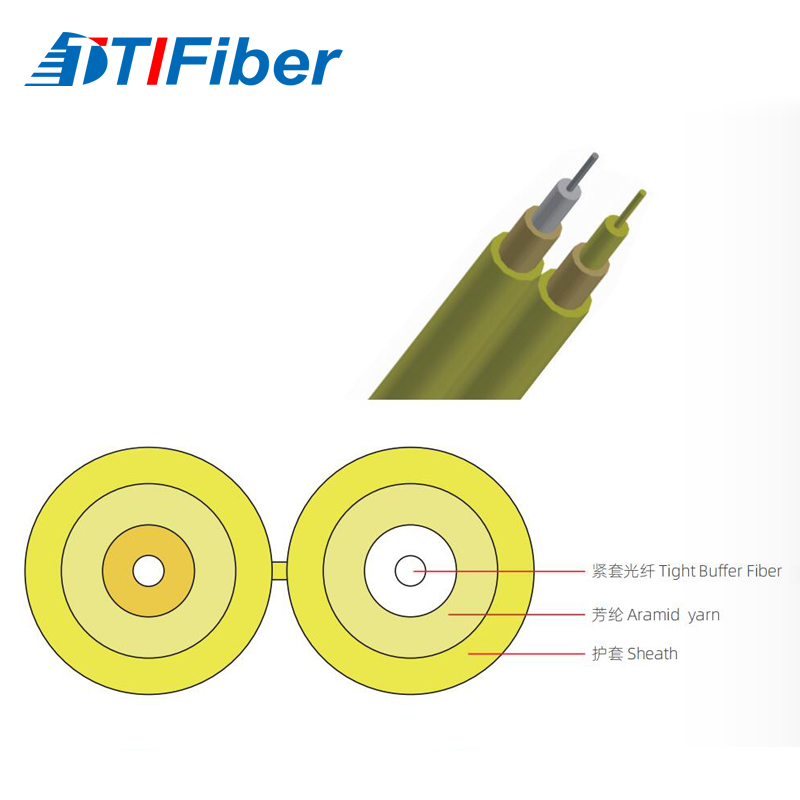

tight buffer fiber wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a
figure 8 PVC or LSZH (Low smoke, ero halogen,Flame-retardant) sheath.
①Tight sleeve optical fiber is adopted for easy stripping.
②Tight sleeved optical fiber has good flame retardant performance.
③Aramid reinforcing element provides the optical cable with excellent tensile properties.
④The i-shaped structure sheath is easy to peel off and branch.
⑤The external protection material has the advantages of corrosion resistance, waterproof, UV protection, flame
retardant, environmental protection and so on.
①Duplex optical fiber movable patch cord or pigtail.
②Indoor shaft level and forced ventilation level wiring.
③Interconnection of instruments and communication equipment.
Optical Characteristics
ZCC Fiber type | Attenuation | Full injection bandwidth | Effective bandwidth | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | Max | Typical value | Max | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G 652D | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 16 |
G 657A1 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 10 |
G 657A2 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 7.5 |
50/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥500/500 | - | - | 30 |
62.5/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥200/500 | - | 30 | |
OM3 | - | - | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | - | - | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
ZCC Cable model | ZCC Cable diameter(mm) | Weight (kg/km) | Tight buffer diameter (um) | Allowable tensile force Long / Short（N） | Allow squash Force Long / Short（N） | Bending radius Static / dynamic （mm） | |
PVC sheath | LSZH sheath | ||||||
ZCC - 1.6 | （3.4±0.3）*（1.6±0.2） | 4.8 | 5.3 | 600±50 | 40/80 | 100/500 | 60/30 |
ZCC - 1.9 | （4.0±0.3）*（1.9±0.2） | 8 | 8.7 | 900±50 | 100/200 | 100/500 | 60/30 |
ZCC - 2.8 | （5.8±0.3）*（2.8±0.2） | 11.6 | 14.8 | 900±50 | 100/200 | 100/500 | 60/30 |
Operating temperature / -20~+60℃
Storage temperature / -5~+50℃
ZCC Double Standards
Meet YD / T 1258.2、ICEA-596、GR-409、IEC60794-2 and other standards.
