Model No: FTB-12
SC 12 Port Wall Mount Fiber Termination Box With ABS Plastic Housing
Mode : Wall Mounted
Connector : SC, LC
Material : PC, ABS
Port : 2in, 12out
Application : Indoor, Outdoor Color Black, White, Grey
High Light : fiber distribution box, fibre optic termination box
Connector : SC, LC
Material : PC, ABS
Port : 2in, 12out
Application : Indoor, Outdoor Color Black, White, Grey
High Light : fiber distribution box, fibre optic termination box
minimum order :
1000 pieces
Quantity :
SC 12 Port Optical Fiber Distribution Box with ABS Plastic Housing
Wall mount fiber termination box specification:
Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of optical
fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch
cores or pigtails are connected.
Features:
The box is made of SMC, and lifetime is more than 20 years.
It also can be used under -30°c.
Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 12 pcs SC-SC, or SC-FC adapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
The box is made of SMC, and lifetime is more than 20 years.
It also can be used under -30°c.
Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 12 pcs SC-SC, or SC-FC adapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks
Operation conditions for wall mounted fibre termination box:
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
Wall mount fiber termination box specification:
| Type | FDB-04 | FDB-08 | FDB-16 | FDB-24 | FDB-32 | FDB-48 |
| Size(mm) | 210*140*40 | 205*215*55 | 260*320*90 | 295*335*115 | 350*340*120 | 350*340*120 |
| Cable ports | 4 | 8 | 16 | 24 | 32 | 48 |
| Weight(kg) | 0.35 | 0.75 | 1.4 | 2.1 | 3.5 | 5 |
| Model | TTI/FB-104C |
| Size(mm): L*W*H | 210*140*20 |
| Cable ports | 2 inlet, 16 outlet |
| Max capacity of splice | 16 Core(Single) |
| Net Weight (kg) | 0.45 |
| Outer carton weight (kg) | 15.6 |
| Package | 20PCS/CTN |

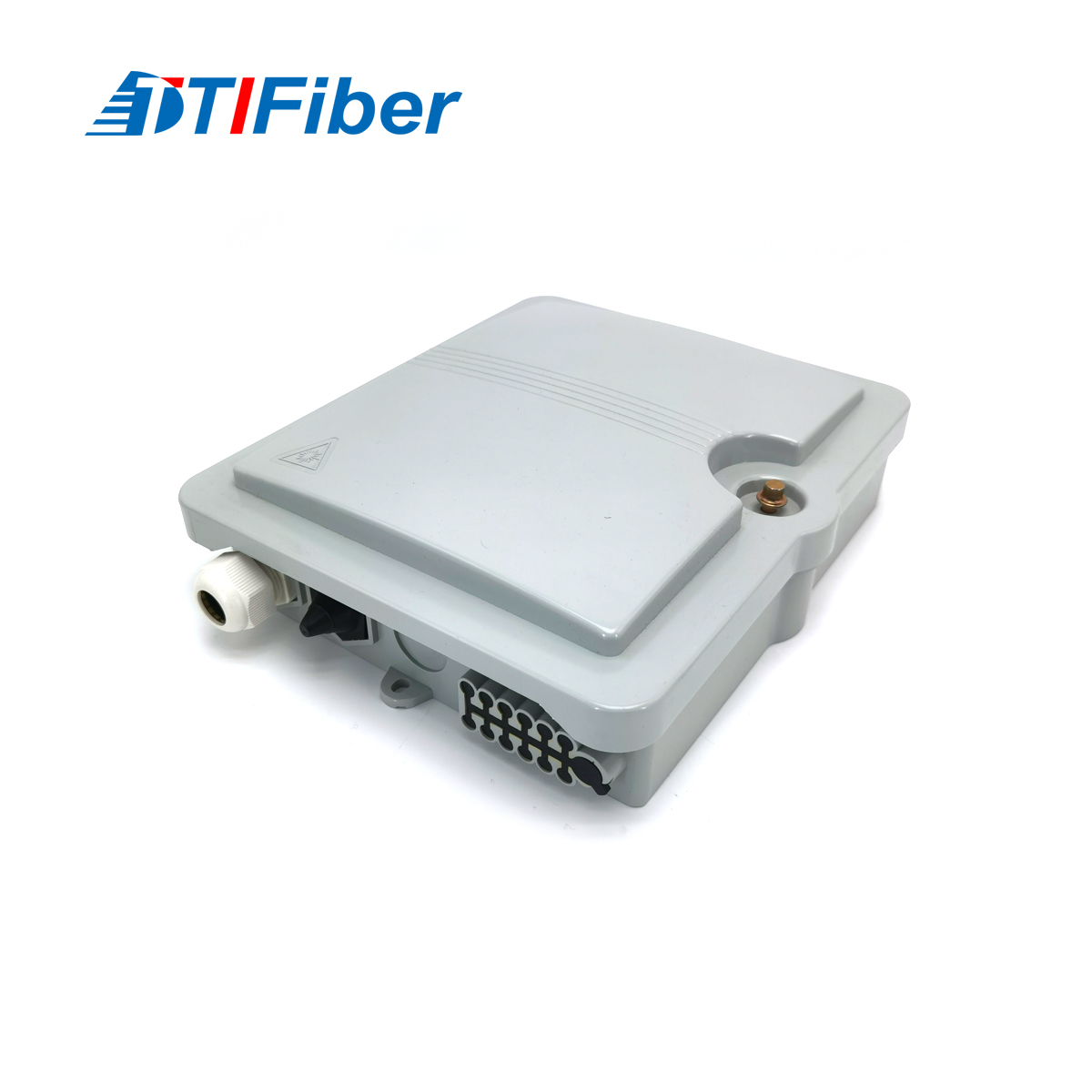

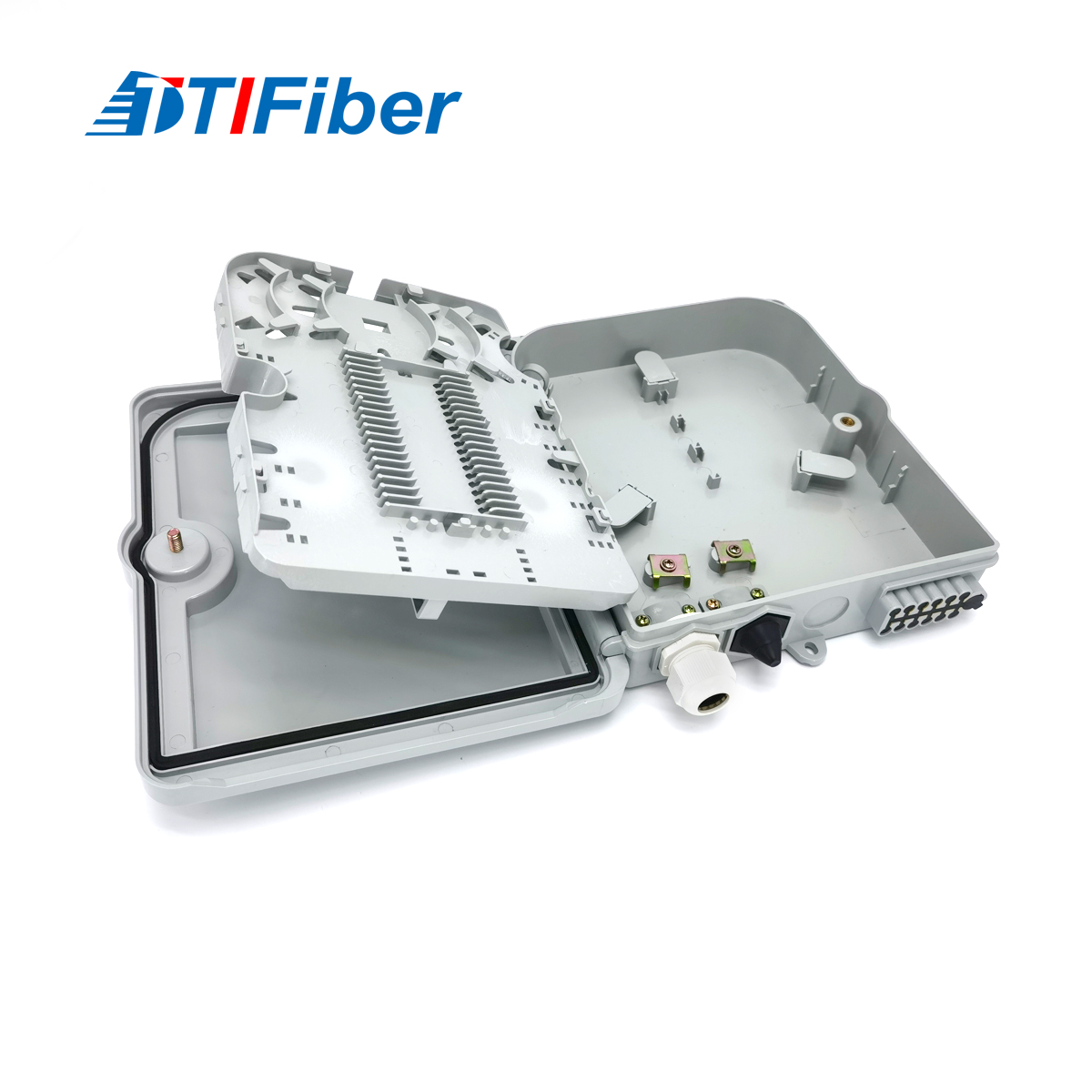

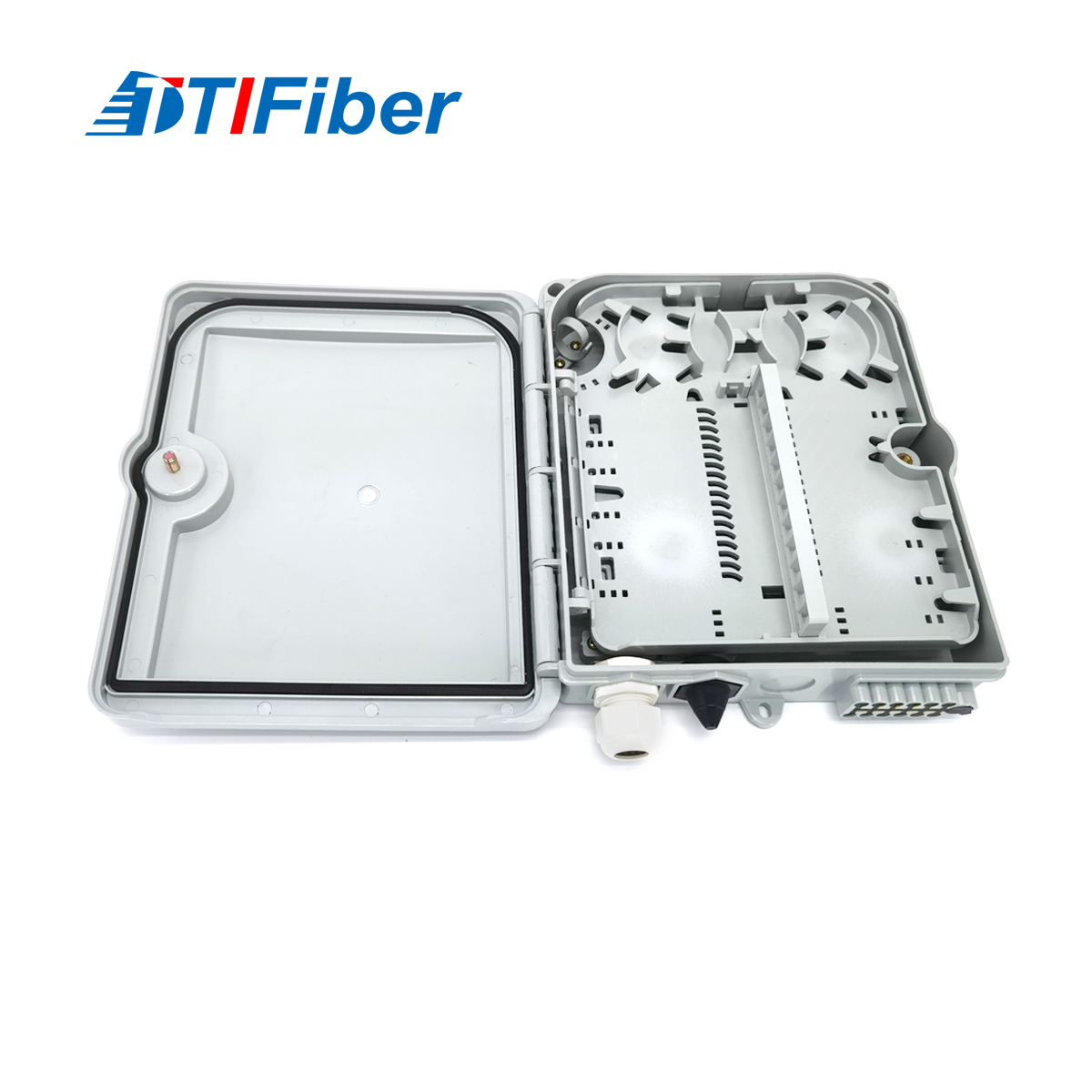

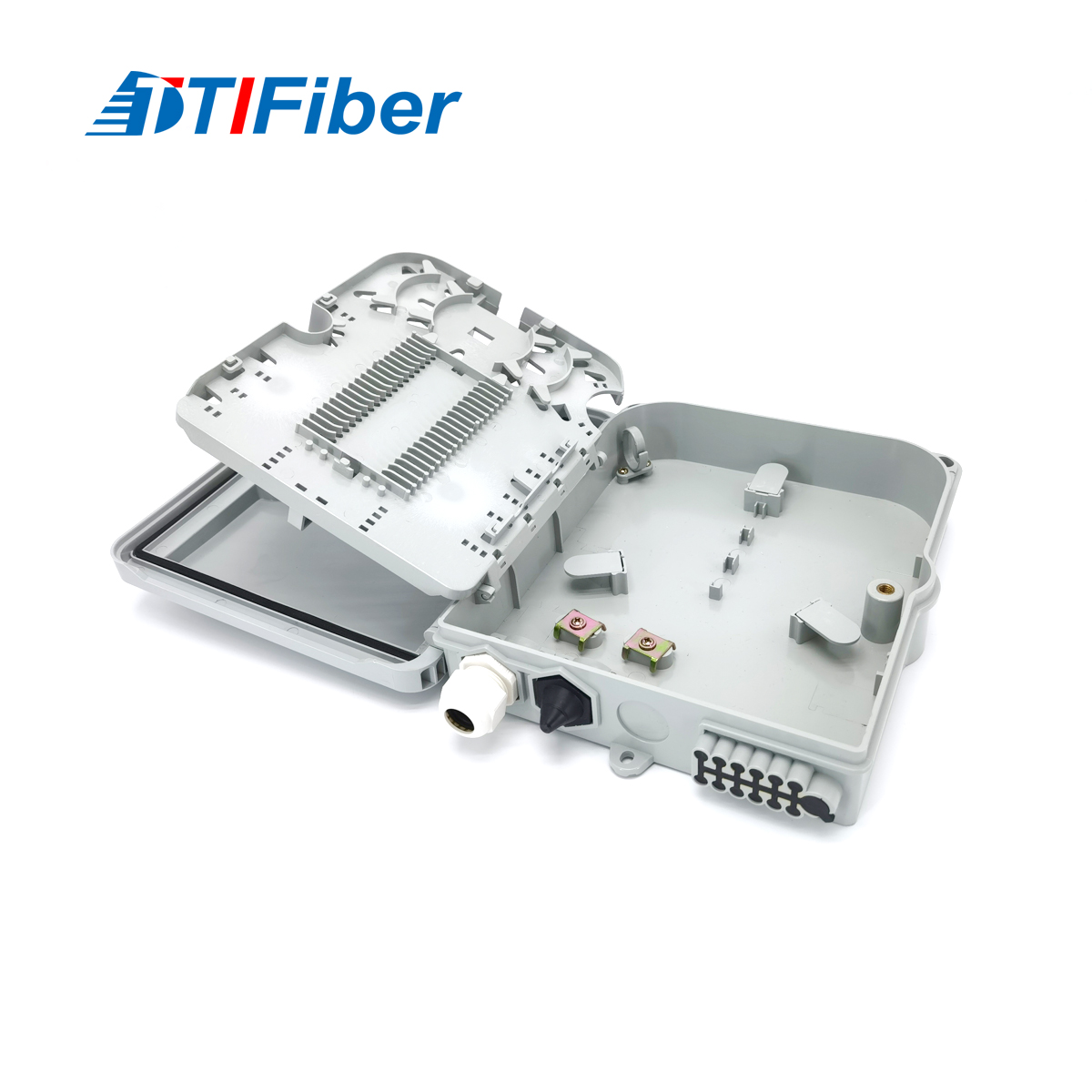

12 Port Optical Fiber Distribution Box Product Picture:
