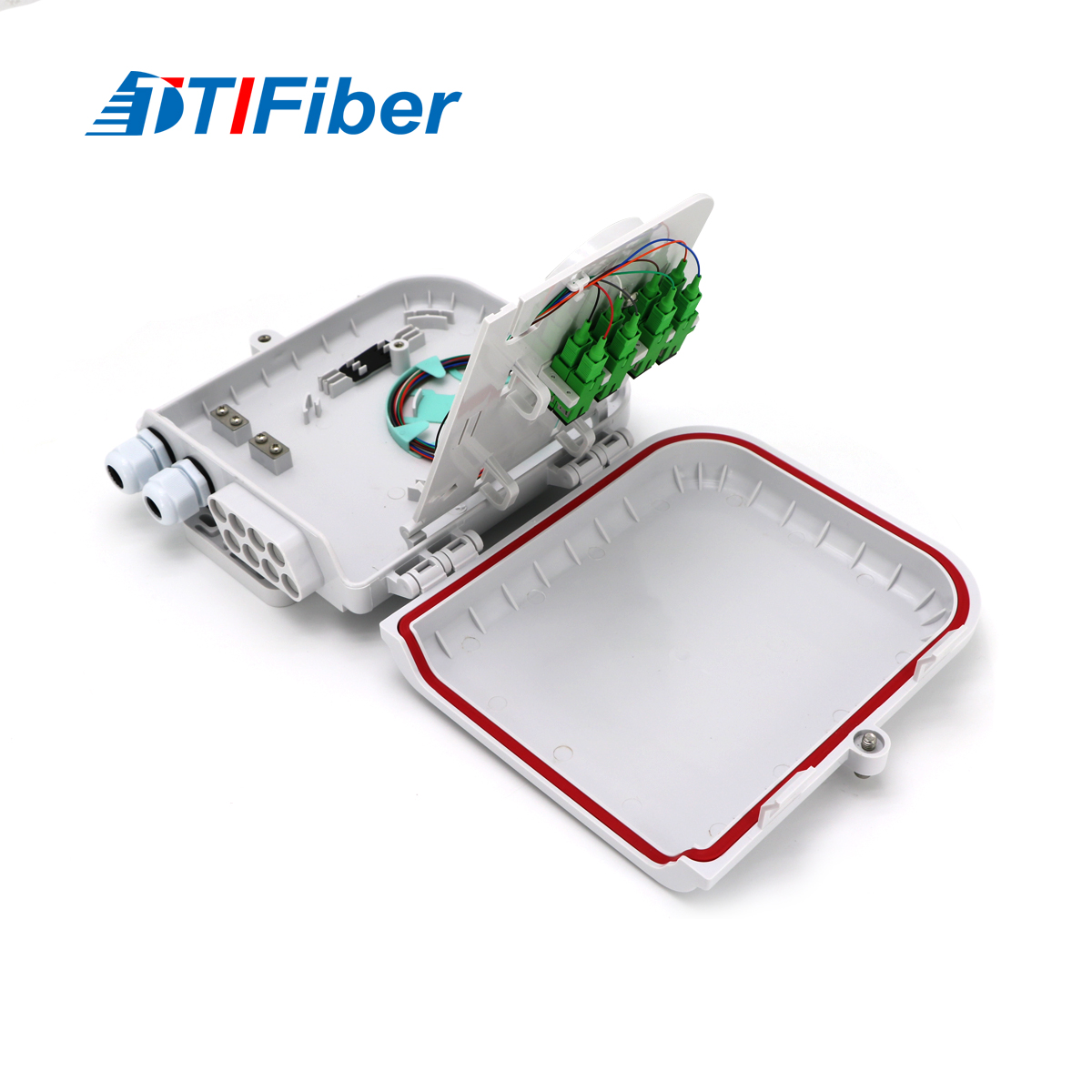

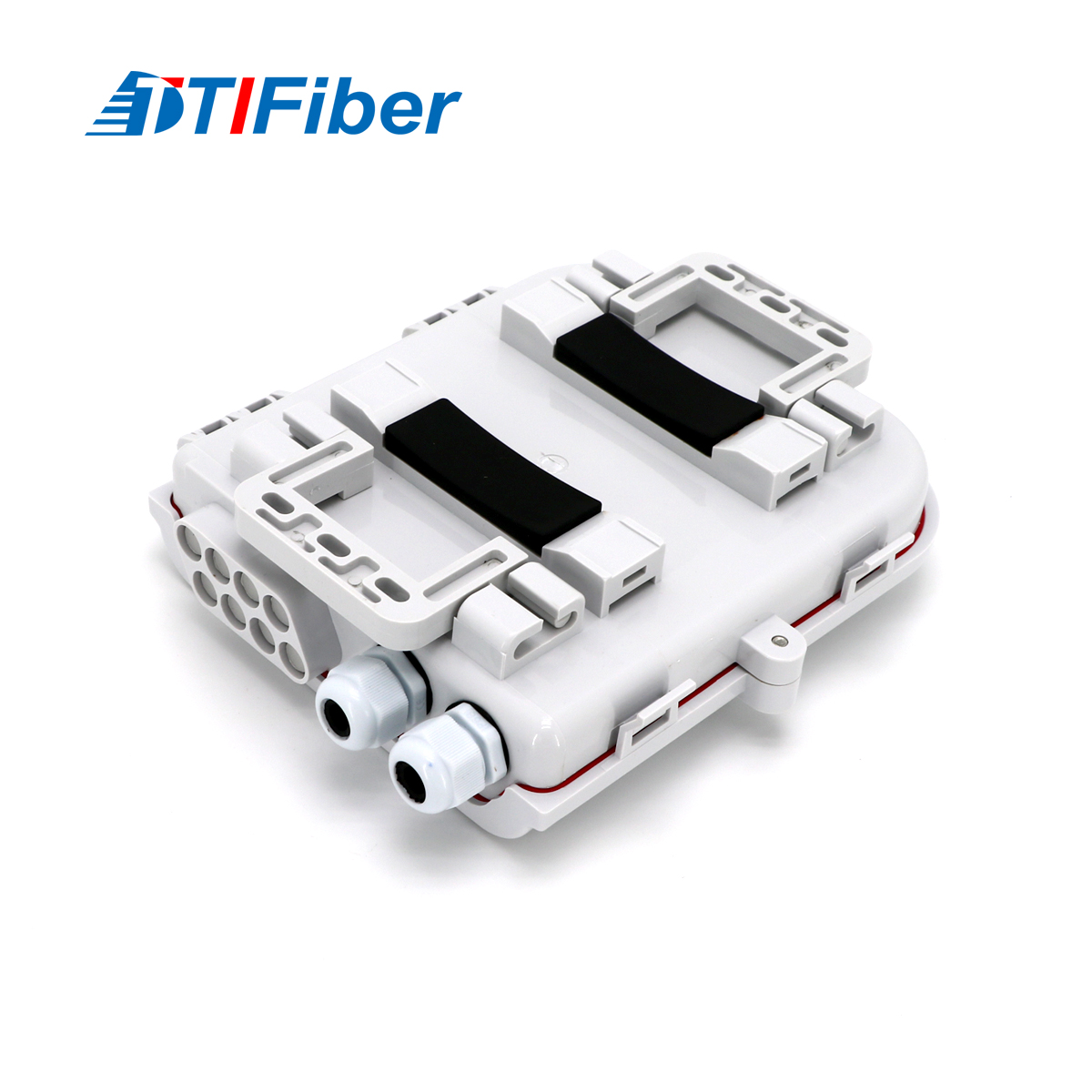

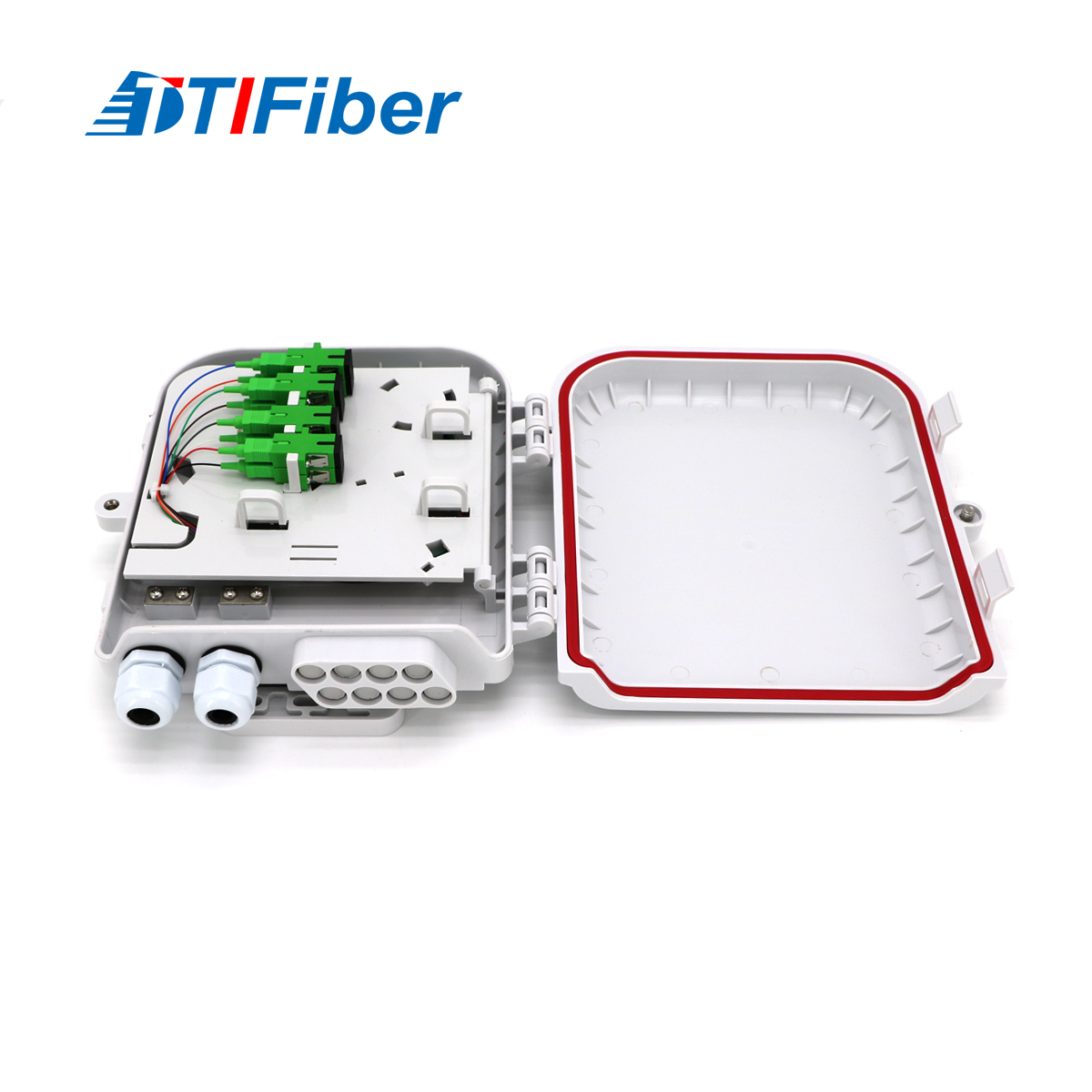

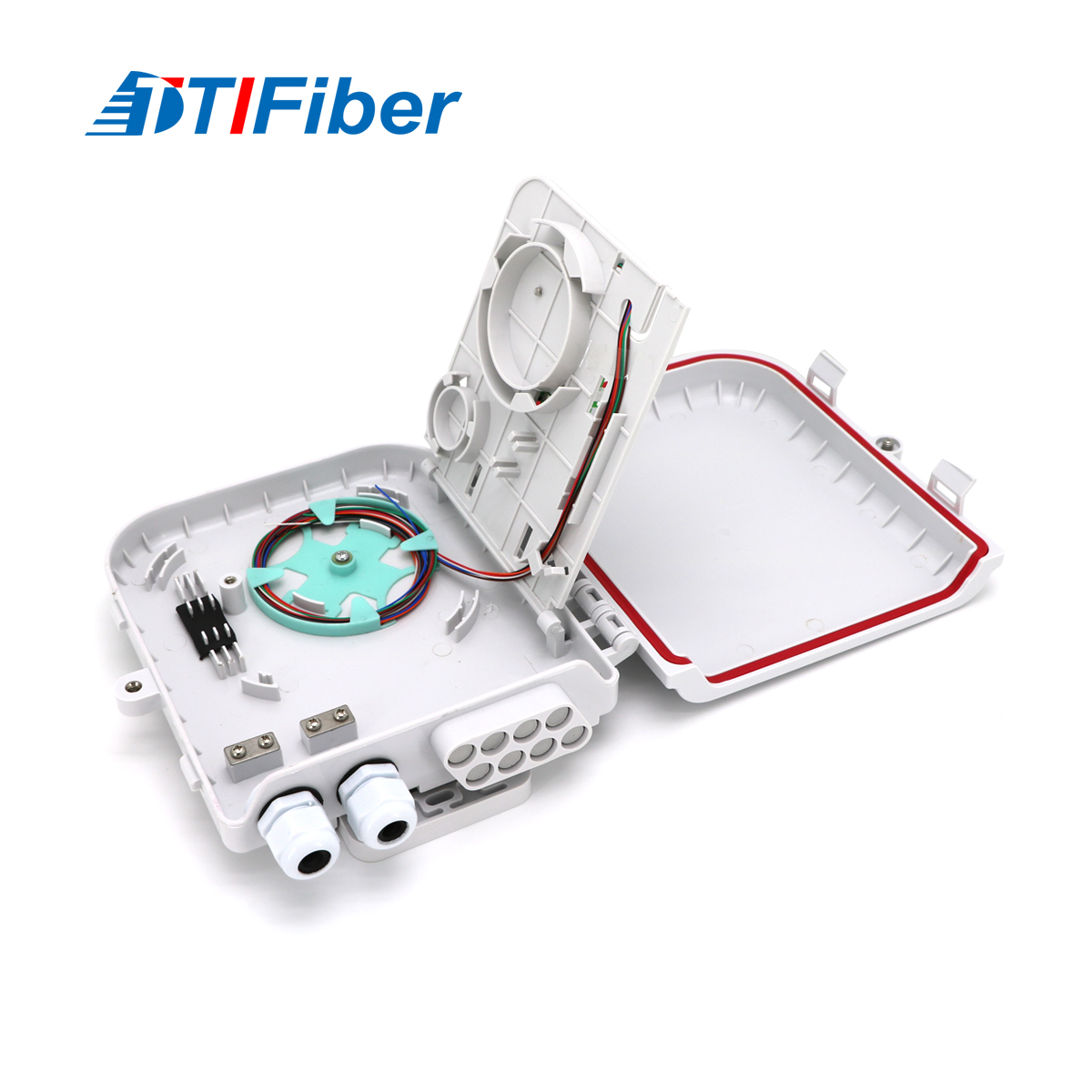

Networks FTTH Distribution Box SC 8 Port Waterproof , Fiber Termination Box

SC 8 Port Waterproof Fiber Optic Distribution Box for FTTH Networks

Description:
Fiber optic terminal box is available for the distribution and terminal connection for various kinds of
optical fiber system, especially suitable for mini-network terminal distribution, in which the optical
cables, patch cores or pigtails are connected.

FTTH Fiber Termination Box Features:
The box is made of PC+ABS, and lifetime is more than 20 years.
Bi-layer structure design. The upper layer is for optical splitter, the other layer is for fiber splicing.
Easy to operate. Usually installed as wall mounted in the building or at the green belt.
It can accommodate 8 pcs SC-SC, or SC-FC adapters.
It can be designed to client requirements.
It meets YD/T988-2007 standards.
It also can be used under -40°c.

FTTH Termination Box Application:
FTTH access network
CATV Networks
Telecommunication Networks
Data communications Networks

Operation conditions:
Temperatures:-40℃ -- 60℃
Humidity:93% at 40℃
Air Pressure:62kPa – 101kPa
