Single Mode Fiber Splitter 1 X 4 PLC Fibre Optic Splitter With G652D G657A1 G657A2 Fiber Optic Cable
Ferrule End-face : PC, UPC,APC
Fiber Type : G652D G657A
Fiber Mode : Singlmode
Package : Steel Tube, ABS
Structure : 1*2/1*4/1*8/1*16/1*32/1*64
High Light : fiber optic coupler, fiber optic plc splitter
Single Mode Fiber Splitter 1 X 4 PLC Fibre Optic Splitter With G652D G657A1 G657A2 Fiber Optic Cable
1x4 PLC Splitter with G652D G657A1 G657A2 Fiber Optic Cable
Fiber Optic Plc Splitter Description:
1*4 PLC Fiber Optic Splitter, is based on a quartz substrate of integrated waveguide optical power distribution
device, the same as coaxial cable transmission system, The optical network system also needs to be an optical
signal coupled to the branch distribution, which requires the fiber optic splitter
Fiber Optic Cable Splitter Feature:
Good high temperature low temperature performance
Convenient engineering applications
Fine polarization
Wide scope wavelength
Tight and fine structure
Excellent parameters on IL & RL
High reliability and directivity
Non-sensitive wavelength
Fiber Optic G652d Cable Application:
CATV network
LAN, WAN and MAN
Testing equipments
Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
Specification:
Table 1 – 1×N PLC Splitter
| Parameters/PLC Fibre Optic Splitter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Splitter
| Parameters/PLC Fibre Optic Splitter | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

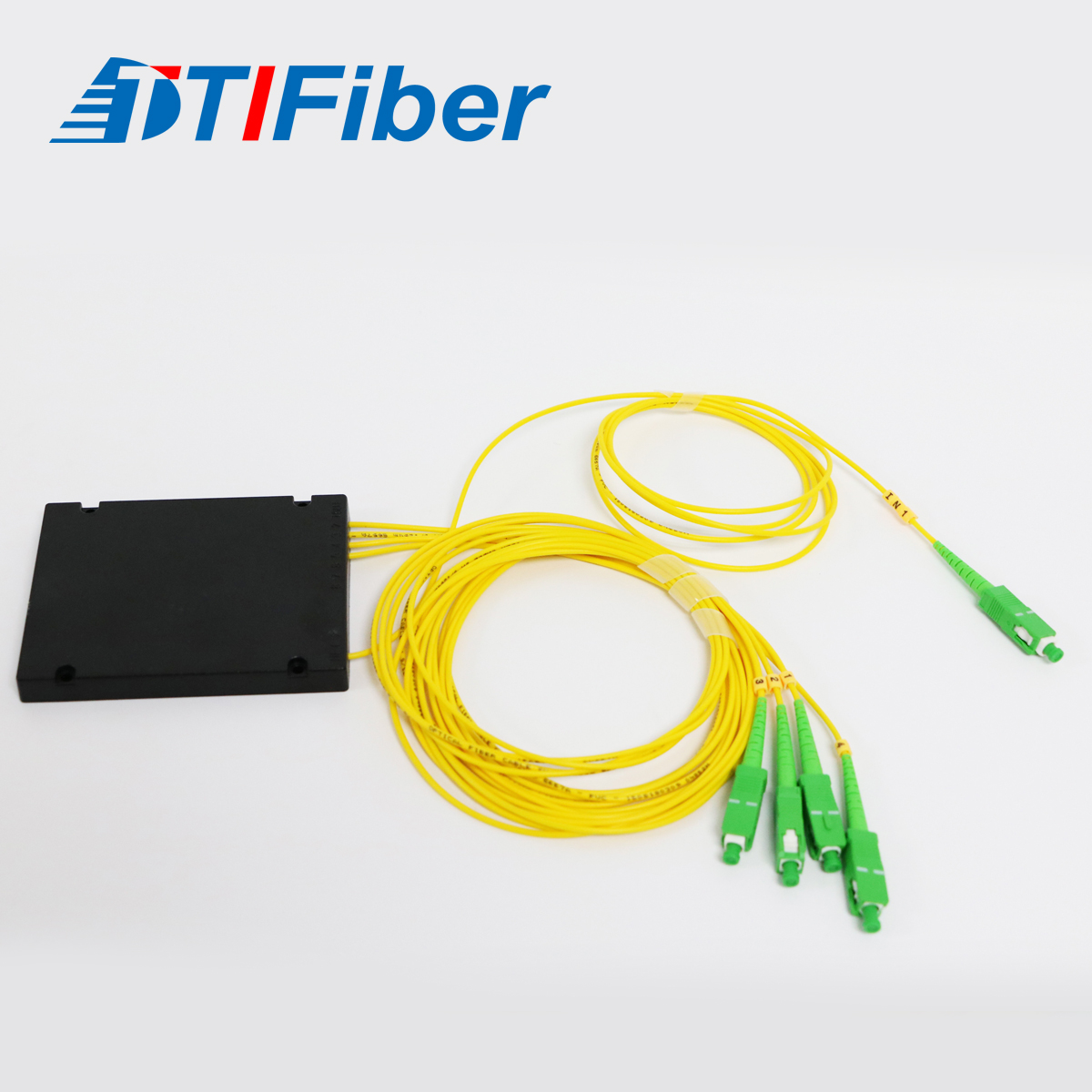

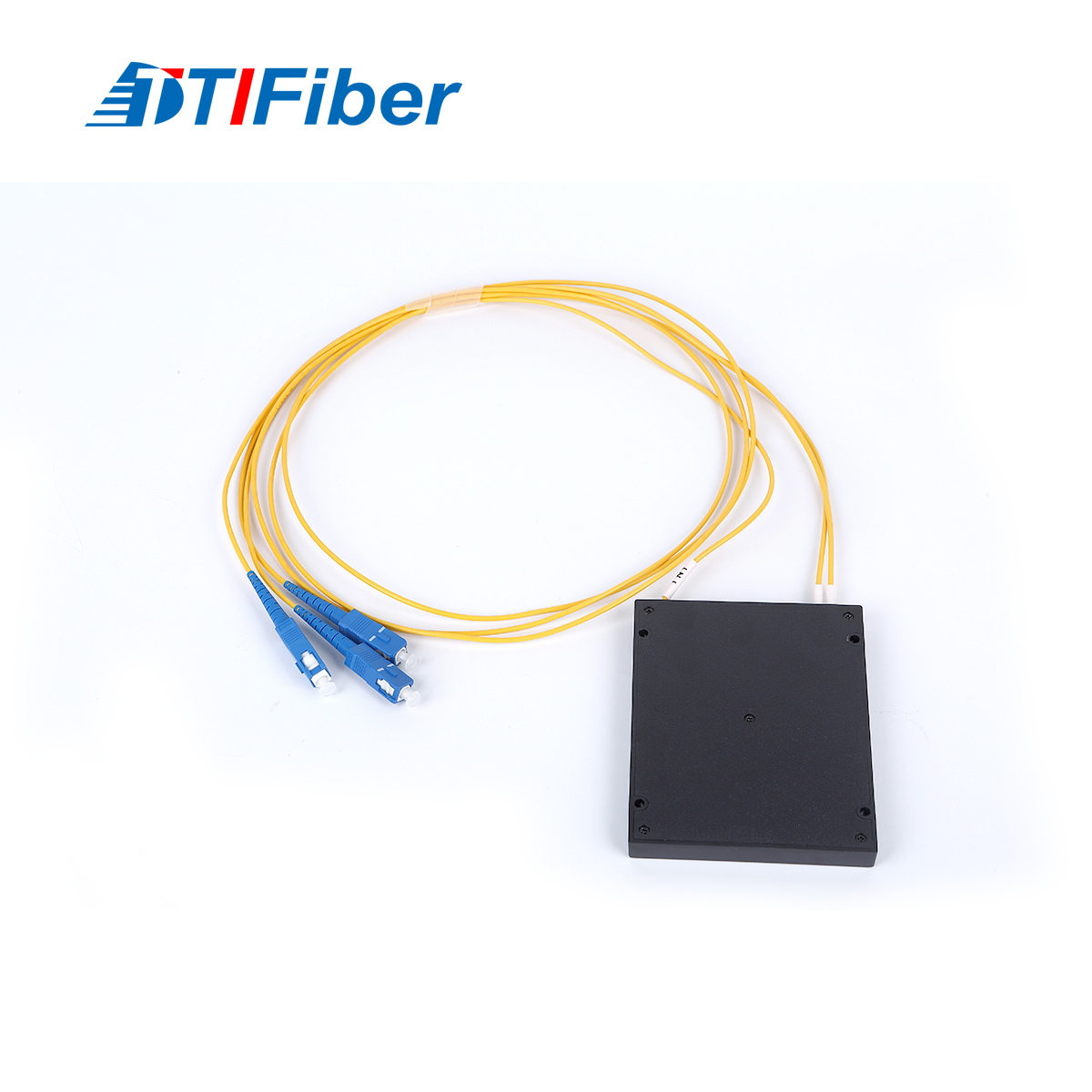

G652D G657A1 G657A2 PLC Fibre Optic Splitter Product Picture:
