FTTH Optical Fiber 1x2 1x4 1x8 1x16 1x32 PLC Splitter ABS Box Type
Ferrule End-face : PC, UPC,APC
Fiber Type : G652D G657A1 G657A2
Fiber Mode : SM MM
Package : Steel Tube, ABS Black Box
Structure : 1*2/1*4/1*8/1*16/1*32/1*64
High Light : FTTH Fiber Optical Splitter, 1x32 Fiber Optical Splitter, SC Connectors PLC Optical Splitter
FTTH Fiber Optical Splitter 1x32 PLC Type Optic Splitter with SC Connectors
FTTH Optical Fiber 1x2 1x4 1x8 1x16 1x32 PLC Splitter ABS Box Type
Description:
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing.
In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many
signals into a single signal.
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using
silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and
optical cable TV System. PLC Splitter is responsible to distribute optical signals from Central Office (CO) to multiple
premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications.
Plc Connectors Feature:
Low insertion loss High Return Loss
Low polarization dependent loss
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Steel tube-compact size
PLC Splitter Application:
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
Specification:
Table 1 – 1×N PLC Fiber Splitter
| Parameters/PLC Splitter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Table 2 – 2×N PLC Fiber Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
Notes:
Specified without connectors.
Add an additional 0.15dB loss per connector

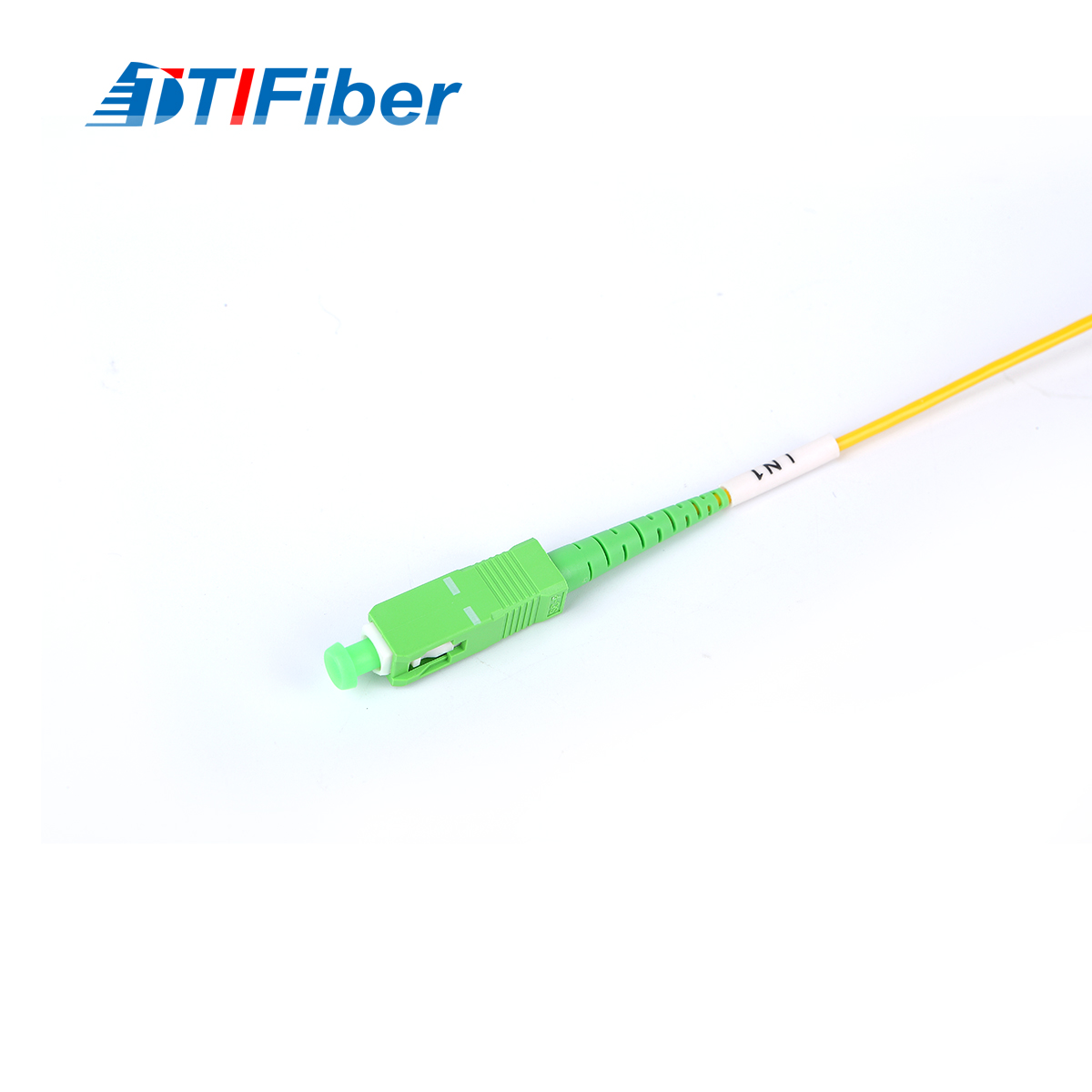

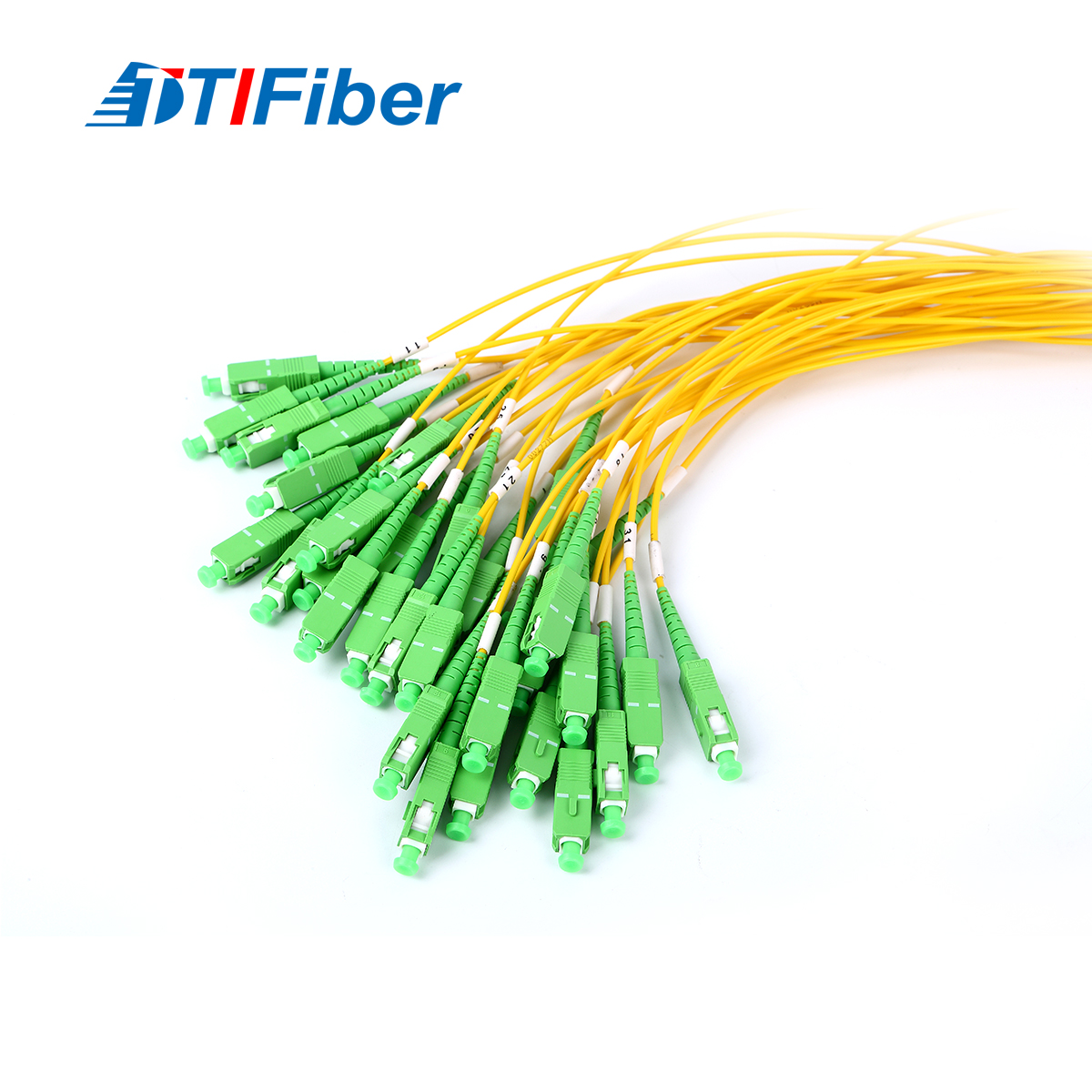

PLC Splitter Product Picture:
