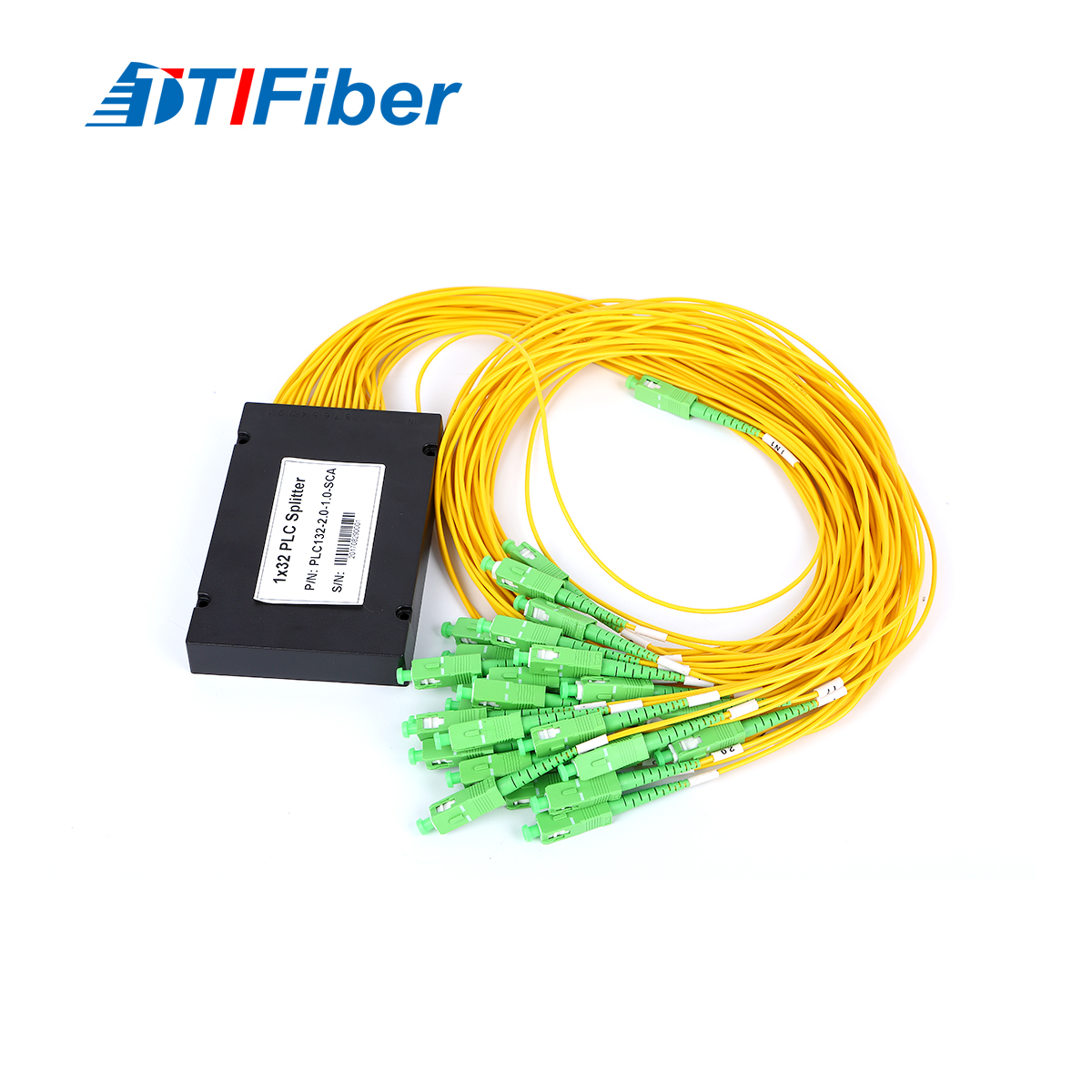

CATV optical fiber splitter and taps from Chinese supplier
Ferrule End-face : PC, UPC,APC
Fiber Type : G652D G657A1 G657A2
Fiber Mode : SM MM
Package : Steel Tube, ABS Black Box
Structure : 1*2/1*4/1*8/1*16/1*32/1*64
High Light : FTTH Fiber Optical Splitter, 1x32 Fiber Optical Splitter, SC Connectors PLC Optical Splitter
CATVFiber Optic Splitter and taps from Chinese supplier
FBT Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
Feature
Low Excess loss
Various Coupling Ratio
Environment stable
Single mode and multi mode available
Catv Splitter Application
Long-haul Telecommunications
CATV Systems & Fiber Optic Sensors
Fiber Optic communication system
Local Area Network
Specification
Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
Operating Wavelength (nm) | 1310/1490/1550 | ||||
Fiber Type | G657A1 or customer specified | ||||
Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
Temperature Stability (-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
Operating Temperature (℃) | -40~85 | ||||
Storage Temperature (℃) | -40~85 | ||||
Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 |
Module Dimension (mm) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 |
Mini-Module Dimension (mm) | 50×7×4 | 50×7×4 | 50×7×4 | 60×12×4 | 80×20×6 |
