72 / 96 Core Fiber Optic Patch Panel with Singlemode Fiber Optic Pigtails
Model Fixed : Type, Slidable Type
Connector : SC LC FC ST E-2000 MPO
Material : Cold Rolled Steel, AL
Color : Black, White, Grey
Port : 72/96 Port
Height : 4U
Thickness : 0.8mm,1.0mm, 1.2mm
High Light : rack mount fiber patch panel, fiber optics patch panel
ODF Fiber Optic Patch Panel with 12 core Fiber Splice Tray
72 / 96 Core Fiber Optic Patch Panel with Singlemode Fiber Optic Pigtails
Description:
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box is of unique structure, reasonable layout, and has adequate room for operation.
The box are Rack Mounted, which is convenient to install and dismantle.
The splice tray could be piled one upon another, flexible to turn.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Feature:
19 inch standard structure, Rack Mounted type
Several adapters can be installed: FC,SC,ST, LC
Suitable for ribbon and bunchy fiber cable
Capacity: 12, 24, 36, 48, 72, 96, 144cores
Application:
Fiber optic patch panel Specification:
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

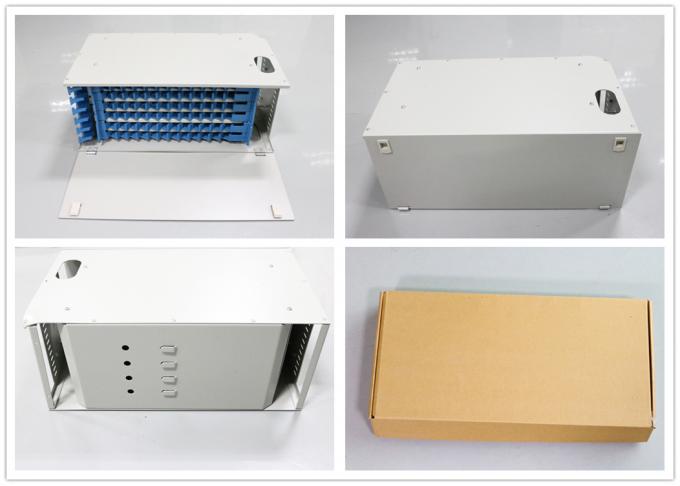

Product Picture:
