Model No: 2U Fiber Optic Patch Panel
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
Name : Strong Fiber Optical Patch Panel Box
Fiber Connector : LC / SC /ST / FC / MPO
Size : 2U
Material : Cold Rolled Steel OR Aluminum
Box Structure : Pulling Type
Port : 122 Core
Thichness : 0.9MM / 1.0MM / 1.2MM
High Light : 2U Fiber Optical Patch Panel, ROHS Fiber Optical Patch Panel, 2U optical patch panel
Fiber Connector : LC / SC /ST / FC / MPO
Size : 2U
Material : Cold Rolled Steel OR Aluminum
Box Structure : Pulling Type
Port : 122 Core
Thichness : 0.9MM / 1.0MM / 1.2MM
High Light : 2U Fiber Optical Patch Panel, ROHS Fiber Optical Patch Panel, 2U optical patch panel
minimum order :
1000 pieces
Quantity :
LC Type 2U Fiber Optical Patch Panel With Cold Rolled Steel Box
LC Type Fiber Otptic Patch Panel With Cold Rolled Steel Box And Strong Solide Phisics Pulling.Description:
Fiber patch panels can be used for indoor or outdoor application.
The height of patch panel can be 1u, 2u, 3u, 4u, 6u and so on.
The opening of the optical fiber patch panels can be slidable or fixed or revolving.
Rack mount panels is usually 19"or 23"universal width.
Wall mount patch panel is more customized, it can be any structure and dimension.
Fiber patch panels can be used for indoor or outdoor application.
The height of patch panel can be 1u, 2u, 3u, 4u, 6u and so on.
The opening of the optical fiber patch panels can be slidable or fixed or revolving.
Rack mount panels is usually 19"or 23"universal width.
Wall mount patch panel is more customized, it can be any structure and dimension.
Feature:
Cold-roll steel, electrostatic painting ABS plastic tray inside
12~24cores per trayDifferent adapter plate available: FC, SC, LC, ST
Suitable for 19’’ standard optic distribution cabinets
Cable entry ports suitable for single fiber, bundle and ribbon fiber cables
Reasonable design ensures the cables are in good order
Rack mounted type, can be slide out, but no sliding rails
Colors: white, black, grey, color painting optional
Capacity: 12, 24, 48, 72, 96, 144cores or customized.
Cold-roll steel, electrostatic painting ABS plastic tray inside
12~24cores per trayDifferent adapter plate available: FC, SC, LC, ST
Suitable for 19’’ standard optic distribution cabinets
Cable entry ports suitable for single fiber, bundle and ribbon fiber cables
Reasonable design ensures the cables are in good order
Rack mounted type, can be slide out, but no sliding rails
Colors: white, black, grey, color painting optional
Capacity: 12, 24, 48, 72, 96, 144cores or customized.
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN Network
CATV Network
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/ WAN Network
CATV Network
Specification:Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Lc Fiber Patch Panel Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

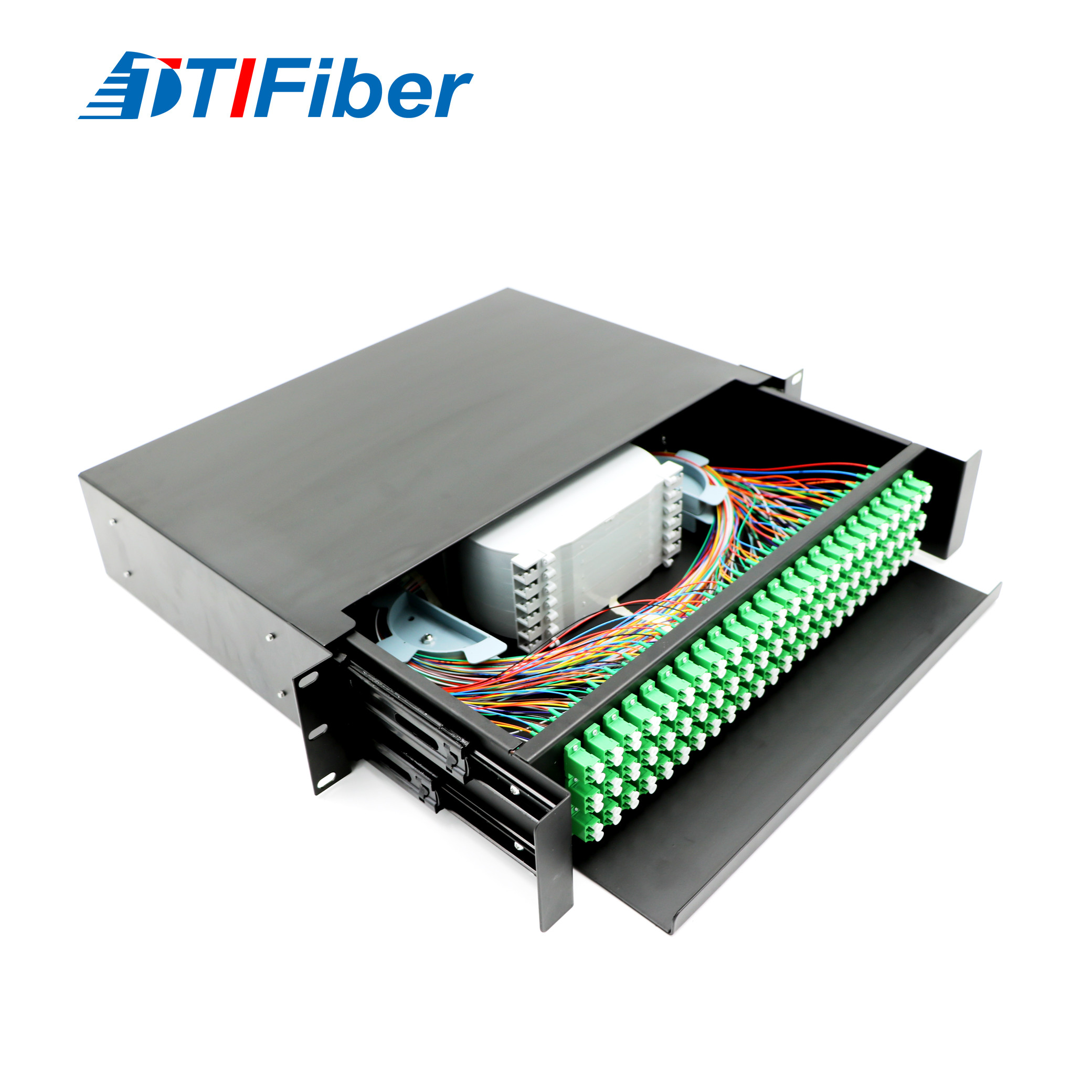

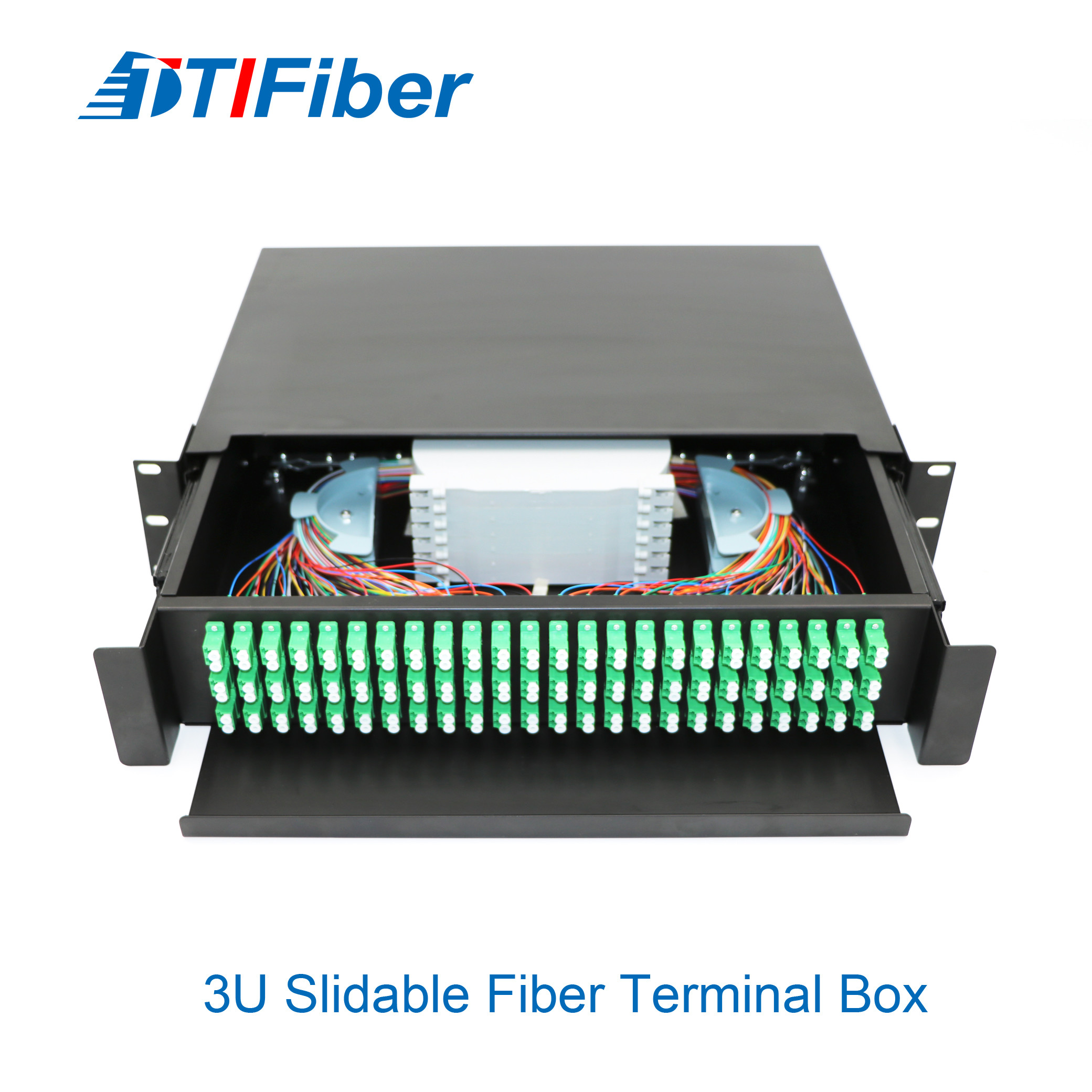

optical fiber patch panel Products photos
