Fixed 19”Fiber Optic Patch Panel ODF Box for Rack Mount Cabinet
Model : Fixed Type
Connector : SC LC FC ST
Material : Cold Rolled Steel, AL
Color : Black, White, Grey
Port : 6, 12, 24, 48, 72, 96, 144
Height : 1U, 2U, 3U, 4U, 8U
Thickness : 0.8mm,1.0mm, 1.2mm
High Light : fiber optics patch panel, fiber termination panel
19” Standard Structure Fiber Optic ODF Box for Rack Mount Cabinet
Odf Box for Fiber Optic Description:
19 inches;1RU ,2RU, 4RU standard installation.
Several capacity: 12, 24, 36, 48, 72, 96, splices.
Several adapters can be installed: FC,SC,ST, DLC
Suitable for ribbon and bunchy fiber cable.
Fiber Optic Patch Panel Feature:
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation.
The box has a pothook, which is convenient to install and dismantle.
The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers
should be guaranteed to be over 37.5mm in the splice tray.
The box is of unique structure, reasonable layout, and has adequate room for operation.
Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly
to make sure the cables are clamp tightly.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Patch Panel Rack Mount Main technical Parameter:
Environmental temperature: -25 - 65°C.
Relative humidity:≤85%((when the temperature is below 30°C)).
Atmosphere pressure:70~106Kpa.
Insulating resistance:≥2×104 MΩ/500VDC.
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
The fiber optic splice tray could be piled one upon another, flexible to turn.
The box are Rack Mounted, which is convenient to install and dismantle.
The indoor type is of excellent seal performance, which could prevent water from entering effectively.
Fiber Optic Odf Mount Specification:
Fixed Type:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |
Rack Mount Odf Distribution Box Slidable Type:
| Type | OTB-RS-1UA | OTB-RS-2UA | OTB-RS-1UB | OTB-RS-2UB | OTB-RS-1U-3MPO | OTB-RW-1U |
| Size(mm) | 430*300*1U | 430*250*2U | 482*217*1U | 482*217*2U | 482*296*1U | 430*300*1U |
| Max capacity(core) | 24 | 48 | 24 | 48 | 36 | 24 |
| Weight(kg) | 3.5 | 4.0 | 3.5 | 4.0 | 3.0 | 4.7 |

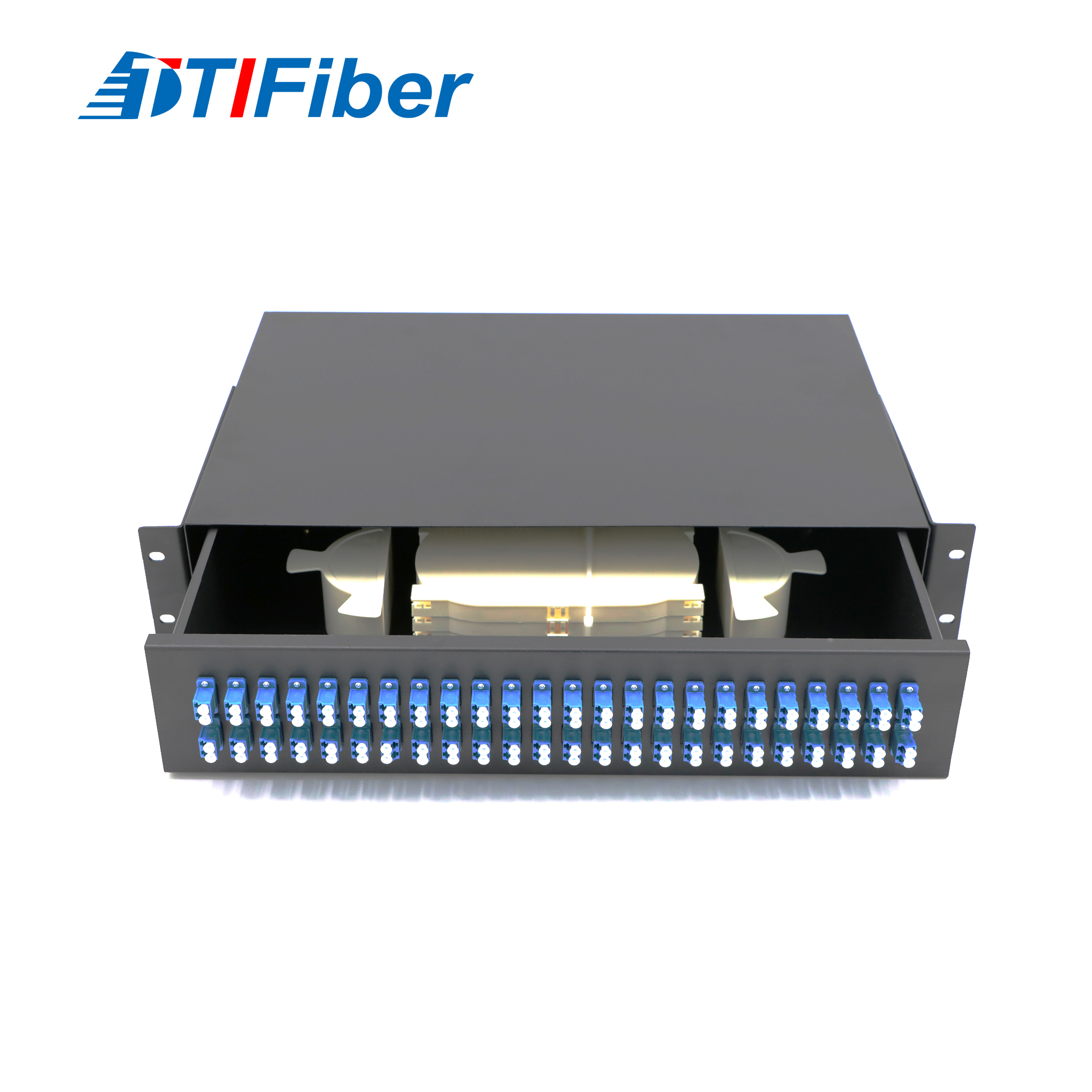

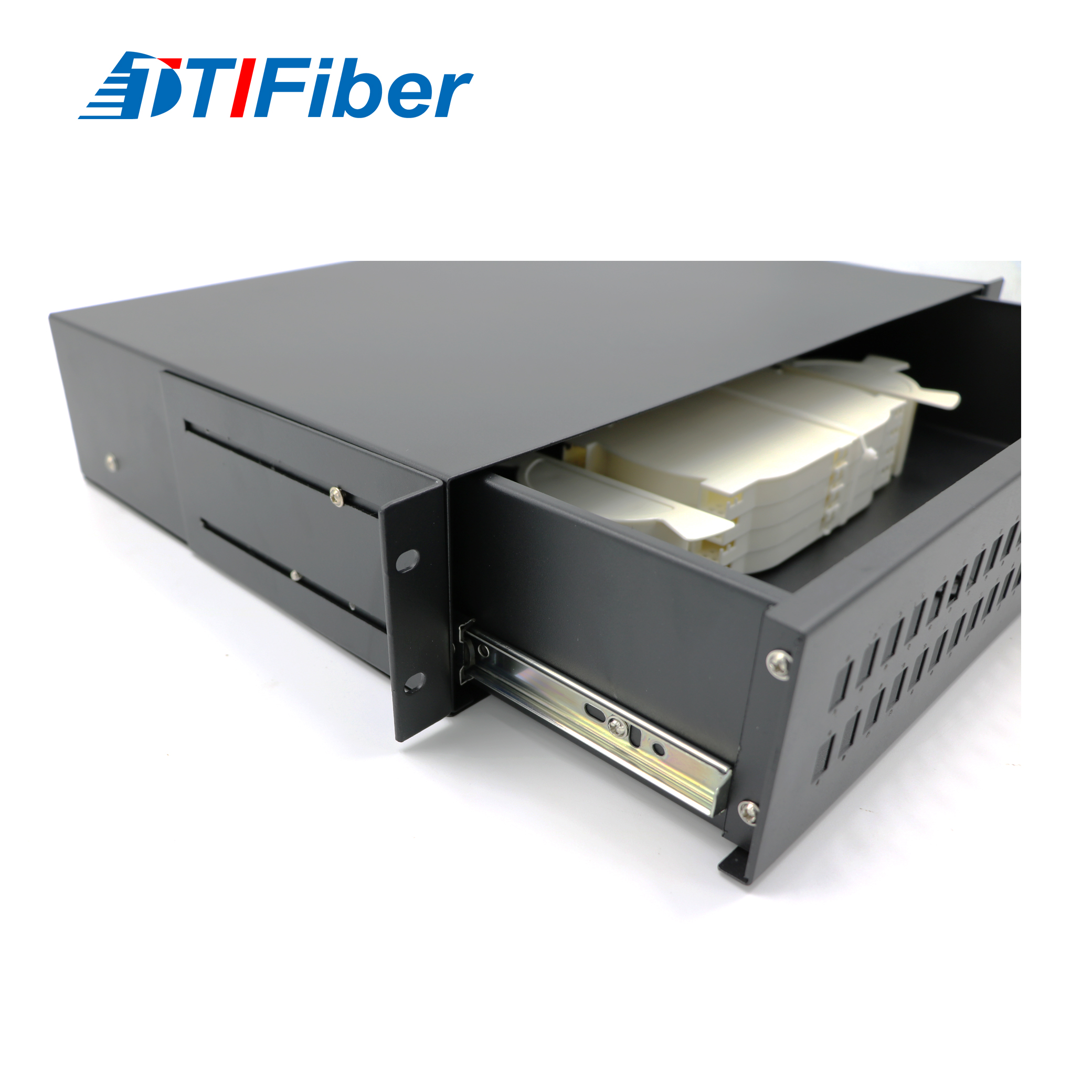

Fiber Optic ODF Box Product Picture:
