G652d G657A
Fiber Optic Pigtail
G652d G657A
G652d G657A
G652d G657A PVC LSZH Fiber Pigtail
G652d G657A PVC LSZH Fiber Pigtail
Model No: LC SM DX

Fiber Optic Pigtail SC FC LC APC UPC Sm 1m 1.5m 0.9mm G652d G657A PVC LSZH

Jacket : PVC/LSZH, PVC or LSZH

Length : 1M/2M/3M So on

Connector Type : SC/LC/ST/FC

Insertion loss : ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db

Connector : FC, SC, SC/APC (LC, LC, FC for choice)

Fiber type : SM 9/125 G652D, OS1, 9/125 tight buffered fiber Single Mode simplex, G652D/G657A1/G657A2 etc., G657A1 etc.

Cable diameter : 0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm

Jacket material : Customize, can be customized, 1M; 2M; 4M etc., 10Meter
minimum order :
1000
Quantity :
add to cart
Contact Now

Fiber Optic Pigtail SC FC LC APC UPC Sm 9/125 1m 1.5m 0.9mm G652d G657A PVC LSZH Fiber Pigtail

Fc Pigtail Quick Detail:

  1. Cable jacket: PVC, LSZH, OFNP, OFNR
  2. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
  3. Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
  4. Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
  5. Cable length: 1m, 2m, 3m, 5m....customized
  6. Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized

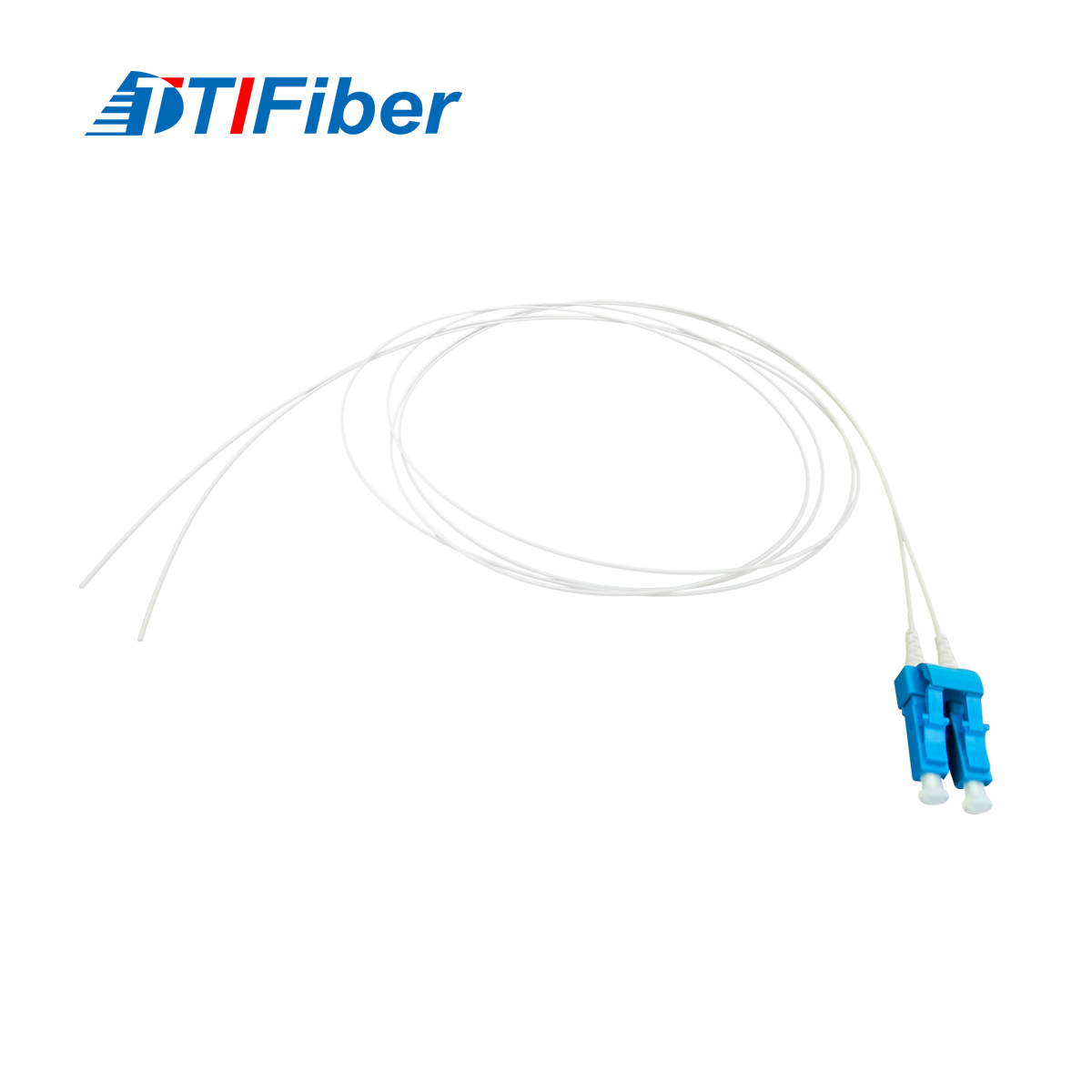

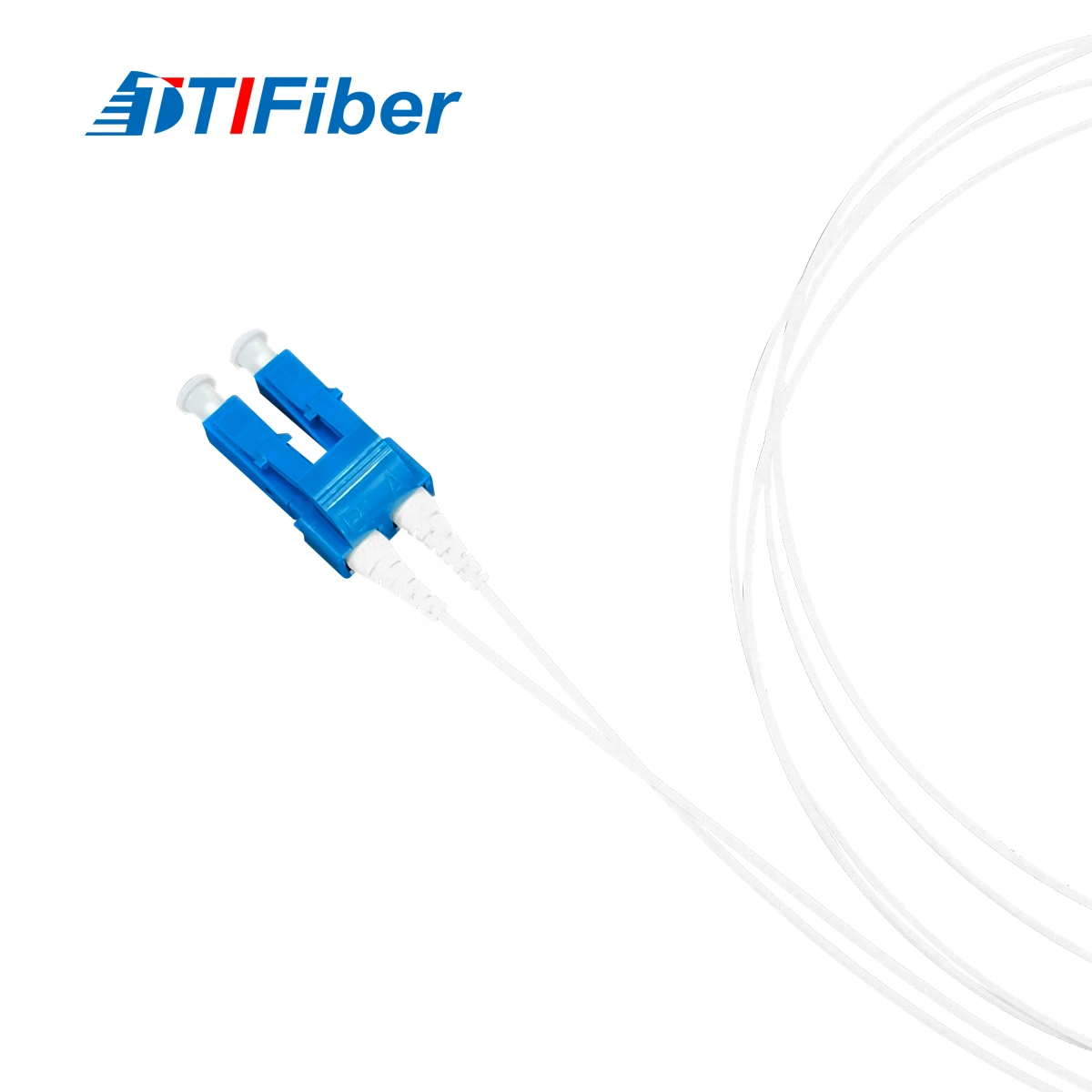

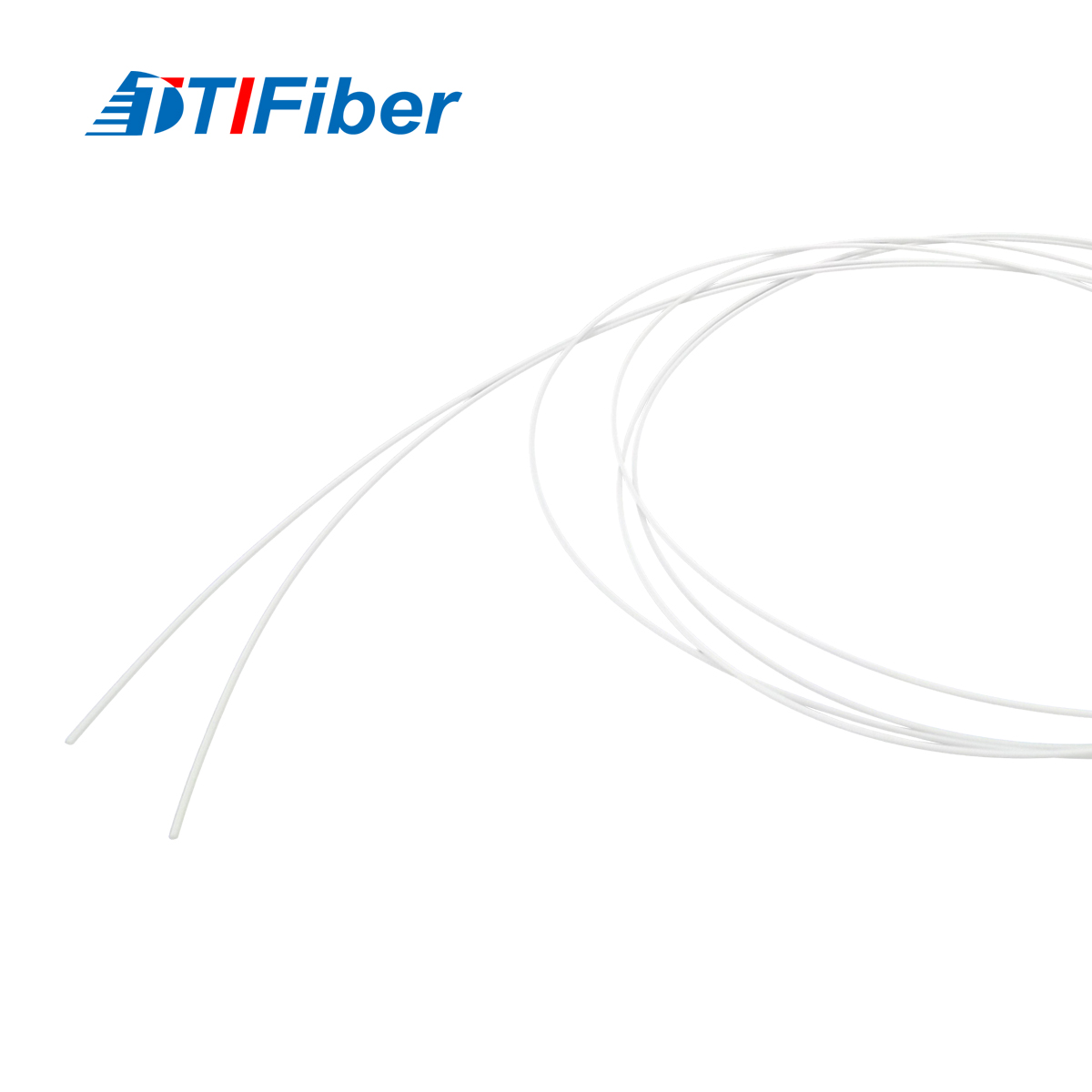

Fiber Pigtail Product Pictures:

G652d G657A PVC LSZH Fiber PigtailG652d G657A PVC LSZH Fiber PigtailG652d G657A PVC LSZH Fiber Pigtail

    Specification:

    ParameterSingle ModeMulti Mode
    BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO
    Ferrule End-facePCUPCAPCUPC
    Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
    Return Loss≥50dB≥55dB≥60dB≥35dB
    Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
    Suitable Fiber9/125um50/125um,62.5/125um
    End-face GeometryRadius of Curvature7~25mm5~12mmN/A
    Fiber Protrusion≤50nm≤100nmN/A
    Fiber Under Cut≤100nm≤100nmN/A
    Apex offset≤50um
    MechanicalExchangeability≤0.2dB
    Salt Spray≤0.1dB
    Drop≤0.2dB(1.5M, 5 drops)
    VibrationIL ≤0.2dB(550Hz, 1.5mm)
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

    Description:

    Fiber Optic Pigtail is with one piece construction and pulls proof design. Low cost but high performance, which
    makes it one of the most popular cables.

    Features:

    1. 100% test before shipment
    2. Low insertion loss and high return loss
    3. Custom Configurations Available at No Extra Charge
    4. Available in fiber bunch, ribbon fan-out, pigtail available
    5. Serialized & Individual Test Records
    6. Meets ROHS and Bell core GR 326-core standards

    Applications:

    1. FTTH application
    2. Premise installations
    3. Data processing networks
    4. Wide Area Networks (WANs)
    5. Industrial ,mechanical and military

    Ordering Information:

    Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO
    Step 2: Ferrule End-face: PC, UPC or APC
    Step 3: Fiber Type: Single Mode(SM) or Multimode
    Step 4: Cable Core: Simplex or Duplex
    Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm
    Step 6: Cable Length: 1, 2, 3 meter or customized
    Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…
    Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...

    Shipping:

    1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
    2. Airport to Airport: by air
    3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

    Our service:

    1. Standard and customized OEM products from small to large quantity are welcome.
    2. Compliance with global environmental industry with RoHS and SGS standards.
    3. All products are 100% fully tested by our technical expertise.
    4. Our patch cord warranty period is one year.
