Model No: LC Pigtail Fiber Optic

PVC LSZH LC Pigtail Fiber Optic 1~ 144 core for Data processing networks

High Light : optical fiber pigtail, ofc pigtail

minimum order :

1000 pieces

Quantity :

add to cart

Contact Now

PVC LSZH LC Fiber Optic Pigtail 1~ 144 core for Data processing networks

Quick details
1~ 144 core available
0.9, 2.0, 3.0 fan-out available
Easy to use, easy to install and maintain
Environmentally stable
Fan-out available
Cable out jacket: PVC, LSZH, OFNR, OFNP… available

OFC Pigtail Features:
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability

OFC Pigtail Applications:
Premise installations
Optical access network
Data processing networks
FTTH, LAN, CATV, Test equipment

Specification:

Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)

Ordering Information

Boot (cable) Size	Boot Color	Fiber Type	Cable number	Application	Length
0.9mm	Black	9/125μm (SM)	Simplex	PC	Customized
2.0mm	Green	50/125μm (MM)	Duplex	APC
3.0mm	Red	62.5/125μm (MM)	Fan-out (4f)
			Fan-out (6f)
			Fan-out (8f)
			Fan-out (12f)

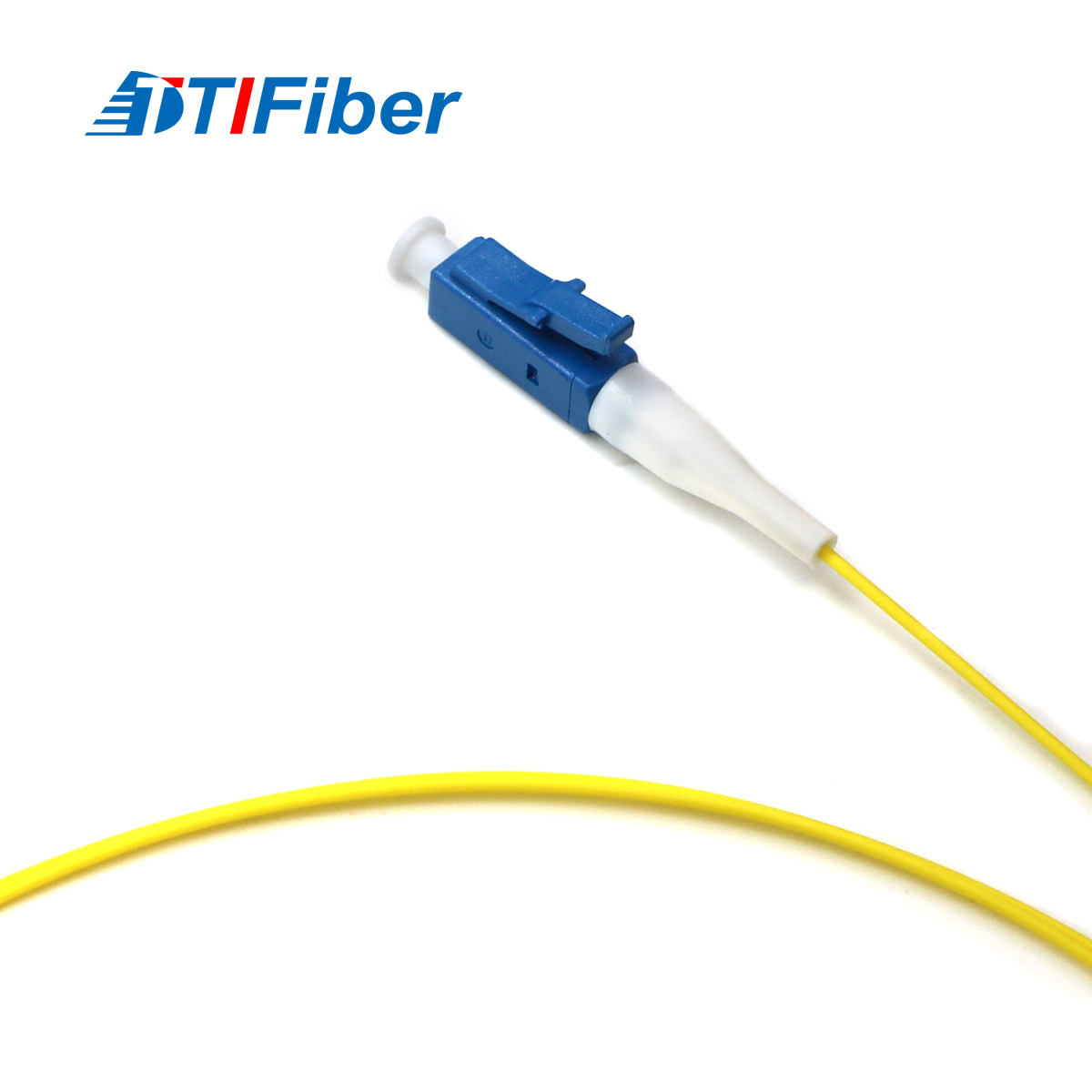

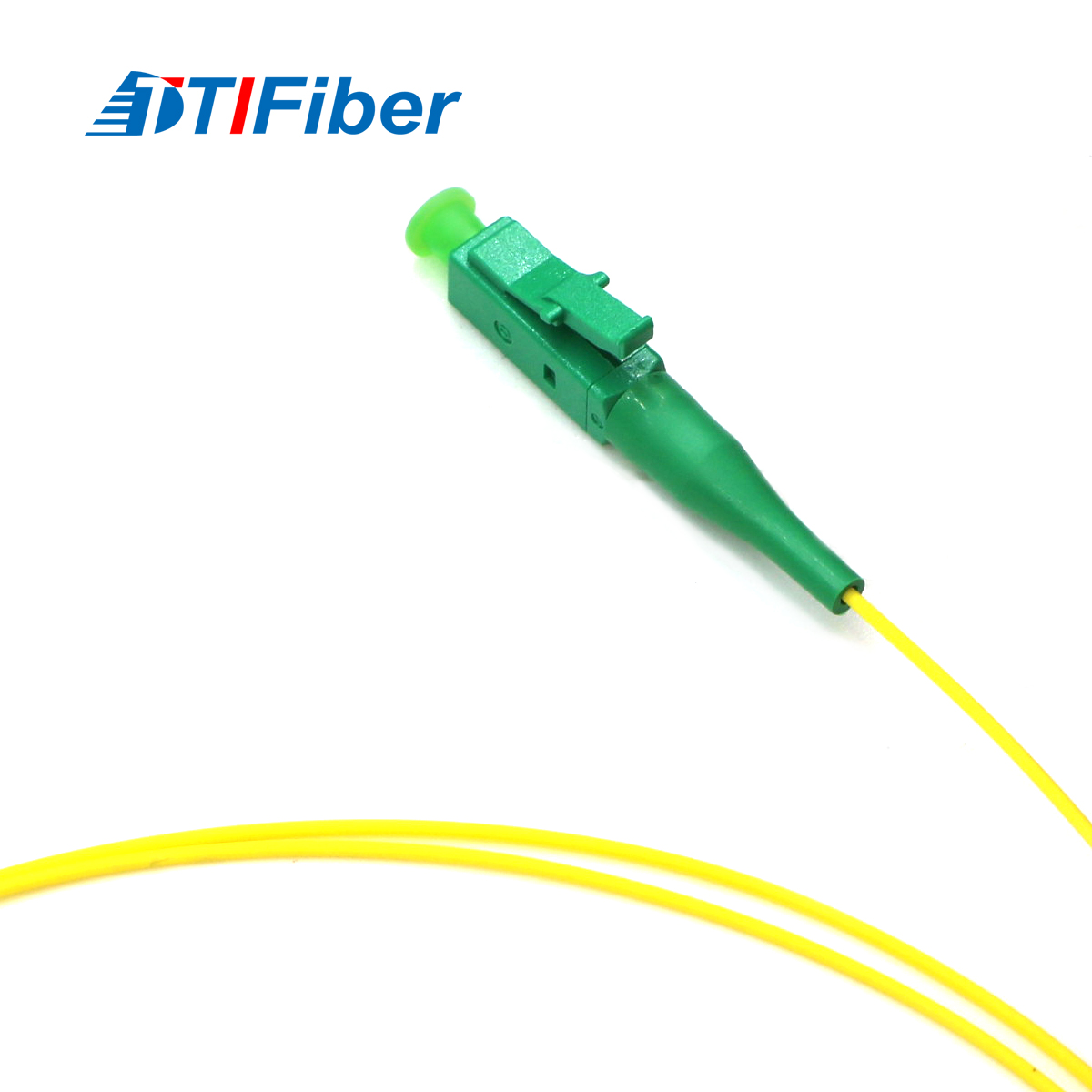

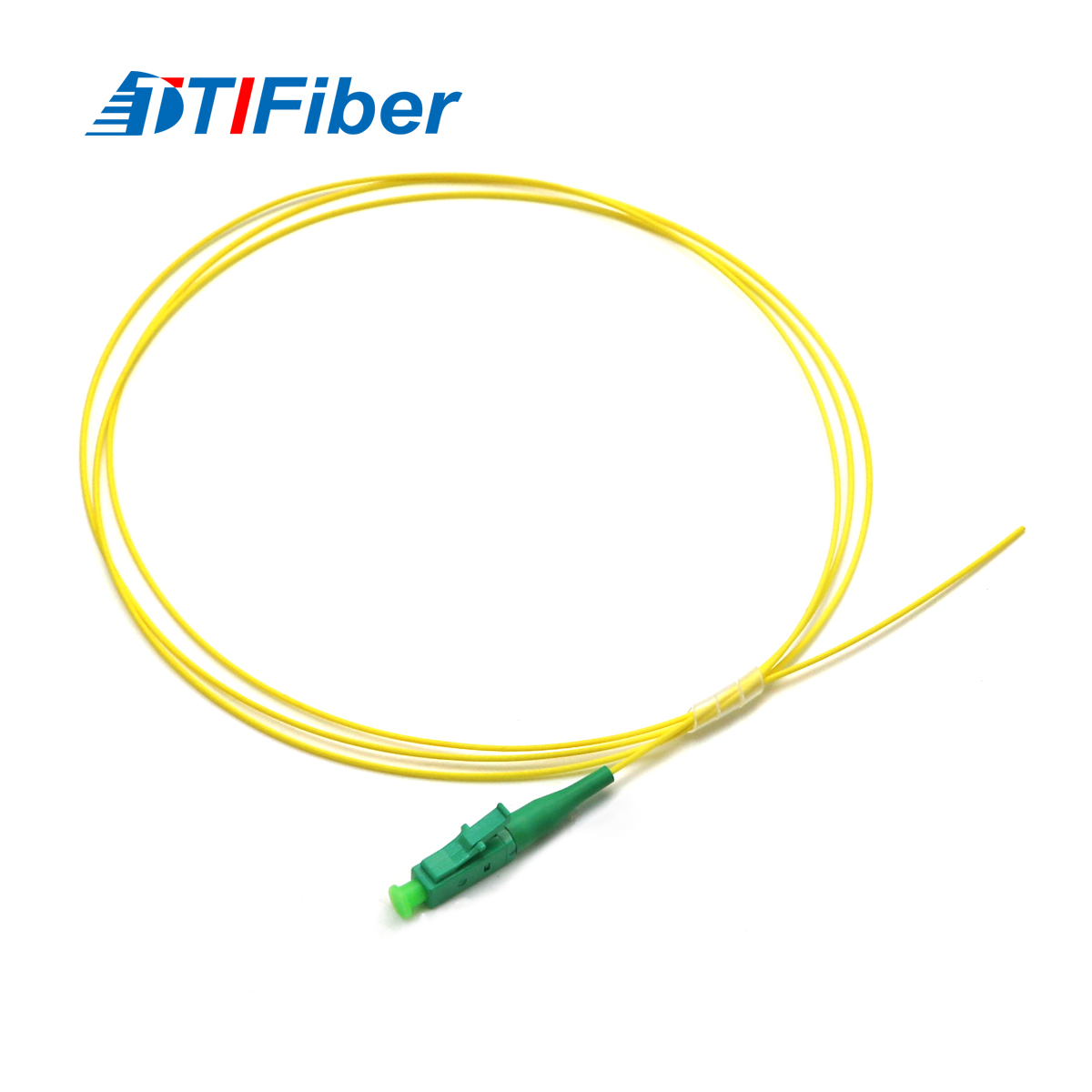

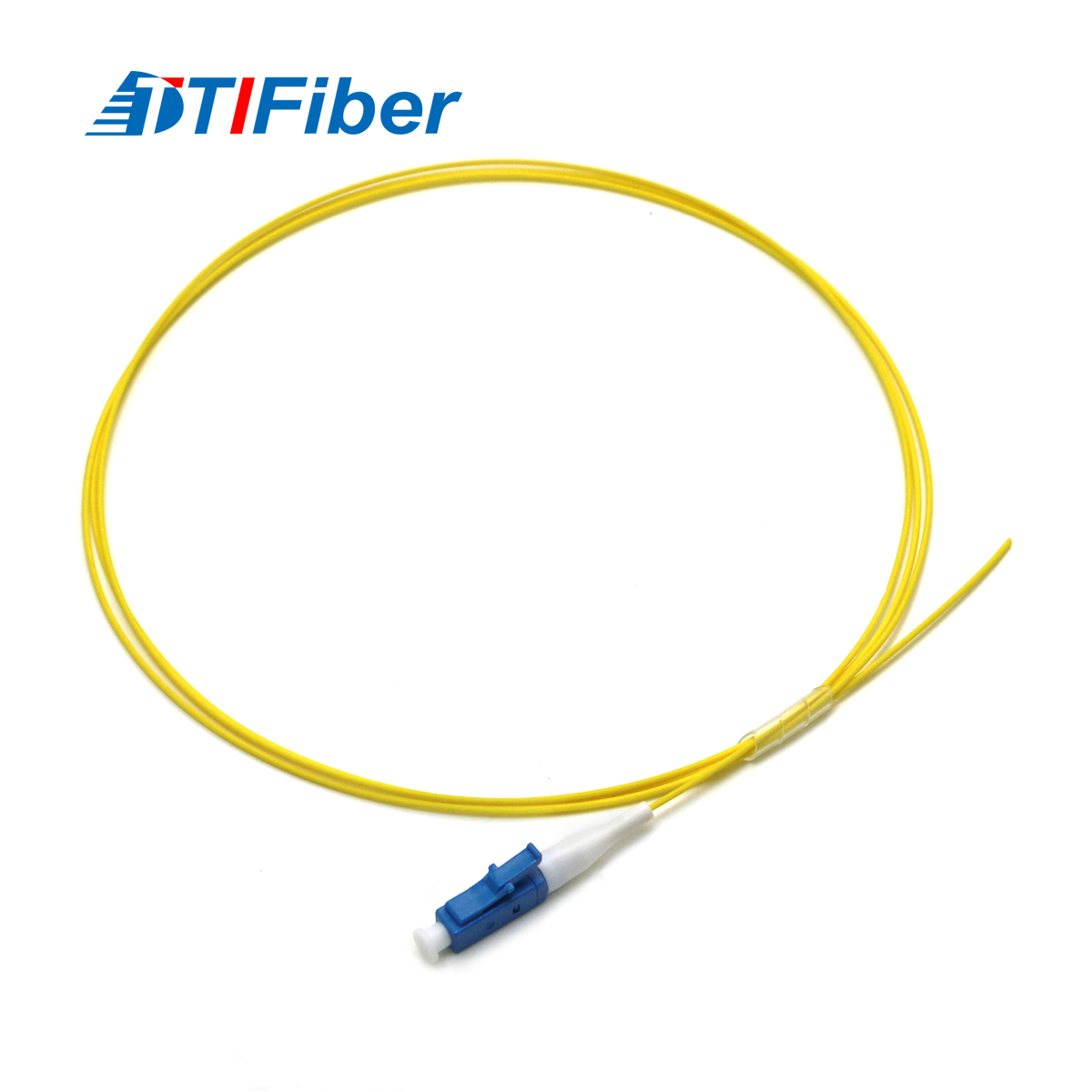

PVC LSZH LC Fiber Optic Pigtail:

PVC LSZH LC Fiber Optic Pigtail
