Fiber Optic Pigtail
lc pigtail single mode
Model No: LC APC SM SX 0.9mm

LC SC ST FC PC UPC APC Fiber Optic Pigtail Simplex Singlemode 0.9mm Patch Cord

Jacket : PVC/LSZH, PVC or LSZH

Length : 1M/2M/3M So on

Connector Type : SC/LC/ST/FC

Insertion loss : ≤0.20, MM≤0.75dB, SM≤0.50dB, ≤0.1dB, IL<0.2db

Connector : FC, SC, SC/APC (LC, LC, FC for choice)

Fiber type : SM 9/125 G652D, OS1, 9/125 tight buffered fiber Single Mode simplex, G652D/G657A1/G657A2 etc., G657A1 etc.

Cable diameter : 0.9/2.0/3.0mm, 3mm, 0.9mm, 2mm

Jacket material : Customize, can be customized, 1M; 2M; 4M etc., 10Meter
minimum order :
1000
Quantity :
add to cart
Contact Now

LC SC ST FC PC UPC APC Simplex Singlemode SM 0.9mm Fiber Optic Pigtail Patch Cord

Pigtail Singlemode Quick Detail:

  1. Cable jacket: PVC, LSZH, OFNP, OFNR
  2. Cable color: Yellow, Orange, Aqua, White, Red, Green, 12corlors
  3. Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
  4. Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM
  5. Cable length: 1m, 2m, 3m, 5m....customized
  6. Cable core: simplex, duplex, 6core,12core, 24core, 48core… customized

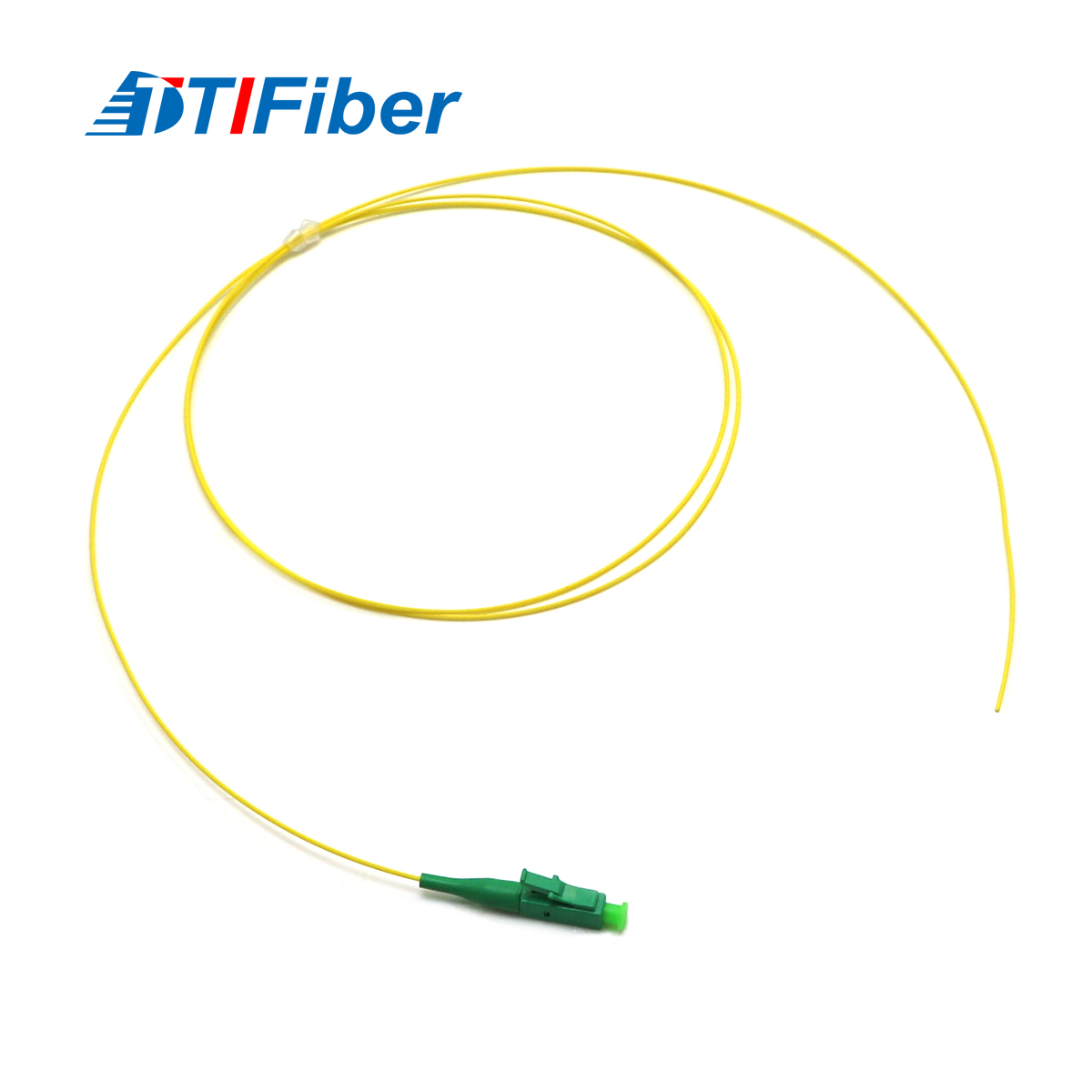

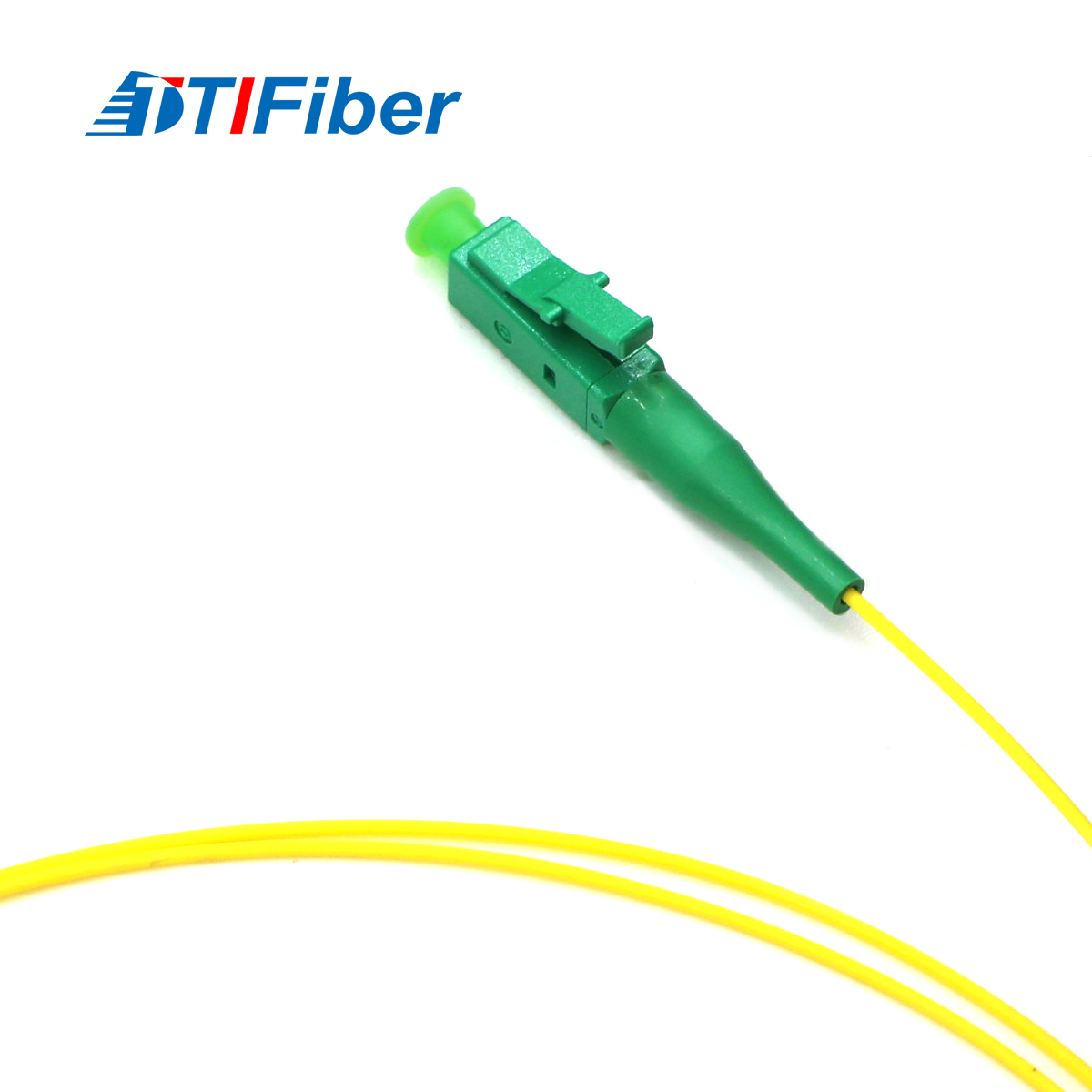

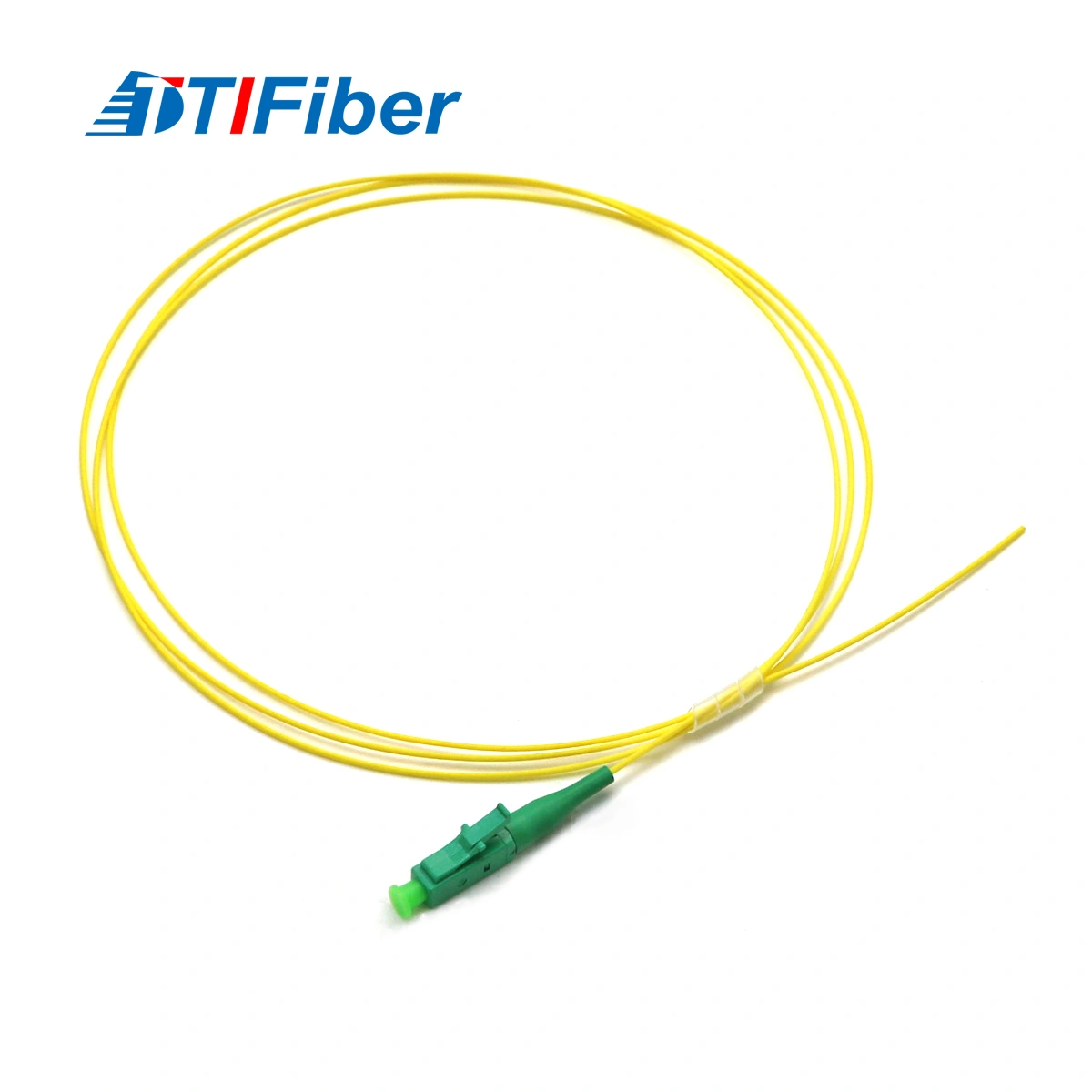

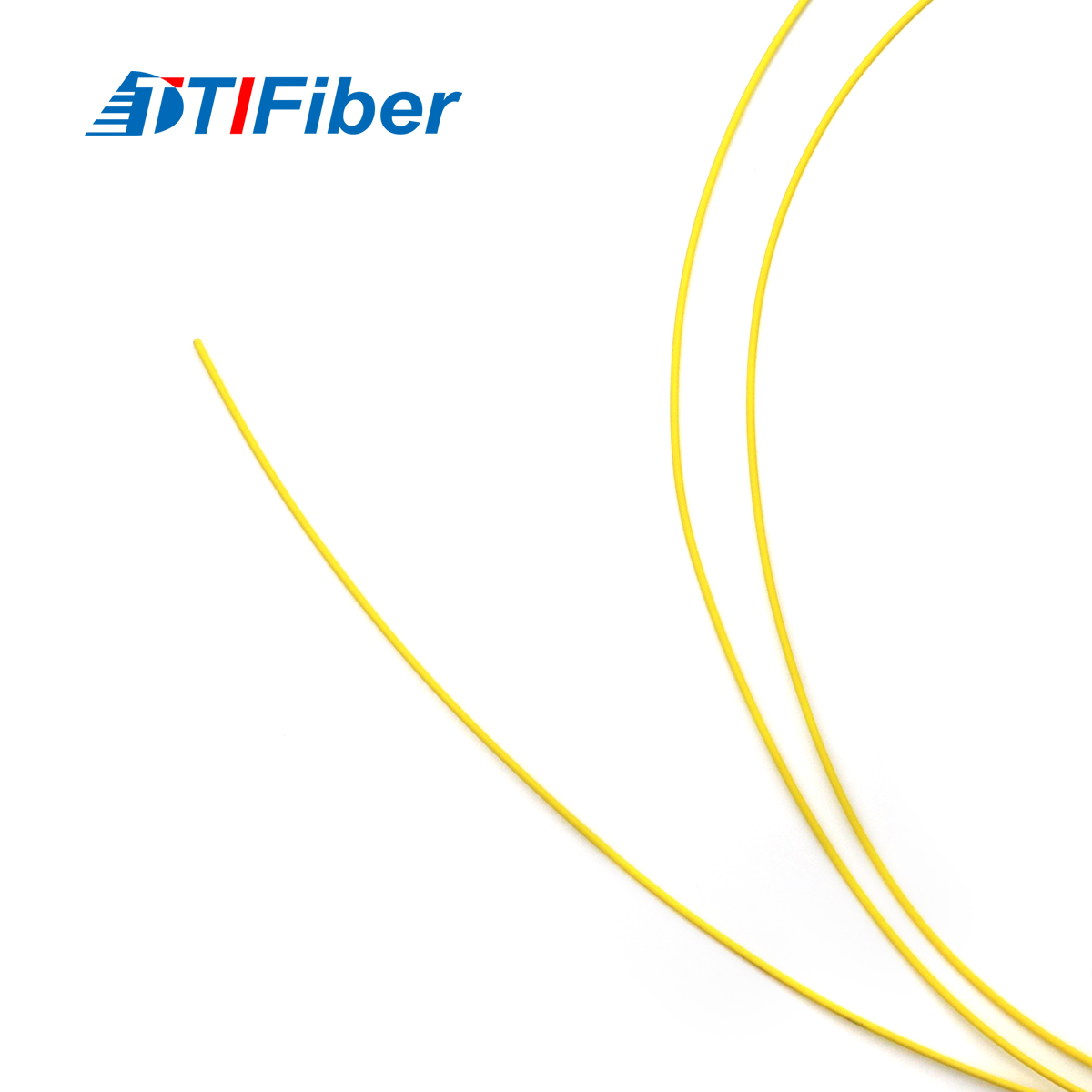

Lc Pigtail Single Mode Product Pictures:

Fiber Optic Pigtail Patch CordFiber Optic Pigtail Patch CordFiber Optic Pigtail Patch CordFiber Optic Pigtail Patch Cord

Description:
Fiber optic pigtail is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables.

Features:

  1. 100% test before shipment
  2. Low insertion loss and high return loss
  3. Custom Configurations Available at No Extra Charge
  4. Available in fiber bunch, ribbon fan-out, pigtail available
  5. Serialized & Individual Test Records
  6. Meets ROHS and Bell core GR 326-core standards

Applications:

  1. FTTH application
  2. Premise installations
  3. Data processing networks
  4. Wide Area Networks (WANs)
  5. Industrial ,mechanical and military

Specification:

Fiber optic pigtail ParameterFiber optic pigtail Single ModeFiber optic pigtail Multi Mode
BasicFiber connectorFC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-facePCUPCAPCUPC
Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
Return Loss≥50dB≥55dB≥60dB≥35dB
Ceramic Ferrule Specification125.5um concentricity deviations:<=1um127um concentricity deviations:<=3um
Suitable Fiber9/125um50/125um,62.5/125um
End-face GeometryRadius of Curvature7~25mm5~12mmN/A
Fiber Protrusion≤50nm≤100nmN/A
Fiber Under Cut≤100nm≤100nmN/A
Apex offset≤50um
MechanicalExchangeability≤0.2dB
Salt Spray≤0.1dB
Drop≤0.2dB(1.5M, 5 drops)
VibrationIL ≤0.2dB(550Hz, 1.5mm)
Repeatability≤ 0.1dB(1000 times)
Durability> 1000 times
Operating Temperature-40°C ~ +85°C

Ordering Information:

Step 1: Connector Type: FC, SC, LC, ST, MTRJ, MU, MPO

Step 2: Ferrule End-face: PC, UPC or APC

Step 3: Fiber Type: Single Mode(SM) or Multimode

Step 4: Cable Core: Simplex or Duplex

Step 5: Cable Diameter: 0.9mm, 2.0mm or 3.0mm

Step 6: Cable Length: 1, 2, 3 meter or customized

Step 7: Cable Type: PVC, LSZH, OFNR, OFNP…

Step 8: Cable color: Yellow, Orange, White, Blue, Green, Red, ...

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with RoHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise.
  4. Our patch cord warranty period is one year.

Fiber optic pigtail Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.
