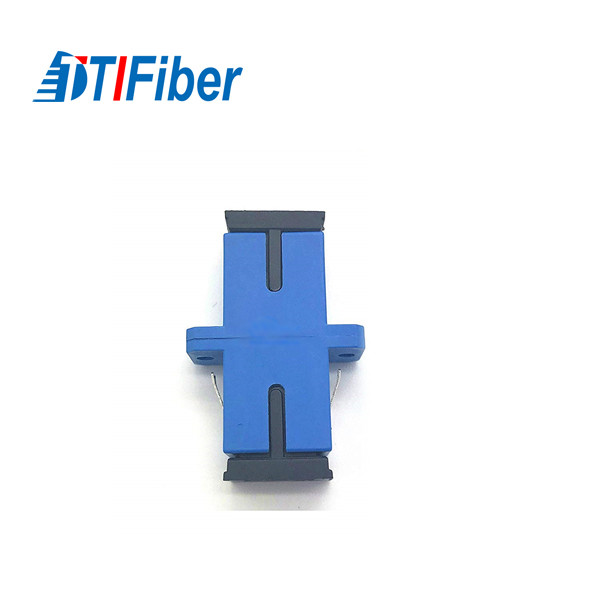

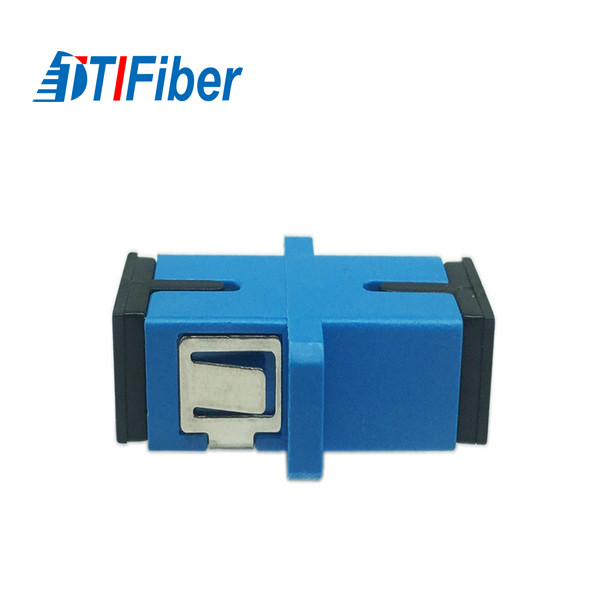

Female to Female UPC SX SM Fiber Adapter SC Fiber Connector
Mode : Singlemode, Multimode
Type : Simplex, Duplex, Quad
Sleeve : Zirconia/Ceramic, Copper
Housing : ABS, PBT, PC
Color : Blue, Beige, Green, Customized
End-face : PC, UPC, APC
Structure : Female To Female
High Light : SX SM Fiber Adapter, UPC SC Fiber Connector, SGS Flange Coupling Adapter
Female To Female UPC SX SM Fiber Adapter SC Fiber Connector
fiber optic adapters SC fiber connector SC UPC SX SM optic fiber adapter.Fiber optic adapters are used to provide
a cable to cable or cable to equipment fiber optic connection.We supply a wide range of mating sleeves and hybrid
adapters, including special male to female hybrid fiber optic adaptor.
Feature | * OS1 OS2 SC to SC(Female to Female) Simplex Fiber Optic Adapter/Coupler with M2*6MM Screw. * SC adapters is made by ceramic sleeve to connect between two SC fiber Optic cables. * Meets the Telcordia and IEC 61754 standard, all materials compliant with RoHS/REACH * Can be used in Local Area Networks (LANs), Storage Area Networks (SANs), Wide Area Networks (WAN), Metropolitan Area Networks (MAN) data center, business, premises, security, FTTH, FTTP, FTTA, high EMI, and commercial applications. | |||
Sm Sc Fiber Connectors Application:
Local area networks
Wide area networks
Data processing networks
CATV
Telecom networks
Optical test equipments
Sc Upc Optic Fiber Connector Parts &Material:
Parts | Material | Remarks |
Sleeve | Zirconia, PB | |
Housing | PC | Flammability UL94 V-0 |
Dust cap | PVC | Flammability UL94 V-0 |
Clip | stailess steel |
Female to Female Connector Optical Performance:
Item | Premium Grade | Standard Grade |
Insertion Loss | ≤0.1dB | ≤0.2dB |
Durability | 1000 times | 1000 times |
Adapter Fiber Optical Female Environment and Mechanical:
Properties | Test condition | Conformance | Test result |
Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Sm Fiber Connector Order Information:
LC/APC-LC/APC-SM-DX-ABS
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
