Model No: FC Adapter

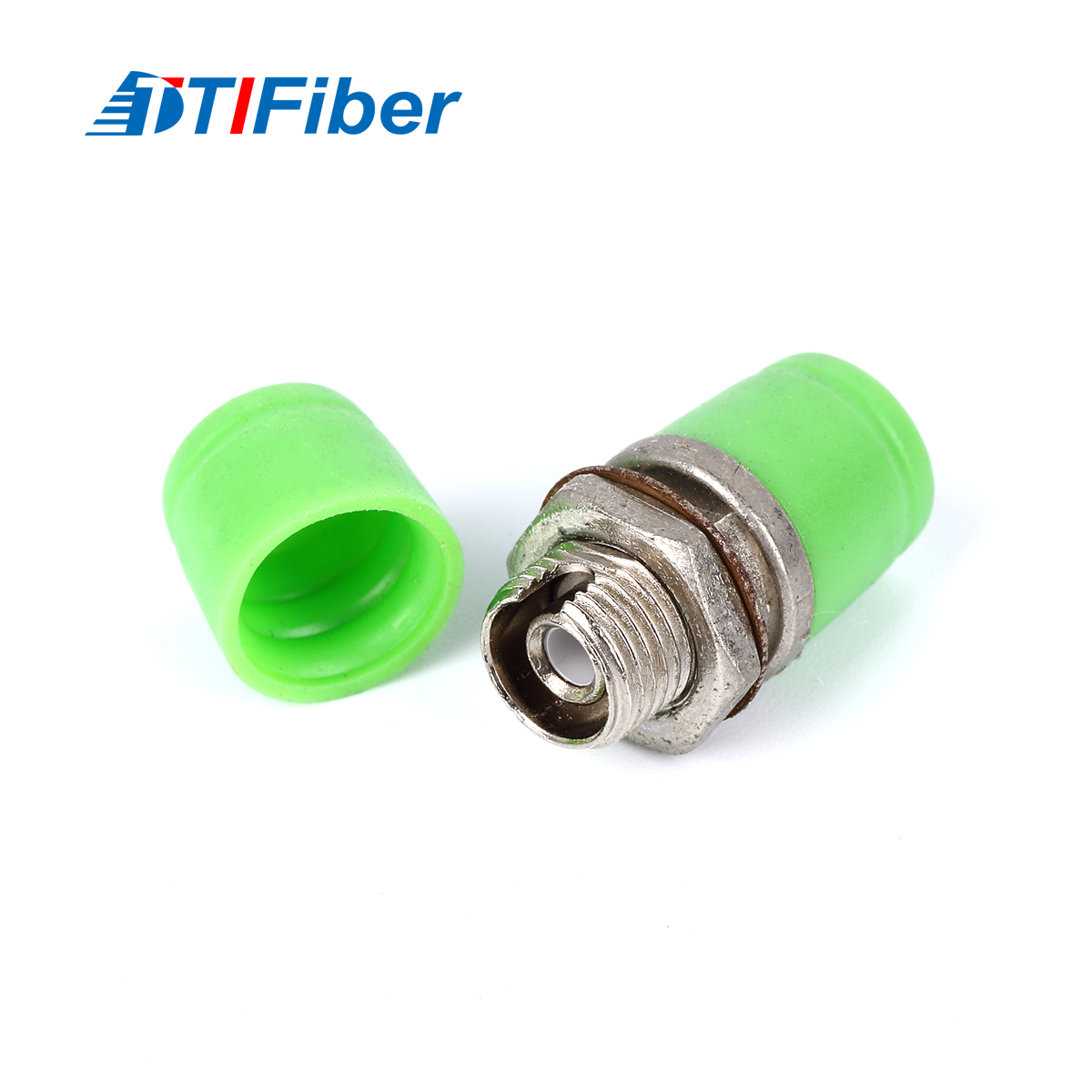

Green FC PC Fiber Optic Adapter Optical Fiber communication Adapter With Shutter
Nmae : Optical Fiber Adapter
Type : FC
Connector : PC
Application : Network Equipment
Material : ABS
Storage Temperature : -25º C~+85º C
Operating Temperature : -25º C~+85º C
Insertion Loss : <0.2dB
Repeatability : ≤ 0.2dB
Exchange : ≤ 0.2dB
Durability : >1000(times)
Type : FC
Connector : PC
Application : Network Equipment
Material : ABS
Storage Temperature : -25º C~+85º C
Operating Temperature : -25º C~+85º C
Insertion Loss : <0.2dB
Repeatability : ≤ 0.2dB
Exchange : ≤ 0.2dB
Durability : >1000(times)
minimum order :
1000
Quantity :
Green FC PC Fiber Optic Adapter Optical Fiber communication Adapter With Shutter
100% tested before delivery Custom Cable, Connector... Good Quality at Fair Price Usage environment
1. Storage Temperature: -25º C~+85º C
2. Operating Temperature: -25º C~+85º C
Our FC PC Fiber Optic Adapter Mating Sleeves are available in singlemode and multimode versions and have
metal housings.These FC Fiber Optic Mating Sleeves have phos. bronze or zirconia sleeves, depending on the
type chosen. Also available are APC style Fiber Optic FC Mating Sleeves.
metal housings.These FC Fiber Optic Mating Sleeves have phos. bronze or zirconia sleeves, depending on the
type chosen. Also available are APC style Fiber Optic FC Mating Sleeves.
In addition to this particular style of fiber optic mating sleeve, we can provide mating sleeves, adapters, adapter
panels and fiber optic connectors for all your needs and applications. Hybrid fiber optic mating sleeves are also
available. If you don’t see the item that you need on our website, chances are that we have the product in stock
in our large inventory.
panels and fiber optic connectors for all your needs and applications. Hybrid fiber optic mating sleeves are also
available. If you don’t see the item that you need on our website, chances are that we have the product in stock
in our large inventory.
Photoelectricity specifications:
1. Insertion Loss: <0.2dB
2. Repeatability: ≤ 0.2dB
3. Exchange: ≤ 0.2dB
4. Durability: >1000(times)
LC fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment
Specifications:1. Insertion Loss: <0.2dB
2. Repeatability: ≤ 0.2dB
3. Exchange: ≤ 0.2dB
4. Durability: >1000(times)
LC fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment
100% tested before delivery Custom Cable, Connector... Good Quality at Fair Price Usage environment
1. Storage Temperature: -25º C~+85º C
2. Operating Temperature: -25º C~+85º C
Features:
-Solid Type Adapter
-Rectangular Type Adapter
-Square Type Adapter
-Metal Body
-Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type
-Solid Type Adapter
-Rectangular Type Adapter
-Square Type Adapter
-Metal Body
-Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type
arameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | |||||||
Mode | SM | MM | SM | MM | SM | |||||
Category | PC | UPC | APC | PC | PC | UPC | PC | PC | APC | |
Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchange ability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Repeat ability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
Durability | Time | >1000 | >1000 | >1000 | ||||||
Operating Temperature | ℃ | -40~75 | -40~75 | -40~75 | ||||||
Storage Temperature | ℃ | -45~85 | -45~85 | -45~85 | ||||||
