Multimode LC Quad Fiber Optic Adapter with ABS Housing , Ceramic Sleeve
Mode : Multimode
Type : Quad
Sleeve Zirconia/Ceramic, Copper
Housing : ABS, PBT, PC
Color : Blue, Beige, Green, Customized
End-face : PC, UPC, APC Structure Female To Female
High Light : fibre optic adapter, female female adapter

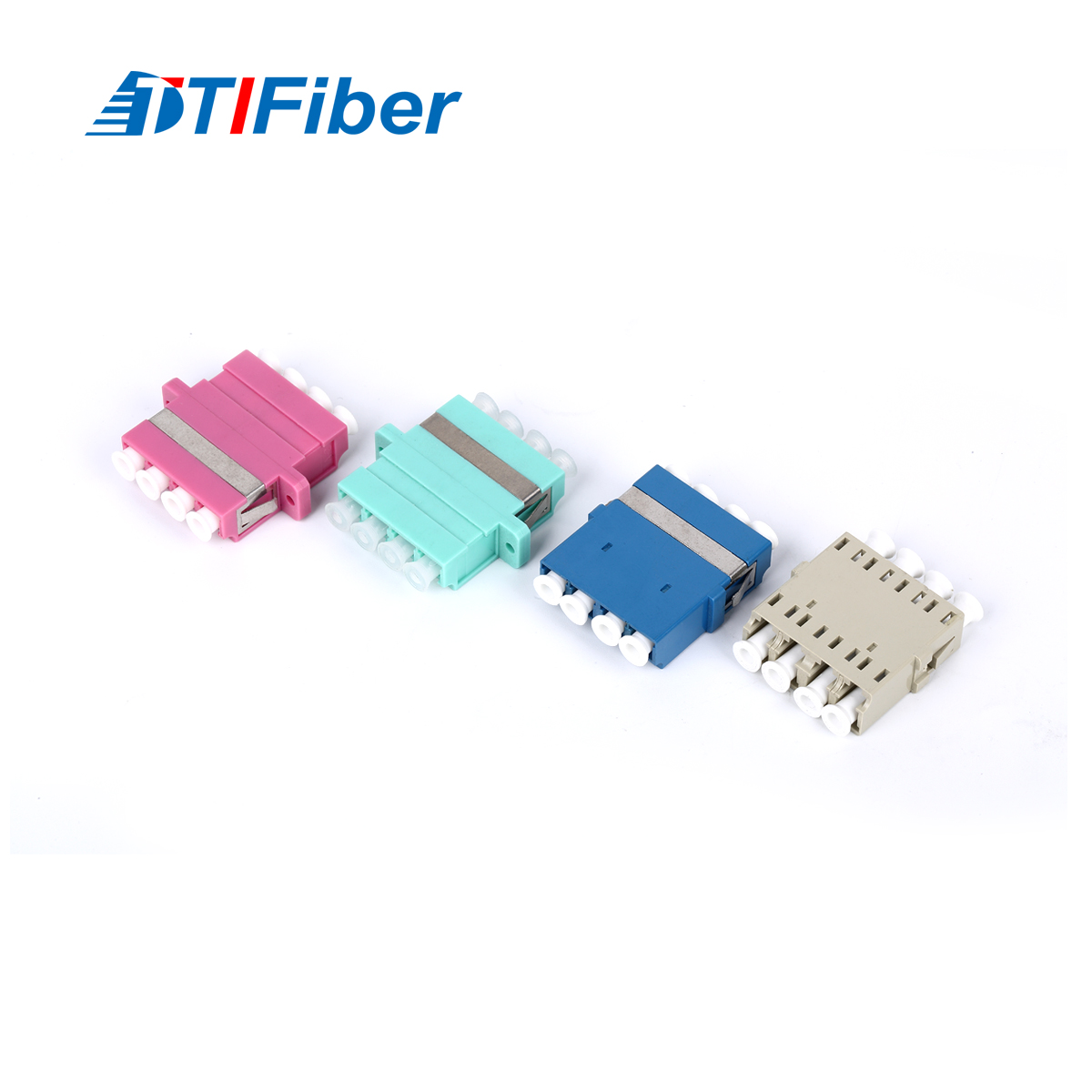

Multimode LC Quad Optical Fiber Adapter with ABS Housing , Ceramic Sleeve
Optical Fiber Adapter are used in fiber optic connection, the typical use is to provide a cable to
cable fiber connection.The LC Quad Optical Fiber Adapter were developed by Lucent Technologies. They are composed
of a plastic housing with an RJ45 push-pull style clip.Single-mode and multimode LC adapters come with a choice of
zirconia ceramic or phosphor bronze split sleeves, including zirconia diagonal split sleeves for PC and APC applications.
Features:
Low insertion loss value
Choice of housing and sleeve materials
Stable capability and high reliability
Excellent mechanical capability
Variety of colors
Quad Fiber Adapter Application:
CATV
Telecom networks
Optical test equipments
Local area networks
Wide area networks
Data processing networks
Multimode LC Quad Optical Fiber Adapter:
Parts &Material:
Parts | Material | Remarks |
Sleeve | Zirconia, PB | |
Housing | PC | Flammability UL94 V-0 |
Dust cap | PVC | Flammability UL94 V-0 |
Clip | stailess steel |
Optical Performance:
Item | Premium Grade | Standard Grade |
Insertion Loss | ≤0.1dB | ≤0.2dB |
Durability | 1000 times | 1000 times |
Environment and Mechanical:
Properties | Test condition | Conformance | Test result |
Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
Temperature humidty cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Fiber Adapter Order Information:
LC/UPC-LC/UPC-MM-Quad-Plastic Adapter
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
