SC 50um / 62.5um FTTH Network Fiber Fast Connector High Return Loss
Ferrule End-face : UPC,APC
Fiber Type : Multimode
Cable Type : Simplex
Cable OD : 0.9/2.0/3.0mm
Housing Color : Blue, Green, Beige
Insertion Loss : <0.3dB
Return Loss : >50dB
High Light : fiber optic drop cable, fiber drop cable
FTTH Network SC 50um / 62.5um Fiber Fast Connector High Return Loss
Description:
The fast connector is designed for high quality and high efficiency for installation.
The structure of crimping position is a unique design, and need not gluing, polishing neither any consumables.
Could be reused, and convenient for field installation.
Adopted fiber pre-installed structure.
Fast Connector Fiber Optic Features:
Accurate mechanical dimension
Low insertion loss
High return loss
Match to IEC61754-4
All material match to ROHS
Sc Apc Fiber Connector Application:
Use for open FTTH Optical terminal to end.
Connection in closure, cabinet, terminal box etc.
Recovery and maintenance in the accident like fiber cut situation.
LAN, WAN, data and video transmission.
Construction and maintenance in the FTTX of terminal user
Fiber to mobile base station.
Life Time:
Our fiber optic fast connector have at least 15 years lifetime, because we introduce advanced production technolege
and100% NEW raw materials, well control fiber optic fast connector's quality.
Specification:
Item | Parameter |
Cable | 3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Coating Diameter | 250μm |
Mode | SM, MM |
Insertion Loss | ≤ 0.3dB |
Return Loss | SM: ≥45dB; MM: ≥35dB |
Reusable Times | >10 times |
Tensile Strength | >50 N |
Temperature | -40~+85°C |
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printed: Customer logo or None brand are available
Inner packing: 10pcs/PE box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

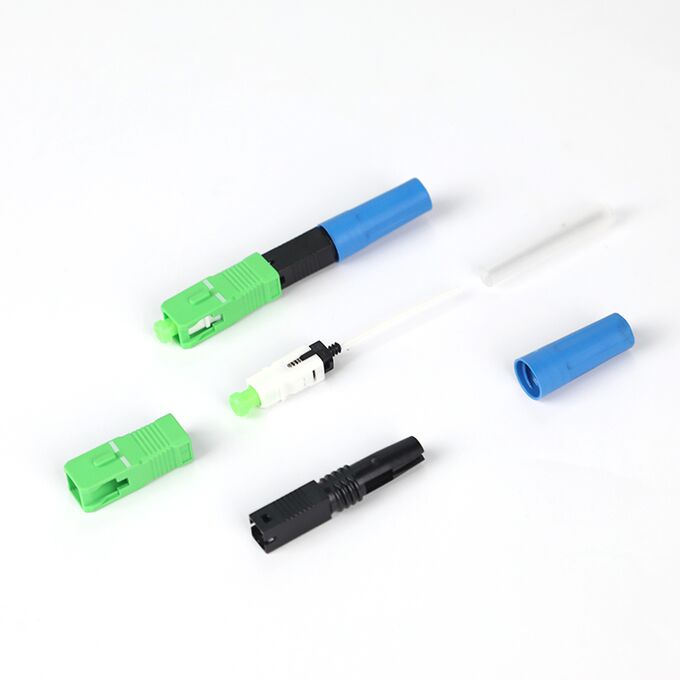

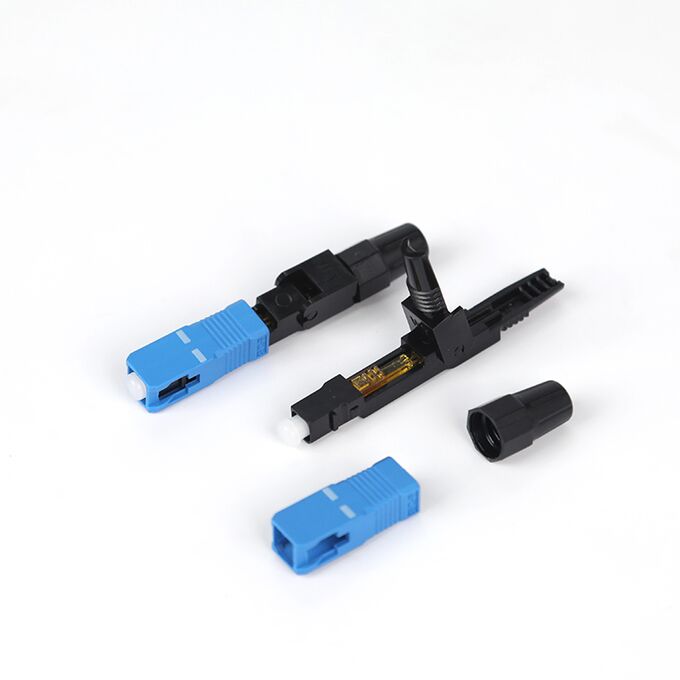

Fiber Fast Connector Product Picture:
