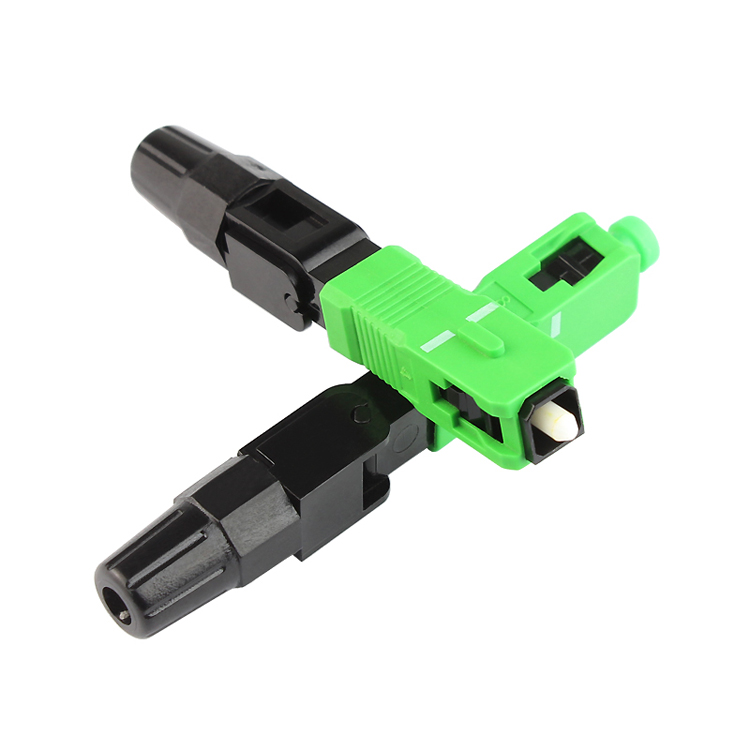

OEM SC LC Mu Ceramic Fiber Optical Connector
Item : SC/APC fast connector
Insertion loss : UPC<0.2dB, APC<0.3dB
Material : Plastic or steel
Polishing : APC, UPC
Use : FTTX
Module : SM, MM
Fc Apc Fiber Connector Product Features:
Compliance with IEC ,YD-T826/1996, NTT, YD/T826, YD/T895 and YD/T896 standard
Low insertion loss, high return attenuation, high stability
Repeated several mating characteristics, interchangeability
Standard metal parts
Bayonet connection, high-density docking
Ceramic ferrule, PC, UPC and APC polishing
Provide ordinary PVC or LSZH fiber optic cable
Ceramic Fiber Connector Application:
Telecommunications networks
Test equipment
Fiber optic communication systems
Optical fiber access networks
Optical fiber CATV
Fiber optic LAN
Description:
The fast connector is designed for high quality and high efficiency for installation
The structure of crimping position is a unique design, and need not gluing, polishing neither any
consumables.
Adopted fiber pre-installed structure
Could be reused, and convenient for field installation
Feature:
Orecise mechanical dimensions
Low insertion loss, high return loss
Comply standard of IEC61754-4
ROHS compliant
Parameter:
cable applicable | 3.1 x 2.0 mm drop cable |
cable diameter | 125μm ( 657A & 657B ) |
clad diameter | 250μm |
fiber type application | single mode |
operation time | about 100s(not including fiber management ) |
insertion loss | ≤ 0.3dB(1310nm & 1550nm) |
return loss | ≤ -40dB |
bare fiber strength | >5 N |
clad strength | >10 N |
of tension | >50 N |
operation temperature | -40~+7 250μm 5°C |
tensile strength (20 N) | IL ≤ 0.2dB RL ≤ 5dB |
mechanical durability | (500 times) IL ≤ 0.2dB RL ≤ 5dB |
Name | Type |
Fiber patch cord /Jumper | SC,FC,ST,LC,MPO,MTRJ,MU |
Fiber adapter | SC,FC,ST,LC,MPO,e2k,bare,hybrid |
Fiber connector | LC,SC,ST,FC,MPO,MTRJ,MU |
Fiber splitter | FBT,PLC |
Fiber distribution box | FDB |
Fiber terminal box | TB |
Fiber optic splice Closure | Horizonal Dome |
Fiber Cable | 2 core 4 core 6 core 8 core 12 core 24 core 48 core 96core, |
Fiber attenuator | Variable,Others |
Fiber tester and tool | OTDR Tester,Fusion Splicer fiber cleaner |
Fiber patch panel | standred |
Fiber loopback | Standred |
