SC/UPC SC/APC Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
Mode : SM MM
Insertion loss : IL<0.2db, no more than 0.3db, ≤ 0.3dB, >5, ≤0.2 dB
Tensile strength : >50N
Return loss : > 55db, ≥50dB, max.50dB (SC/APC), ≤-40dB, more than 55db
Application : FTTH FTTB FTTX Network, CATV, to make patch cord, Telecommunication
Connector type : SC, SC/APC, 12 and 24 fiber connector, LC, MT based Multi-fiber Connector
Connector : LC, SC Fiber Optic connector, SC/FC, Fast Connector SC APC, FC
Fiber type : SM, SM or MM, G657A1, G652D, SM/MM
Operating temperature : -40°C ~ +80°C, -40 to +85 degree, -40~75℃, -45 to +85
Insert loss : less 0.1DB, <0.2dB, ≤0.3dB
Fiber cable type : 3x2mm Flat cable, 2.0mm 3.0mm cable, 3mm Drop cable, 3.1*2.0mm Butterfly Optical Cable Weight 3.2g, 0.5Kg/pack
FTTH SC/UPC SC/APC Quickly Assembly Connector Optical Fiber Mechanical Fast Connector
Description:
Fast fiber optic connector
Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available
for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch
panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens
SC quick assembly connector has easy assembly and excellent stability.
Feature:
- No special assembling tool
- Easy for learning technology by a simple assembling method (within 1 and half minutes)
- Minimize the defect rate by features of removal and reusable.
- Easy for assembling with mechanical splice and no polishing
Application:
- Optical network maintaining and repair.
- Local area network environment of connection.
- Fiber optic distribution frame.
- Terminal connection-leg of FTTH optic network.
Specification:Mechanical FTTH Optical Fiber Fast Connector Quickly Assembly
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

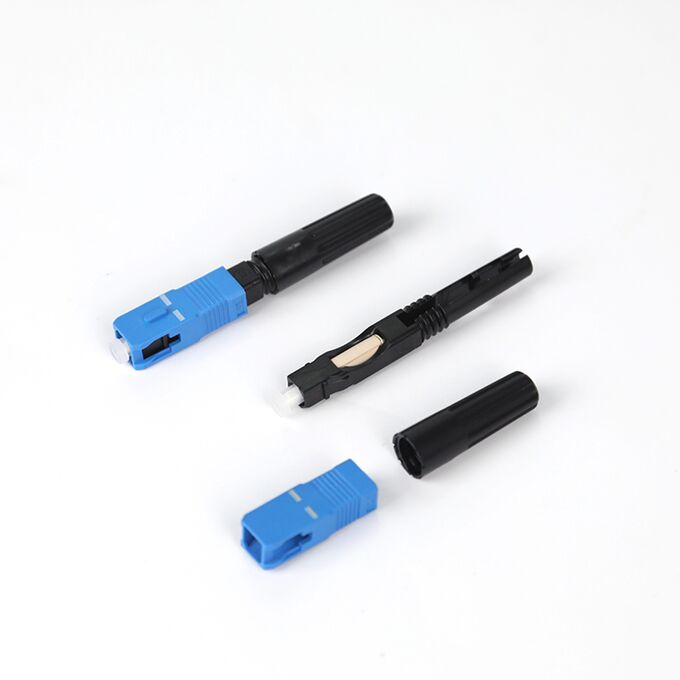

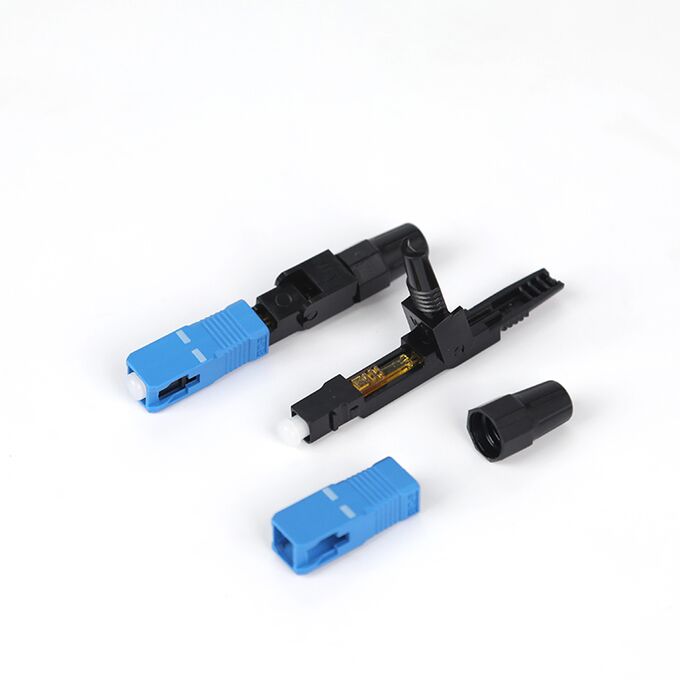

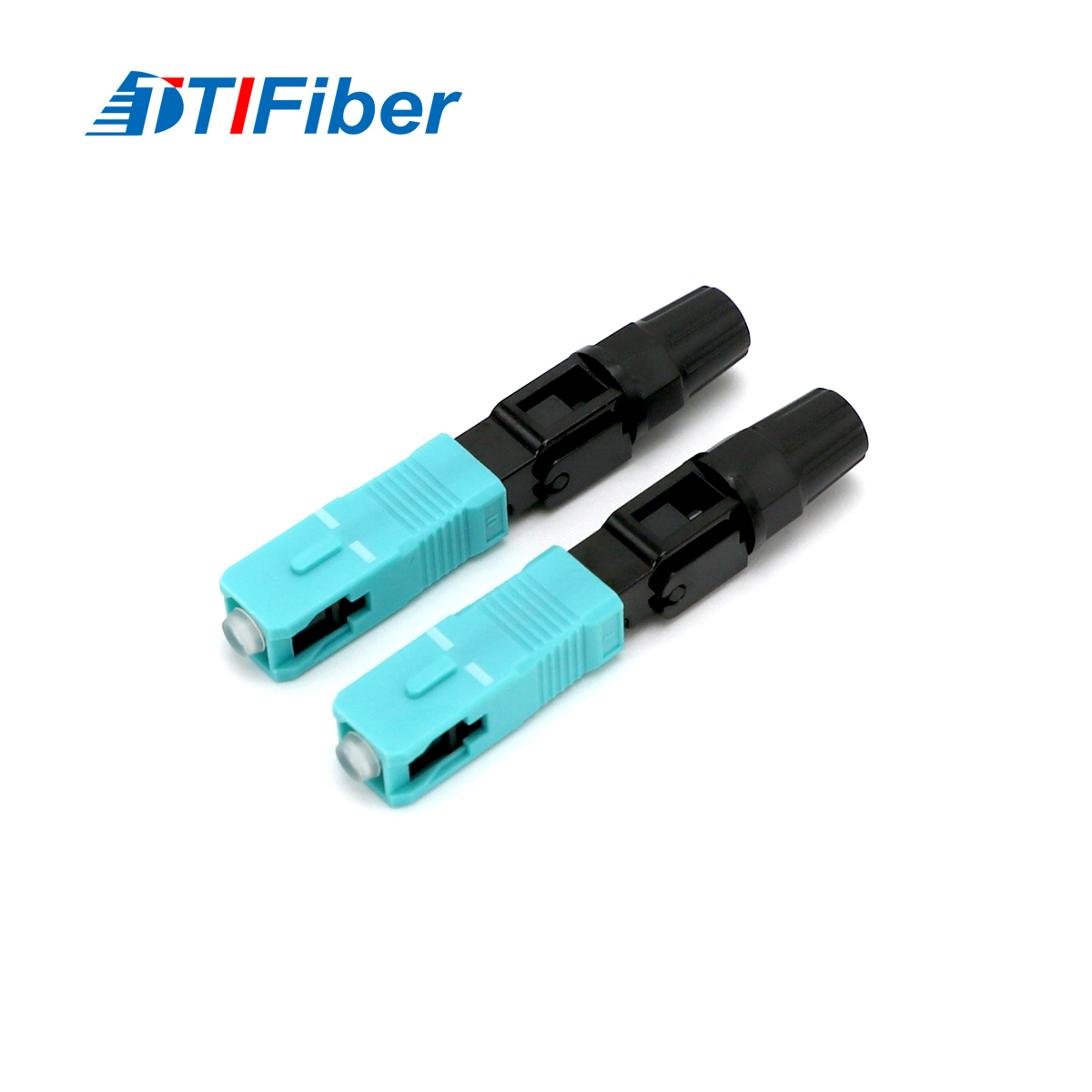

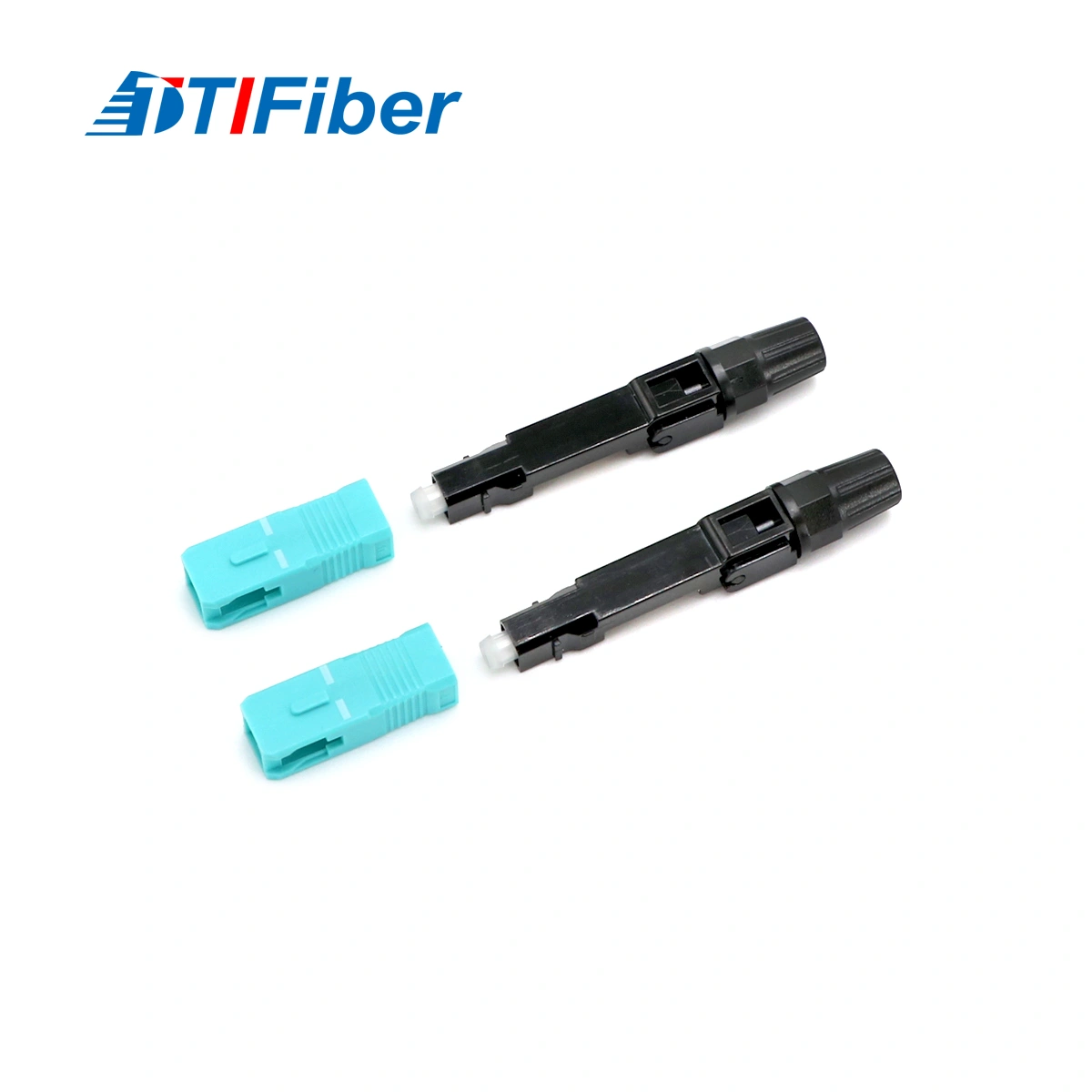

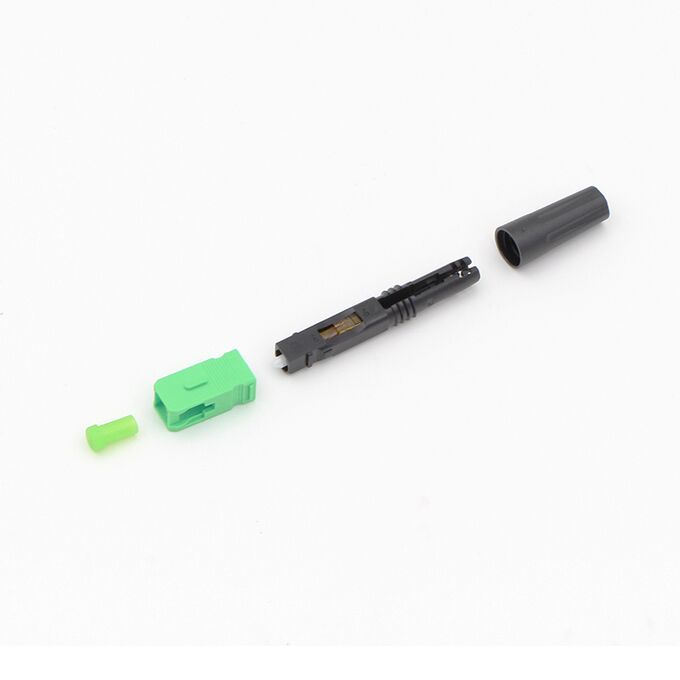

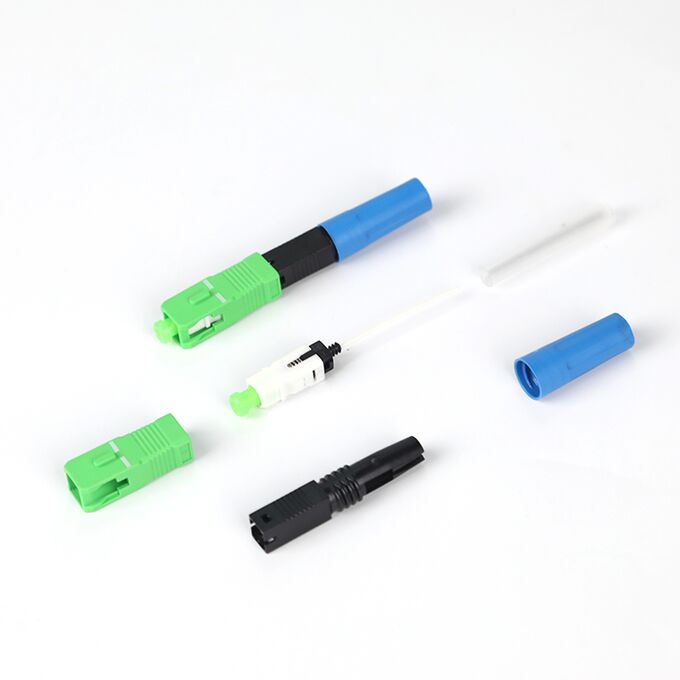

Product Photos:
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
