1x16 PLC Optical Fiber Splitter For Rack Mounted Fiber Terminal Box
Ferrule End-face : PC, UPC,APC
Fiber Type : G652D G657A1 G657A2
Fiber Mode : Singlmode
Structure : 1*2/1*4/1*8/1*16/1*32/1*64
Type : 19'' Rack Mounted
High Light : optical fiber splitter, fiber optic coupler
1x16 PLC Fiber Optic Splitter for Rack Mounted Fiber Terminal Box
Description:
PLC Fiber optic splitter Terminal Box is a micro-optical element using photolithographic techniques to form optical
waveguide at medium or semiconductor substrate for realizing branch distribution function.Fiber splitters are
available with 1x2,1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single mode or
multimode fiber andwe offer all type connectors of pre-connectorized like SC, FC, ST, LC etc.Terminal Box
Fiber Terminal Box Feature:
Low insertion loss
Low polarization dependent loss
High Return Loss
Optional Split Ratio 20/80, 40/60...(50/50 as default.)
Compact for small application areas like in closure or splice trays
Wide Operating Temperature and Wavelength
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Plc Splitter 1x16 Application:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Amplifying, Monitoring System
Test Equipments
Order Information
Local Area Networks (LAN)
CATV Systems
Fiber Terminal Box
Fiber Optic Box Specification:
| Parameters Terminal Box | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 | ||
| Wavelength (nm) | 1260~1650nm | |||||||||||||
| IL(dB) (P/S Grade) | 3.8/4.0 | 4.1/4.3 | 7.1/7.3 | 7.4/7.6 | 10.2/10.5 | 10.8/11.0 | 13.5/13.7 | 14.3/14.5 | 16.5/16.9 | 17.3/17.5 | 20.5/21.0 | 20.7/21.5 | ||
| Loss Uniformity (dB) | 0.6 | 0.8 | 0.6 | 0.8 | 0.8 | 1.5 | 1.2 | 2.0 | 1.5 | 2.5 | 2.5 | 2.5 | ||
| RL(dB) (P/S Grade) | 55/50 | |||||||||||||
| Polarization Dependent Loss (dB) | 0.15 | 0.2 | 0.15 | 0.2 | 0.25 | 0.3 | 0.3 | 0.4 | 0.3 | 0.4 | 0.3 | 0.4 | ||
| Directivity (dB) | 55 | |||||||||||||
| Standard Output Color | Blue, Orange, Green, Brown, Grey, White, Red, Black (TIA/EIA 598-B) | |||||||||||||
| Max. Optical Power (mw) | 300 | |||||||||||||
| Operating Temperature (℃) | -40~85 | |||||||||||||
| Storage Temperature (℃) | -40~85 | |||||||||||||
| Mini-Module Dimension (LxWxH) mm | 50x4x4 | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||||||||

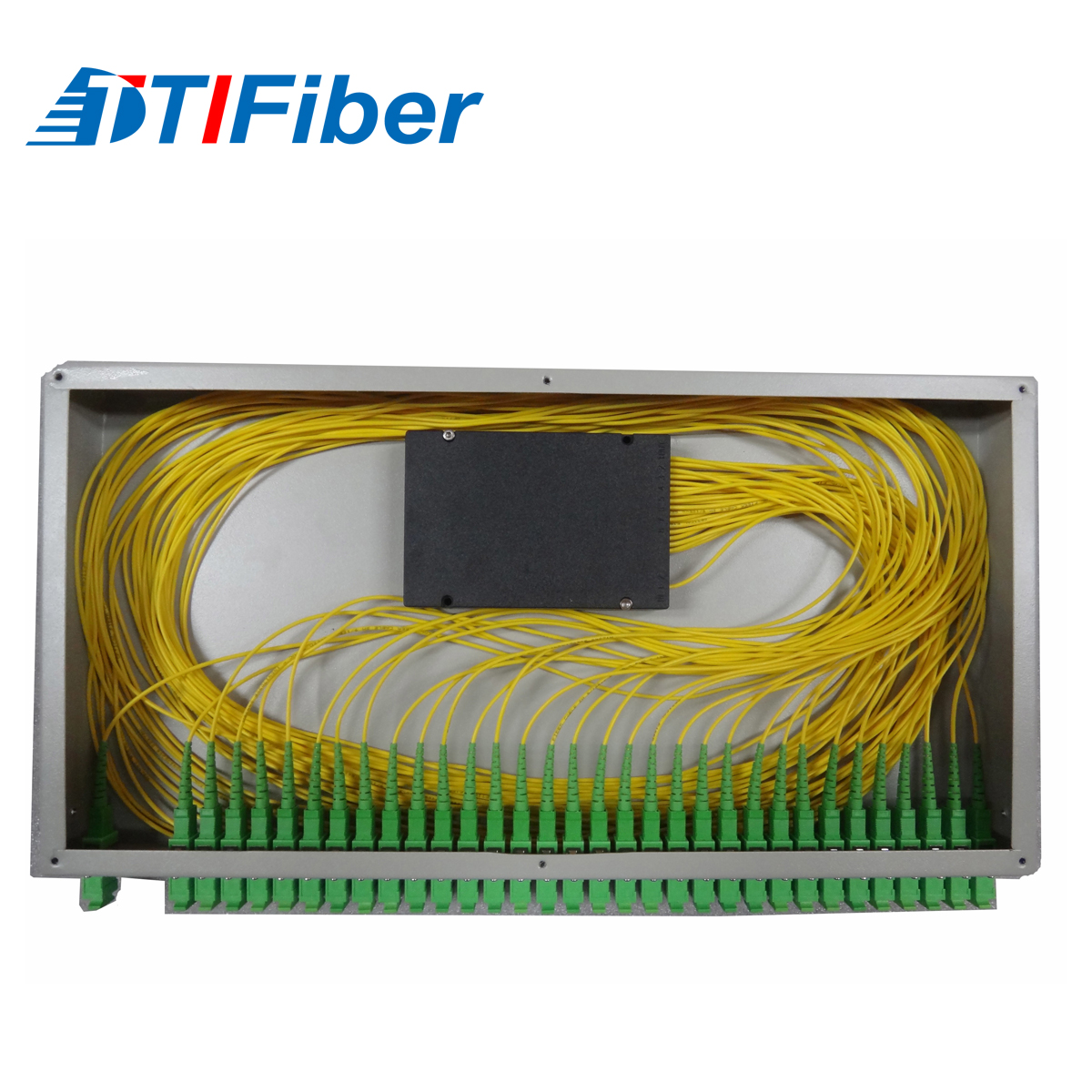

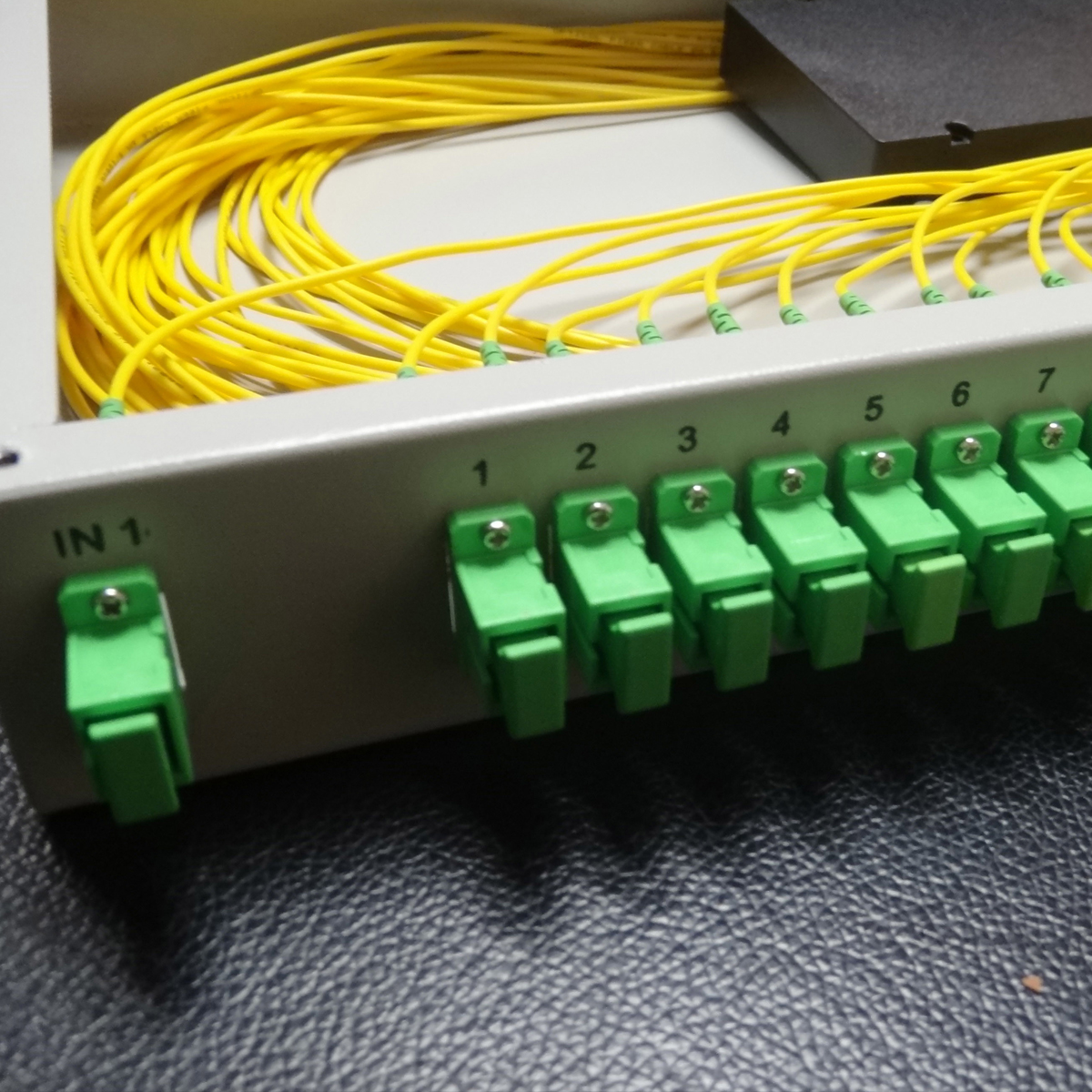

Rack Mounted Fiber Terminal Box Product Picture:
