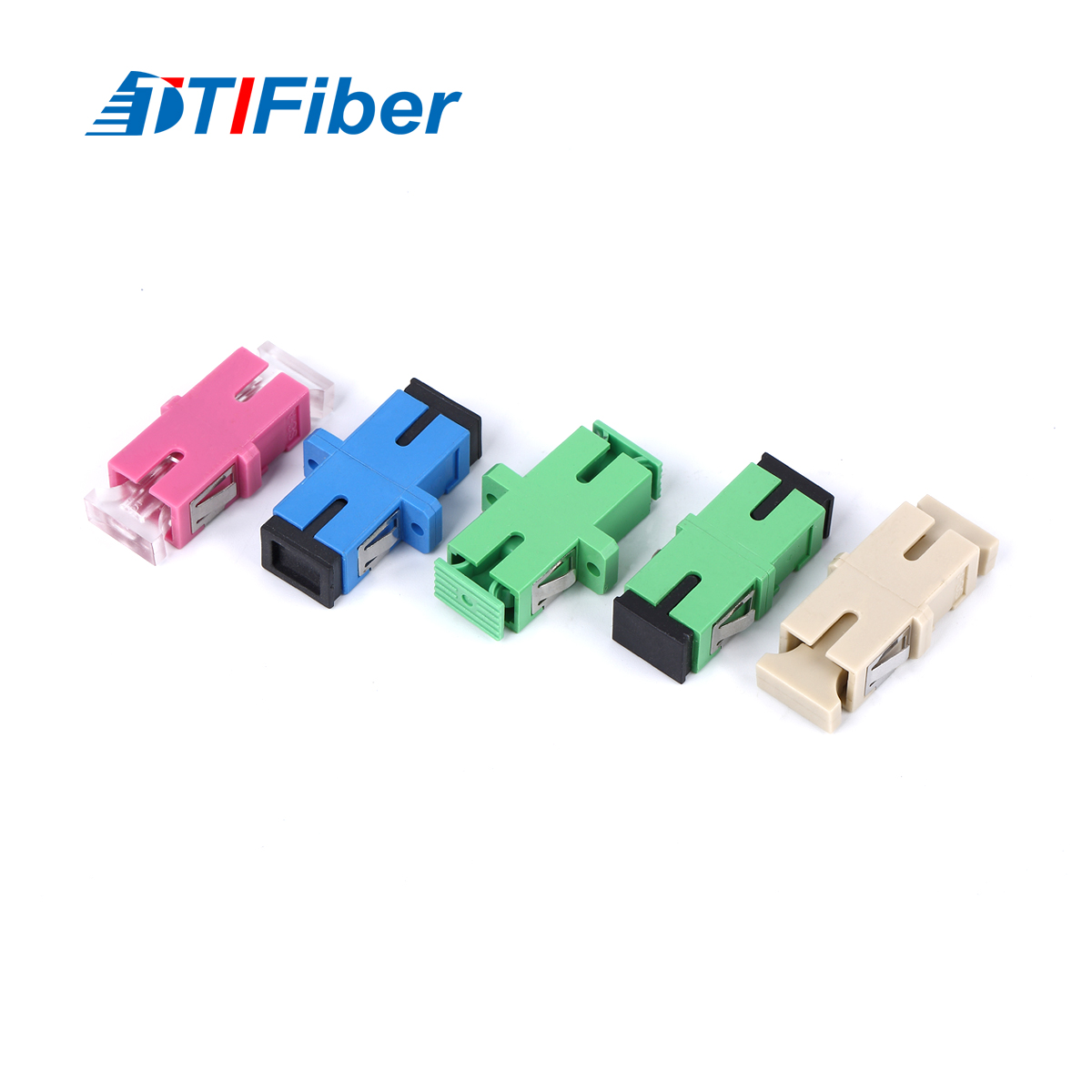

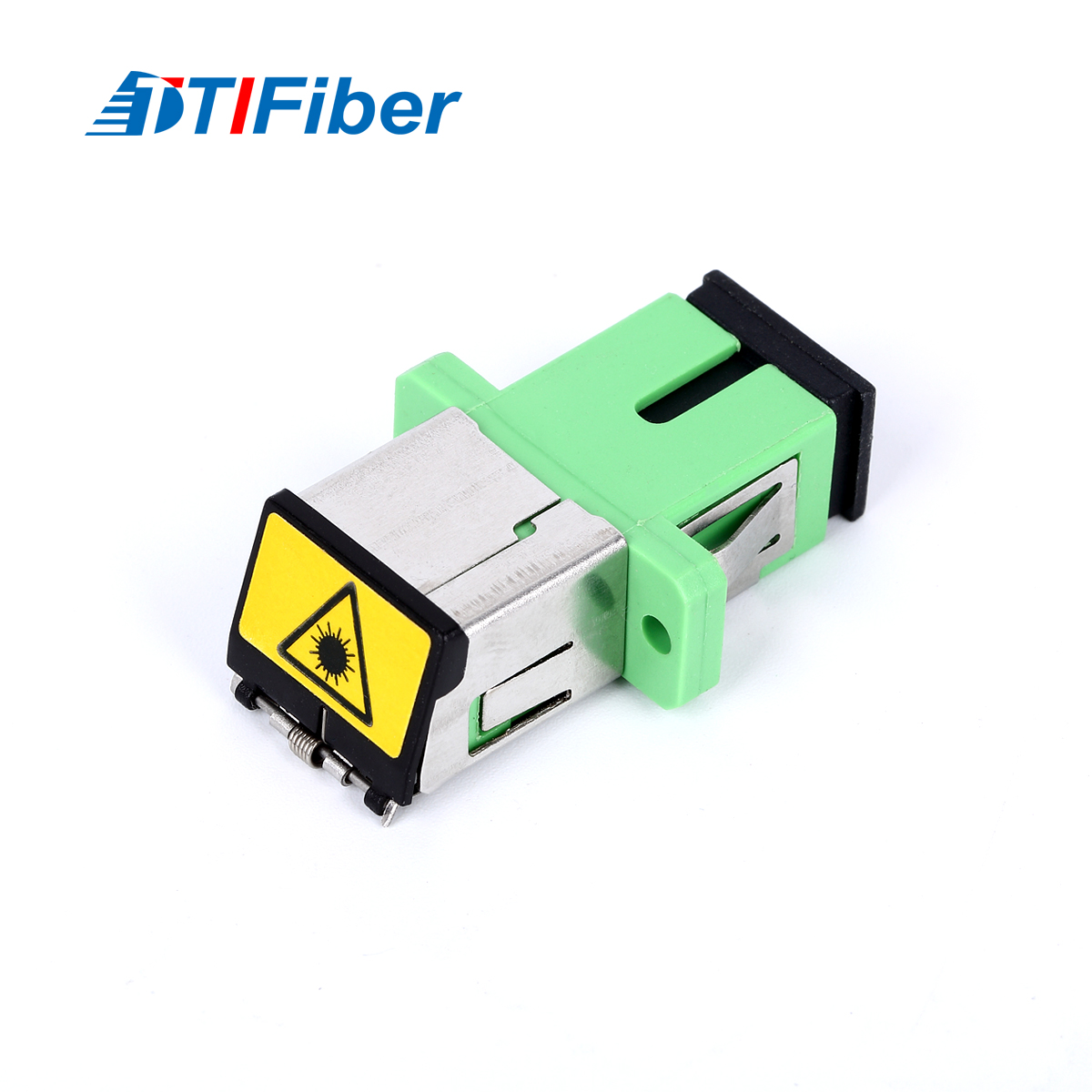

SC Apc To SC UPC Fiber Optic Adapter In Fiber Equipment
Connector Type : SC-SC
Type : Simplex, Duplex, Quad
Sleeve : Zirconia/Ceramic, Copper
Housing : ABS, PBT, PC
End-face : PC, UPC, APC
Structure : Female to Female
Specifications
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price
Usage environment
1. Storage Temperature: -25º C~+85º C
2. Operating Temperature: -25º C~+85º C
Photoelectricity specifications
1. Insertion Loss: <0.2dB
2. Repeatability: ≤ 0.2dB
3. Exchange: ≤ 0.2dB
4. Durability: >1000(times)
LC fiber optic cable adapter
The optical adapter Back Reflection Loss
Theswitching adaptor is High Precision Alignment
Features
-Solid Type Adapter
-Rectangular Type Adapter
-Square Type Adapter
-Metal Body
-Available in Square Type, Solid Type, Rectangular Type, D-shaped Type, and Oval Type
Applications
-Optical distribution frame
-Testing instruments
-Optical fiber communication system interface
ItemLC, SC, ST, FC, MTRJ, MU, SMA, E-2000, etc
TypeMulti-ModeSingle-Mode
Light CharacteristicOperating Wavelength850nm& 1300nm1310nm & 1550nm
Typical Insertion Loss0.2dB & 0.2dB0.2dB & 0.2dB
Mechanical TestingRepeatability≤ 0.2dB
Exchange≤ 0.2dB
Durability> 1000 (Times)
TemperatureStorage Temperature:-25º C~+85º C
Operating Temperature:-25º C~+85º C
| Name | Type |
| Fiber Patch Cord /Jumper | SC FC, ST LC, MPO MTRJ,MU,Armoured,Outdoor,FTTH , Waterproof , SC-LC,FC-LC, ST-FC,ST-ST,ST-LC,FC-SC,LC-FC,ST-SC,SC-SC,LC-LC,OM3,OM4,ODVA |
| Fiber Pigtail | FC,SC,LC, ST,OM3,OM4, |
| Fiber Adapter | SC,FC, ST, LC , MPO, Bare fiber , ST-SC,SC-LC,FC-SC,FC-FC,FC-ST,ST-FC |
| Fiber Connector | LC,SC,ST,FC,MPO,MTRJ,MU,Bare fiber,New types |
| Fiber Splitter | FBT,PLC, |
| Fiber Distribution Box | FDB,FTTH , Waterproof |
| Fiber Terminal Box | TB |
| Fiber Optic splice Closure | Horizonal, Dome |
| Fiber Cable | 2 core ,4core ,6core ,8 core, 12core, 24 core, 48 core ,96core,GYTXW , FTTH Armoured,,Waterproof,MPO,RJ Serious |
| Fiber Attenuator | Variable ,Fixed,Waterproof |
| Fiber Tester and Machine | OTDR Tester ,Fusion Splicer, fiber cleaner,Media converter, Blowing machine |
| Fiber Patch Panel | Fiber patch panel |
| Fiber Loopback | Loopback,MPO lookpack |
