Model No: Fiber Terminal Box

White Case Mini Desktop Fiber Optic Terminal Box For FTTH Network

Product namee : Fiber Terminal Box

Application : FTTH FTTB FTTX Network

Connector type : APC / UPC

Material : PVC / LSZH

Fiber Type : G657A1 G656A2 G652D

Wavelength : 1310nm or 1550nm

Installation : Wall-Mounted or Rack-Mounted

Polish : PC / UPC / APC

Number of port : 1 / 2 / 4

Quality control : 100% test before shipping

minimum order :

1000 pieces

Quantity :

add to cart

Contact Now

White Case Mini Desktop Fiber Optic Terminal Box For FTTH Network
FTTH Network Application White Case Mini Desktop Fiber Optic Terminal Box

Fiber Optic Splitter Distribution Box is made of high impact plastic. It has industry standard user interface.
Adapters, PLC spliters ,pigtails in above pictures are for guidance only, not included in the standard package.
Pre-installation option available upon request when ordering.

1. Features:
1. Small size and light weight for easy installation.
2. Easy installations: ready for wall mount – installation kits provided.
3. Saving space: Double-layer design for easier installation and maintenances:
4. Lower layer for splicing .
5. Upper layer for cross-connecting and fiber distribution.
6. Available for FC, SC, ST, LC adaptors.
7. Fully stable adapter panel, no risk of movement.

2. Mini Terminal Box Specification:

Fiber Type		SM		MM
Normal Fiber OD		125±0.2um		125±0.2um
Connector Type		SC,FC,ST, E-2000, LC, MU, DIN	MTRJ	SC,FC,ST, E-2000, LC, MU	MTRJ
Insertion loss(Typical)		0.2dB	0.4dB	0.2dB	0.4dB
Insertion loss(Max)		0.3dB	0.5dB	0.3dB	0.5dB
Return Loss(Typical)	PC	50dB	35
	UPC	55dB
	APC	65dB
Mating Durability(500 C)		0.2dB
0.Temperature Stability		0.3dB
Operation Temperature		-40°C~+85°C
Storage Temperature		-40°C~+85°C

3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

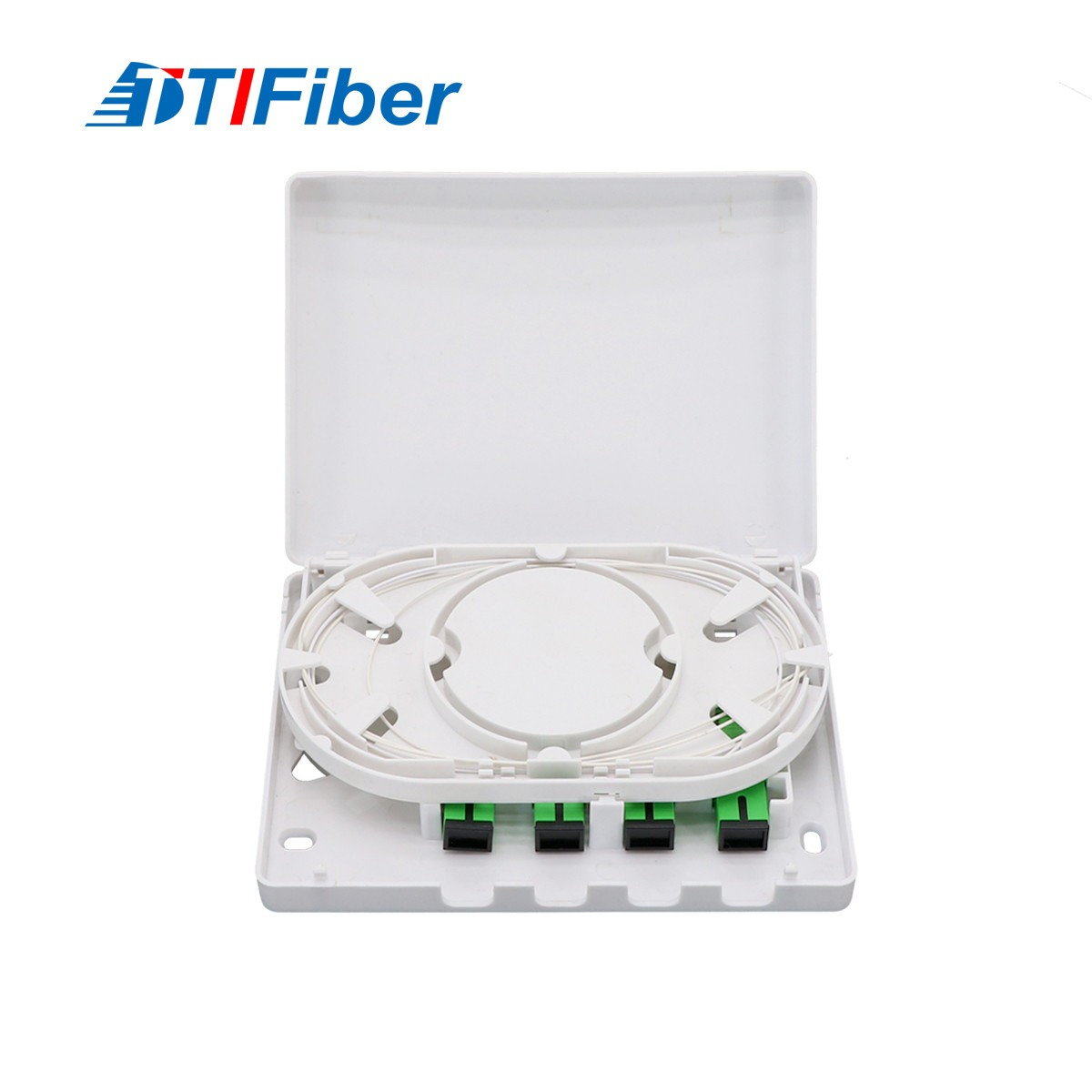

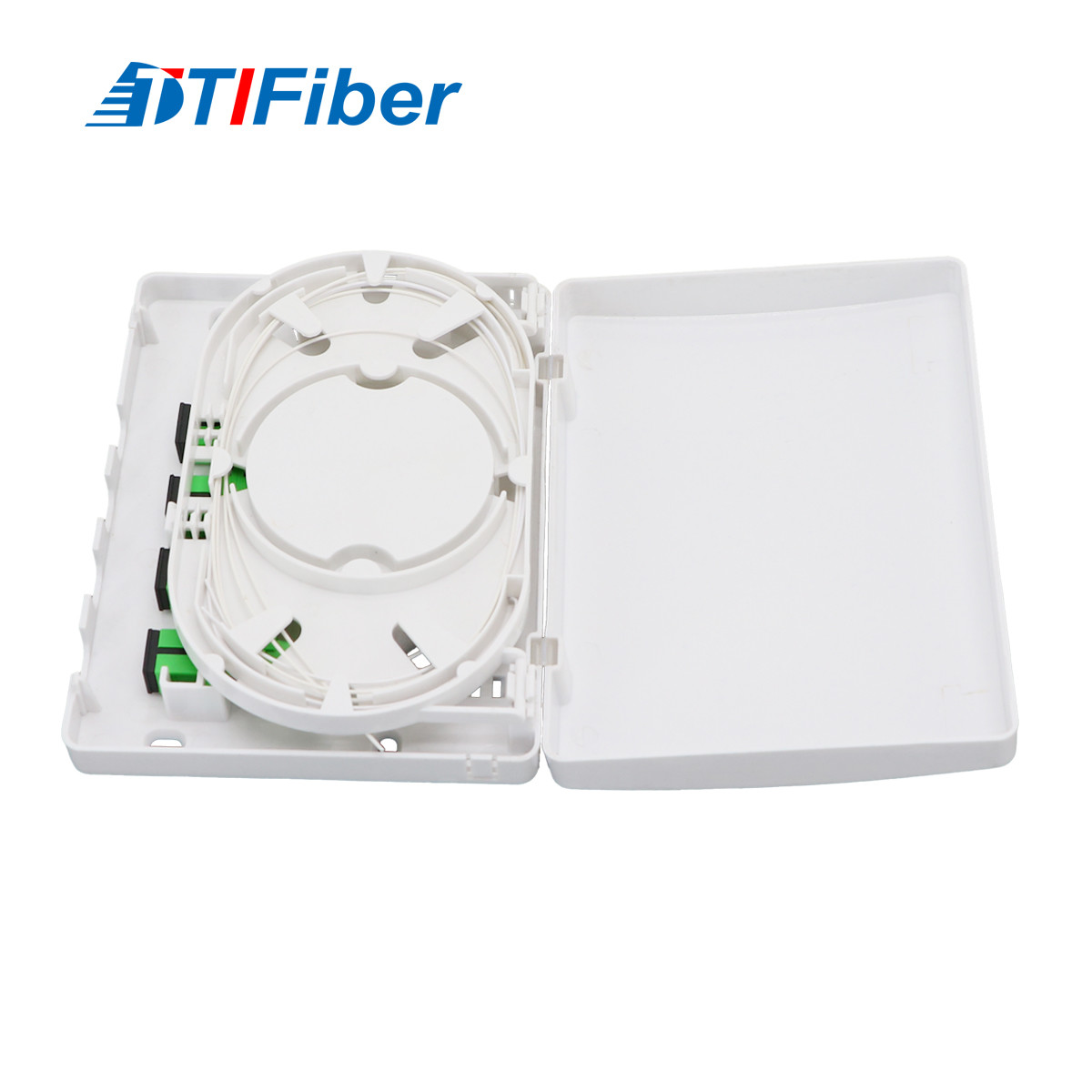

4. Product Picture:
