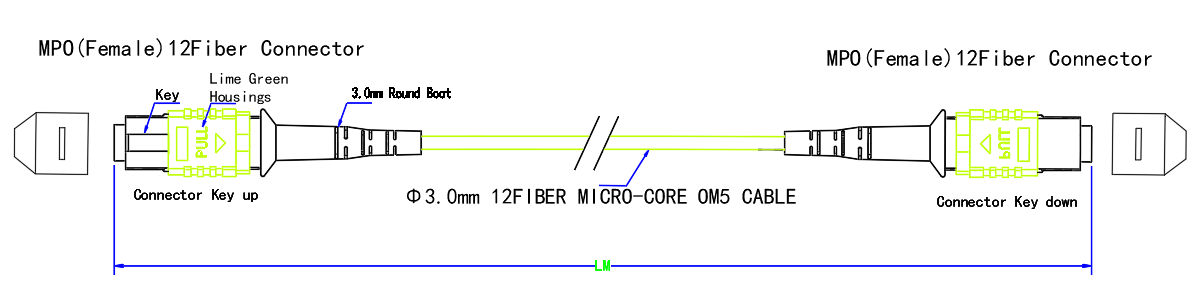

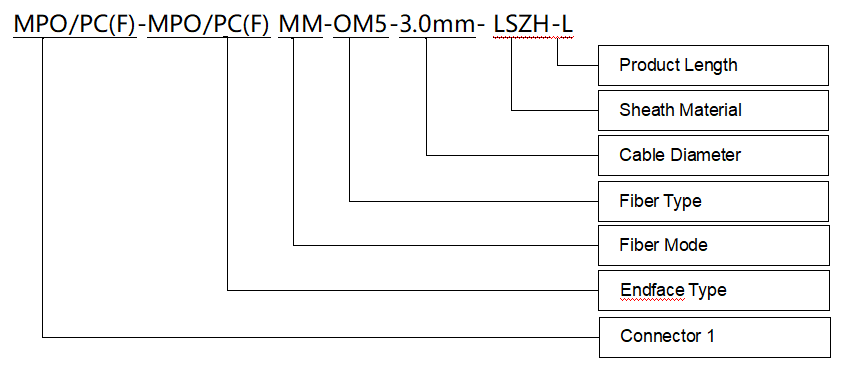

MPO(F)-MPO(F) MM OM5 12F 3.0mm LSZH Lemon Green Fiber Optic Cable
MPO/UPC-MPO/UPC MM 12F OM3 3.0mm LSZH Fiber Optic Cable
Product Length Tolerance（△L）：
|
L≤1m |
-1cm≤△L≤+5cm |
|
1m＜L≤10m |
-10cm≤△L≤+10cm |
|
L≥10m |
-10cm≤△L≤1％*L |
Connector Types
|
Type |
Reference |
Note |
|
|
MPO |
IEC 61754-7 |
Single mode |
APC: Green connectors UPC: Yellow connectors |
|
Multimode |
OM3: Aqua Connectors OM4: Magenta Connectors OM5:Lemon Green Connectorsn |
||
|
MTP |
IEC 61754-7 |
Single mode |
APC: Green connectors UPC: Yellow connectors |
|
Multimode |
OM3: Aqua Connectors OM4: Magenta Connectors OM5:Lemon Green Connectors |
||
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multimode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.30dB Max≤0.70dB |
Typical≤0.15dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥25dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |
Mechanical Characteristics
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
300N (main cable); 150N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
70N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
300N (main cable); 150N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
70N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |

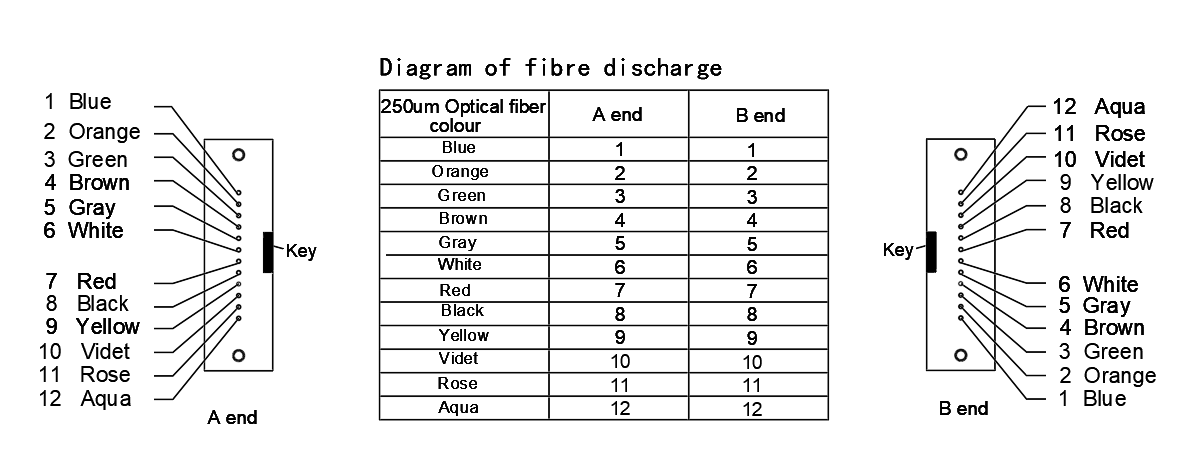

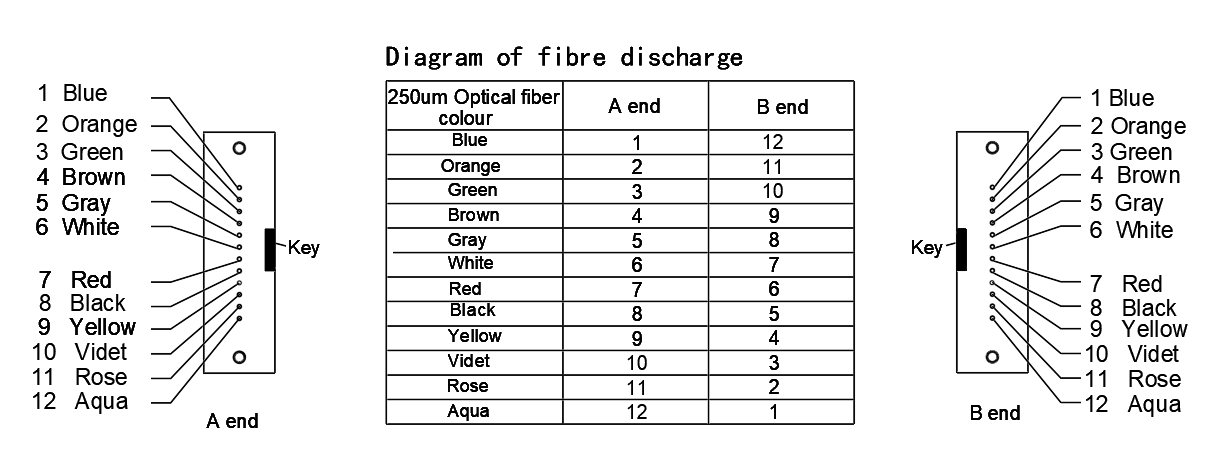

Polarity
Type-A

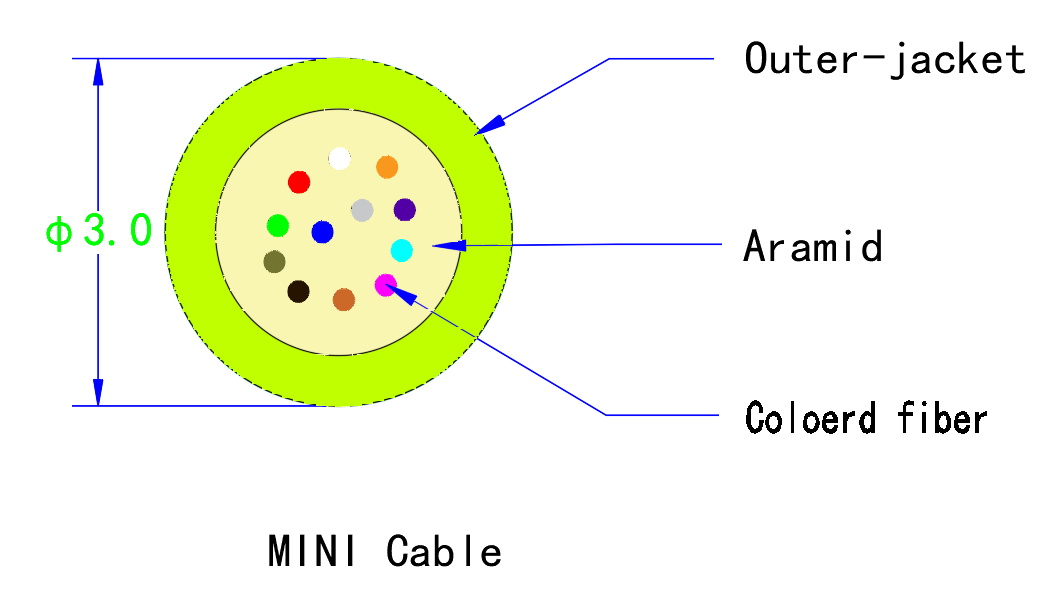

Cable Structure
Technical Specification
|
Fiber Counts |
12F |
|
|
Tensile element |
Aramid Yarn |
|
|
Outer sheath |
Material: |
LSZH |
|
Color: |
Lemon Green |
|
|
Cable |
Diameter |
3.0±0.2mm |
|
Weight |
10±5 kg/km |
|
|
Operating temperature |
-20℃~+60℃ |
|
|
Store/Transport temperature |
-5℃~+60℃ |
|
|
Installation temperature |
-20℃~+60℃ |
|
Fibre colours
|
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
|
Fiber Color |
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
Optical Fiber
|
ITEMS |
UNITS |
SPECIFICATION |
|
|
Fiber Type |
- |
50/125（OM5） |
|
|
Attenuation |
dB/km |
Before Cable |
After Cable |
|
850 nm≤ 2.4 1300 nm≤ 0.6 |
850 nm≤ 3.5 1300 nm≤ 1.5 |
||
|
OFL BW |
MHz•km |
850nm：≥500 1300nm:≥500 |
|
|
Link length |
- |
- |
|
|
N.A |
- |
0.200±0.015 |
|
|
Zero Dispersion Wavelength |
nm |
1295~ 1340 |
|
|
Zero Dispersion Slope |
ps/nm2.km |
1295nm≤ λ0 ≤1310nm：≤ 0.105 1310nm≤ λ0 ≤1340nm：≤ 0.000375 |
|
|
Attenuation vs. Bending |
dB |
≤ 0.1at 850 nm ≤ 0.3at 1300 nm (15mm x2turns) ≤ 0.2at 850 nm ≤ 0.5at 1300 nm (7.5mm x2turns) |
|
|
Core diameter |
mm |
50±2.5 |
|
|
Core-Clad Concentricity |
mm |
≤ 1.5 |
|
|
Cladding Diameter |
mm |
125±1.0 |
|
|
Cladding Non-circularity |
% |
≤ 1.0 |
|
|
Coating Diameter |
mm |
245±7 |
|
|
Proof Test |
Gpa |
≥ 0.69 |
|
Mechanical and Environmental Performance of the Cable
|
Mechanical properties |
Installation |
Operation |
|
Tensile strength |
150N |
300N |
|
Min bend radius |
10D |
20D |
|
Crush resistance |
500N/100mm |
|
|
The mechanical properties of other optical fibers and cables shall meet international standards of IEC 60794. |
||
