MPO/UPC-MPO/UPC MM 12F OM3 3.0mm LSZH Fiber Optic Cable
MPO(F)-MPO(F) MM OM5 12F 3.0mm LSZH Lemon Green Fiber Optic Cable
Product Length Tolerance（△L）：Table 1
|
L≤1m |
-1cm≤△L≤+5cm |
|
1m＜L≤10m |
-10cm≤△L≤+10cm |
|
L≥10m |
-10cm≤△L≤1％*L |

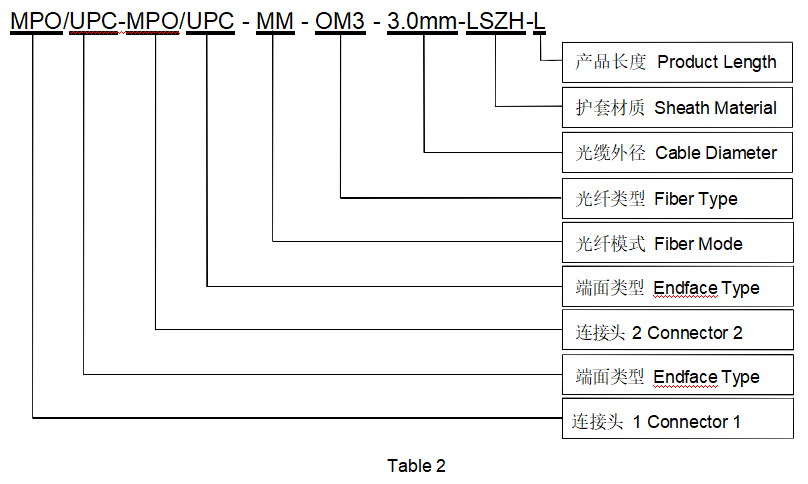

Product Model：
|
Connector1 |
Connector2 |
Endface Type |
Fiber Type |
Cable Diameter |
Sheath Material |
Colour |
|
MPO |
MPO |
UPC |
OM3 |
3.0mm |
LSZH |
Aqua |
|
It can also be customized according to the specifications specified by customers. |
||||||
|
L≤1m |
-1cm≤△L≤+5cm |
|
1m＜L≤10m |
-10cm≤△L≤+10cm |
|
L≥10m |
-10cm≤△L≤1％*L |

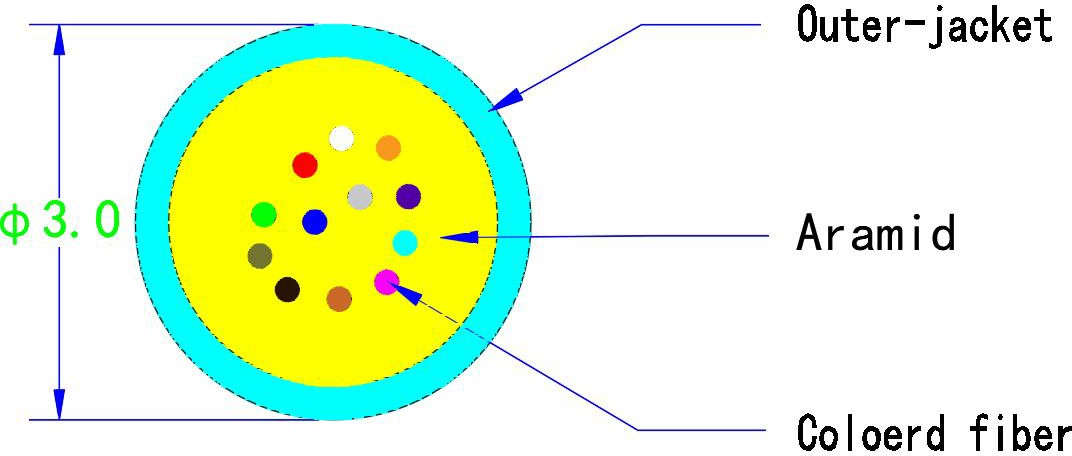

（12Fiber Round Cable）
|
Cable Diameter（mm） |
Inner Sheath Diameter（mm） |
Tension（N）Long term/Short term |
Crush Resistance（N/100mm） Long term/Short term |
|
3.0±0.2 |
0.25±0.05 |
30/100 |
100/300 |
Table 4
|
Item |
Connector |
|
Insertion Loss(dB) |
≤0.75 |
|
Return Loss(dB) |
SM:≥50（UPC） ≥60（APC）; MM:≥25（PC） |
|
Conform to criterion |
IEC61754 |
Test criterion： IEC 61300-2-1
Amplitude：0.75mm
Frequency sweep range：10~50HZ/minute
Time：30minutes
After the test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Impact test
Test criterion： IEC 61300-2-12
Drop height：1.5m
Drop times：5 次/times
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b)The optical performance conforms to Table 5
Mating durability test
Test criterion： IEC 61300-2-2
Durability：500 次/times
After test：
a)No mechanical damage, such as deformation, crack, slack, etc
b)The optical performance conforms to Table 5
Environmental performances
High-temperature test
Test criterion： IEC61300-2-18
Temperature：70℃
Time：96 /hours
After the test：
a) No mechanical damage, such as deformation, crack, slack, etc
b)The optical performance conforms to Table 5
Low-temperature test
Test criterion： IEC61300-2-17
Test criterion：-25℃
Time：96 /hours
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Temperature range：-25℃to + 70℃
Time：96 /hours，12 /cycles
After the test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Damp heat
Test criterion：IEC 61300-2-19
Test condition：40℃，93% RH
Time：96 /hours
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Table 5
|
No. |
Test Item |
Insertion Loss variation（dB） |
|
1 |
Vibration test |
≤0.2 |
|
2 |
Impact test |
≤0.2 |
|
3 |
Mating durability test |
≤0.2 |
|
4 |
High-temperature test |
≤0.2 |
|
5 |
Low temHigh-temperatureperature test |
≤0.2 |
|
6 |
Change of temperature |
≤0.2 |
|
7 |
Damp heat |
≤0.2 |
Opration temperature: -25℃～+70℃
Installation temperature: -10℃~+60℃
Storage temperature: -40℃~+85℃
Environmental protection
Products meet ROHS.
Packaging, Transportation, and Storage
1.Identification
The product packaging box (bag) should be marked with the product model and specifications,
optical performance parameters, production batch number, and other information.
2. Packaging
After the coils are tied up, they are packed in ziplock bags and then packed in cartons according
to the customer's order quantity
3. Transportation
When the products need to be transported long distance, you need to use cardboard boxes as
outer packing, on the packing boxes, accordienvironmentsrovisions of the national standards,
do the corresponding marks
4. Storage
Products should not be stored in open air, wet or seriously corroded environment for a long time
Note: the above specifications can be produced according to the customer's requirements.
