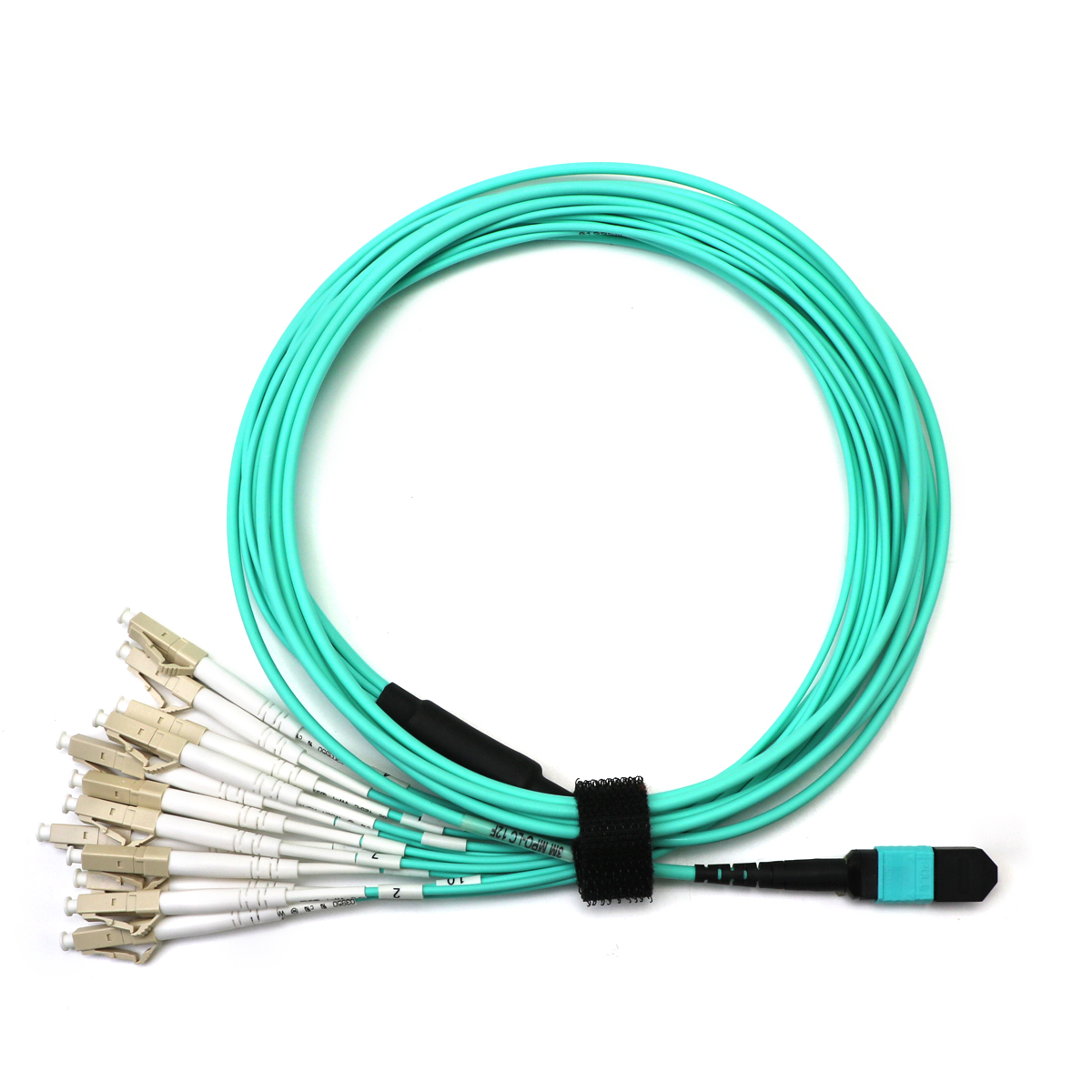

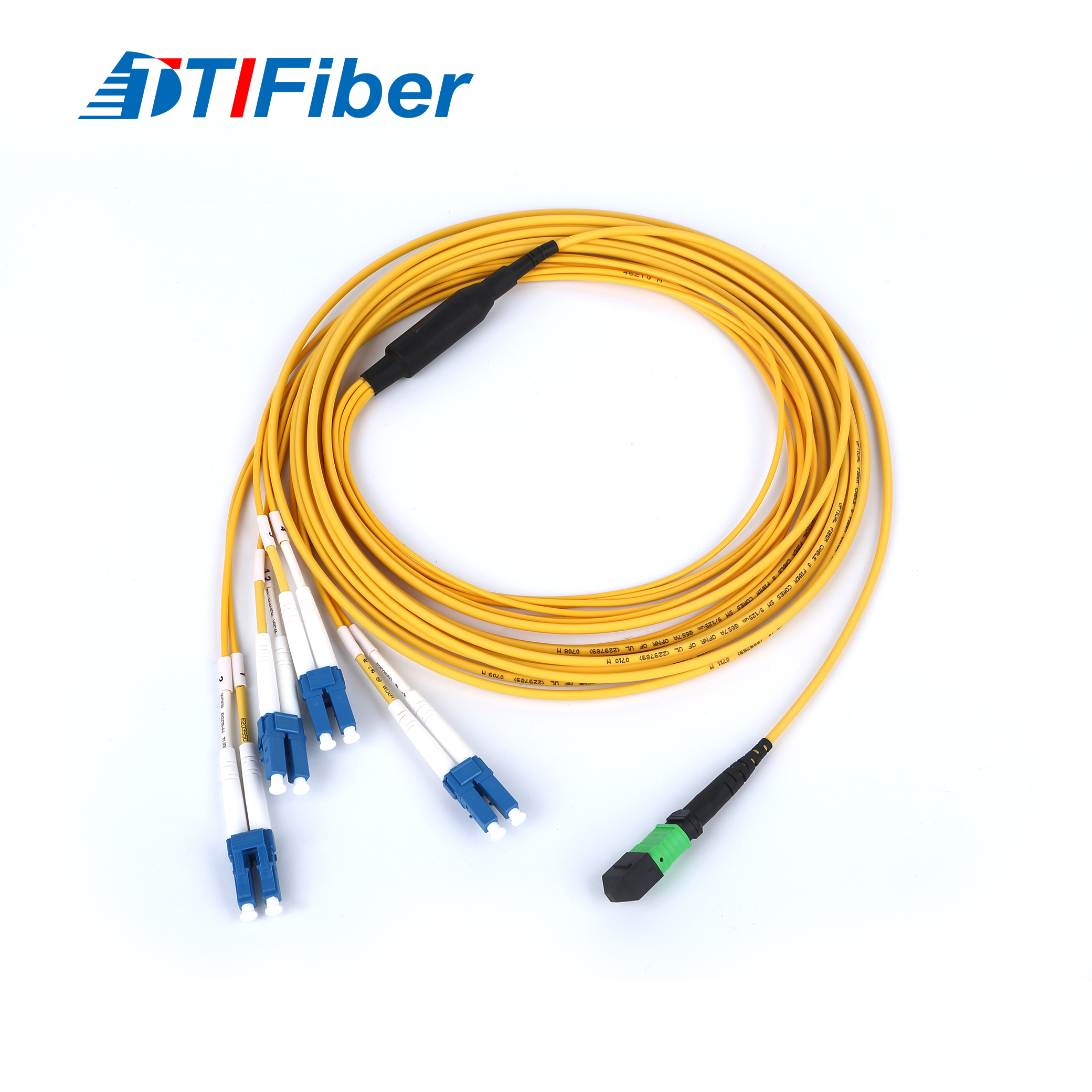

MPO MTP Branch Fiber Optic Patch Cord

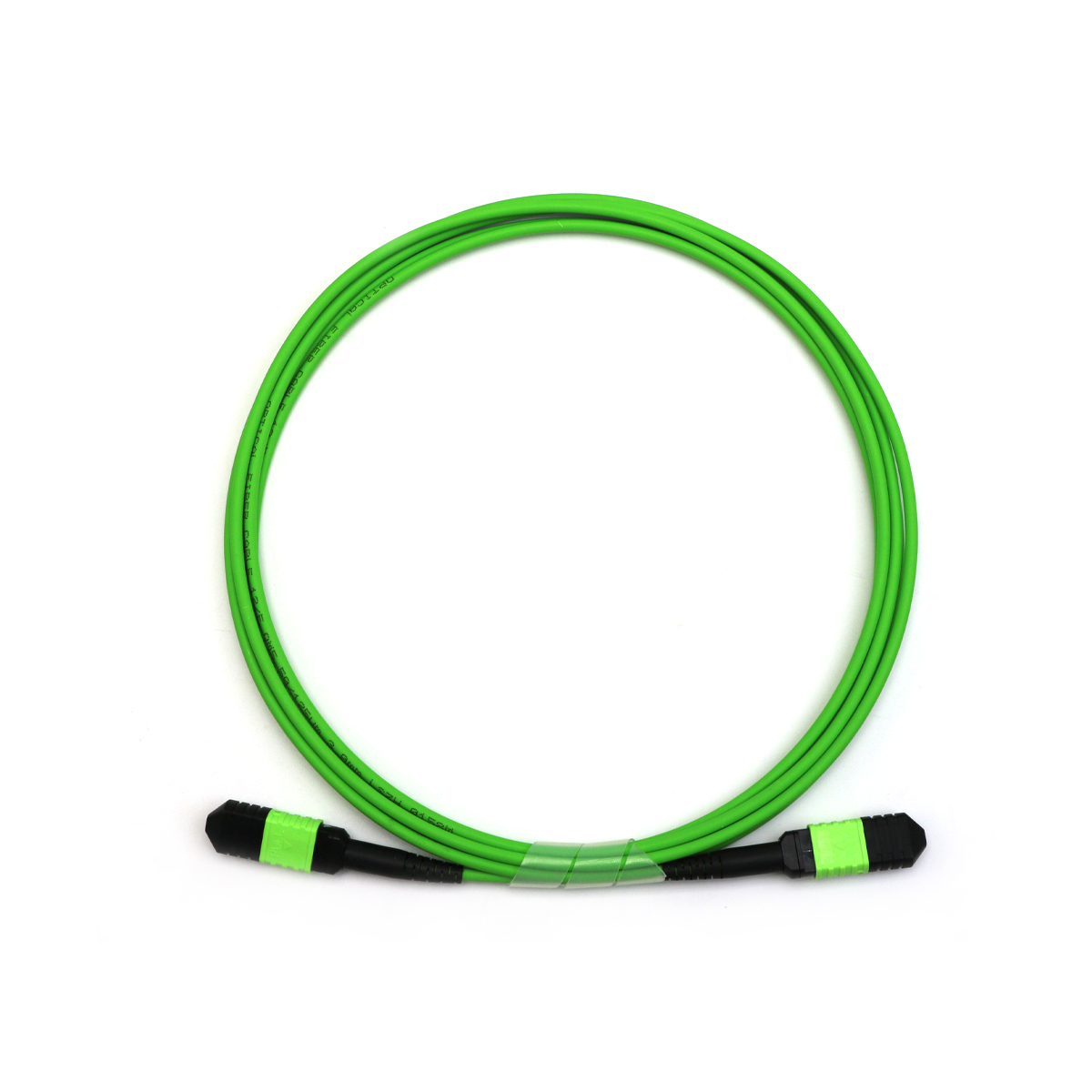

MPO(F)-MPO(F) MM OM5 12F 3.0mm LSZH Lemon Green Fiber Optic Cable
fiber cores into a small package to achieve high-speed data transmission and fiber network expansion.
In the name of MPO fiber, "M" stands for "Multi-fiber", i.e., multi-core fiber, and "PO" stands for
"S", i.e., optical fiber that can be plugged and unplugged.
Puck) or MPO (Metal Plug Optical) package, in which the MTP package is to connect multiple fiber
cores together through metal pins, while the MPO package is to connect multiple fiber cores through
the fiber optic socket.

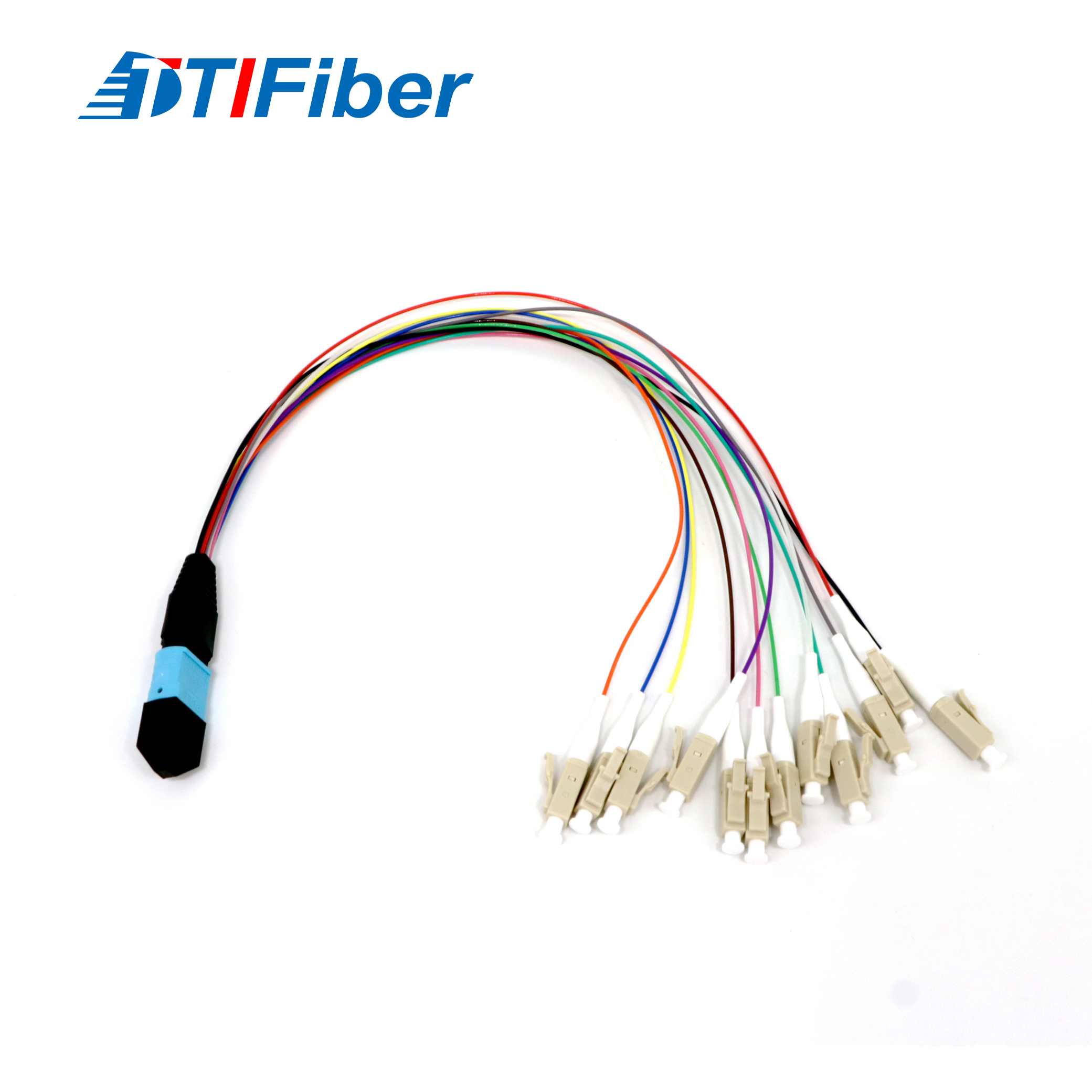

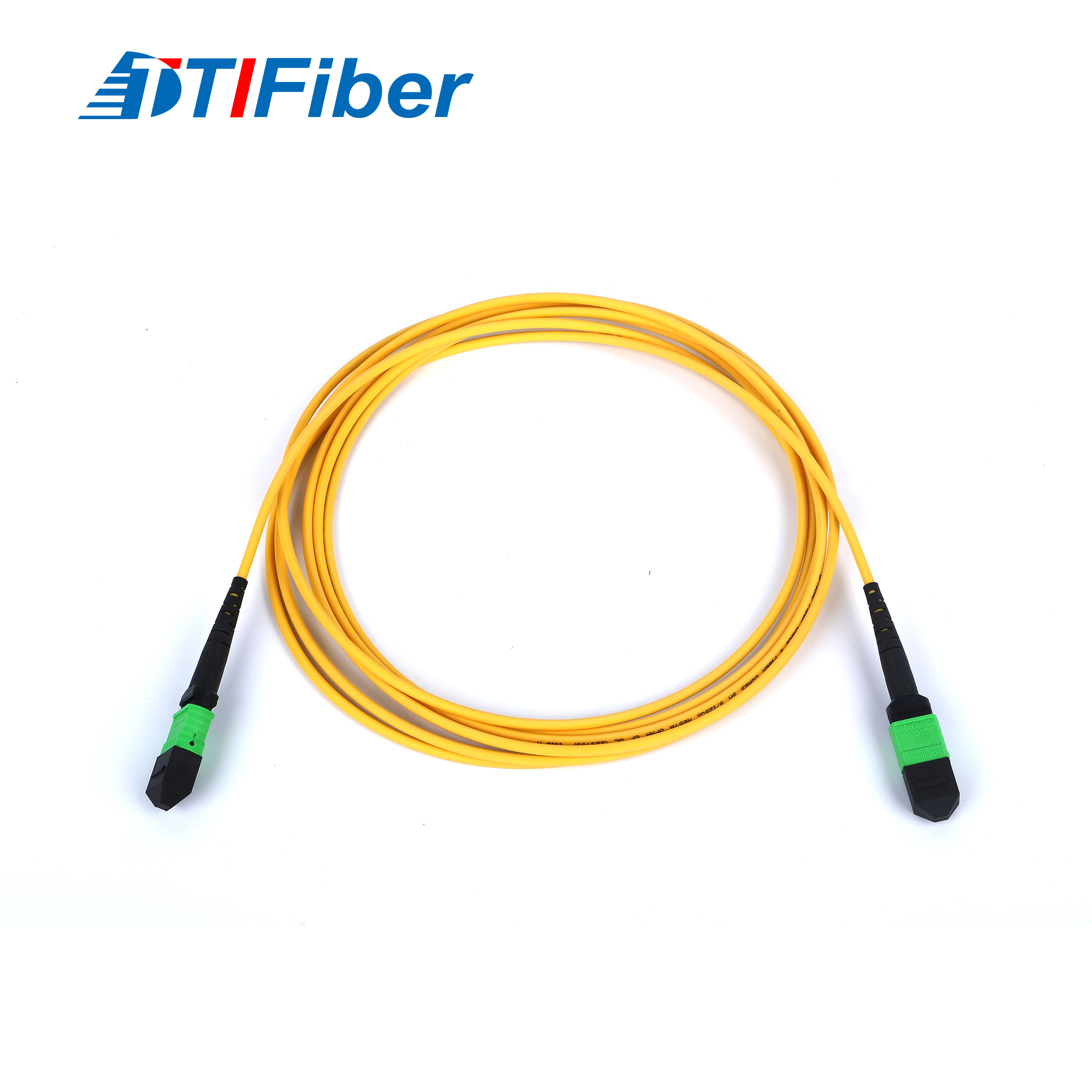

TTI Fiber MPO Patch Cord
The MPO patch cord is a high-density fiber optic transmission patch cord consisting of a connector
and a fiber optic cable. The MPO connector, being part of the MT series, is a multi-core,
multi-channel plug-in connector. Its insert end face is precisely connected with the guidance pins,
which have a diameter of 0.7mm on the left and right sides.
The MPO patch cord offers fast and reliable connections and transmissions by simultaneously
connecting multiple optical fibers. It features multiple fiber channels and alignment pins, supporting
up to 12 or more fiber channels, thus providing high-capacity fiber optic transmission. Although the
MPO patch cord has the same dimensions as an SC connector, its density is several times higher,
significantly saving on line ports and cable space. This allows for higher-density cabling in limited
spaces, better adapting to future network upgrades, expansions, and changes.
transmission systems, and CATV networks. It is increasingly being used in active optical cable
components such as AOCs and QSFPs.

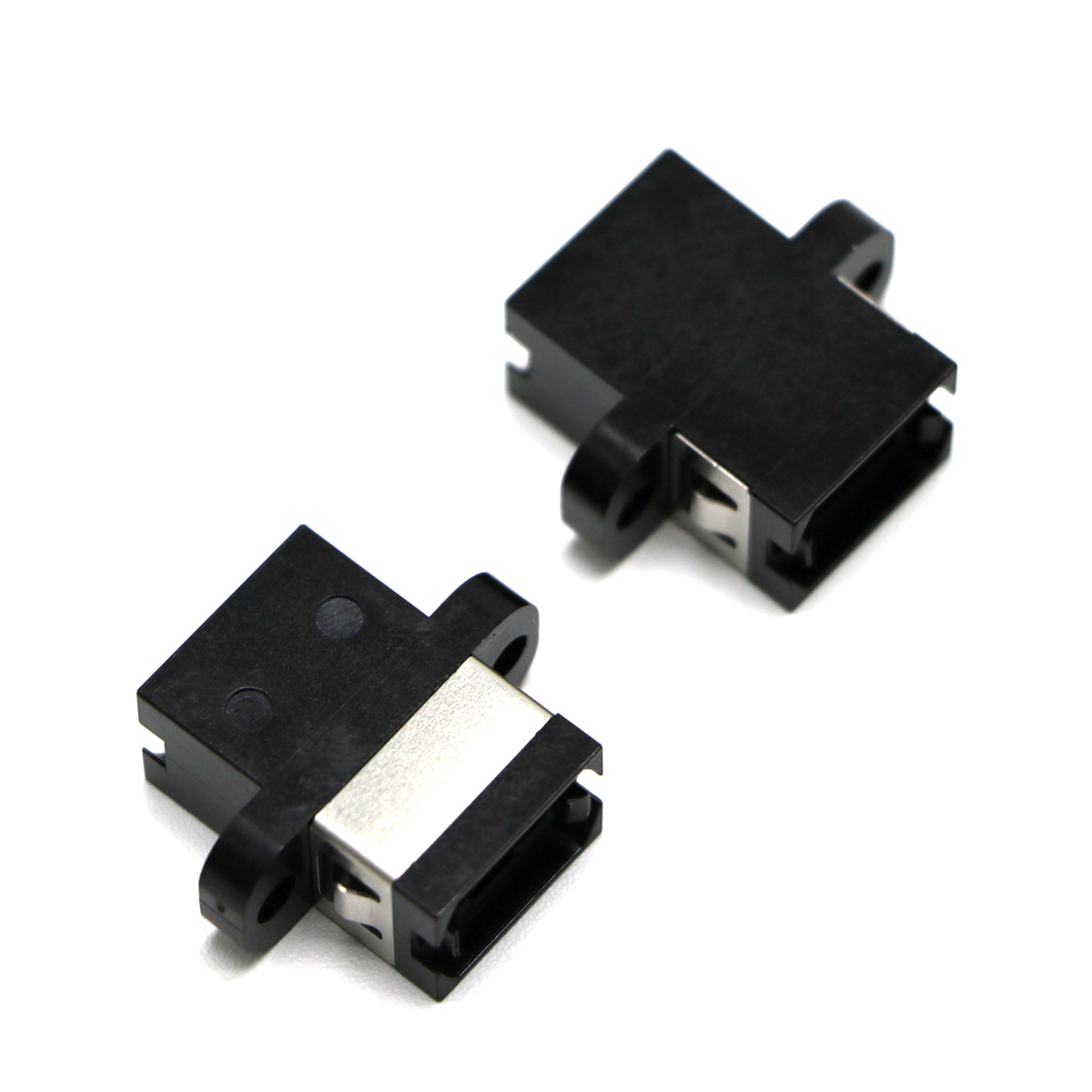

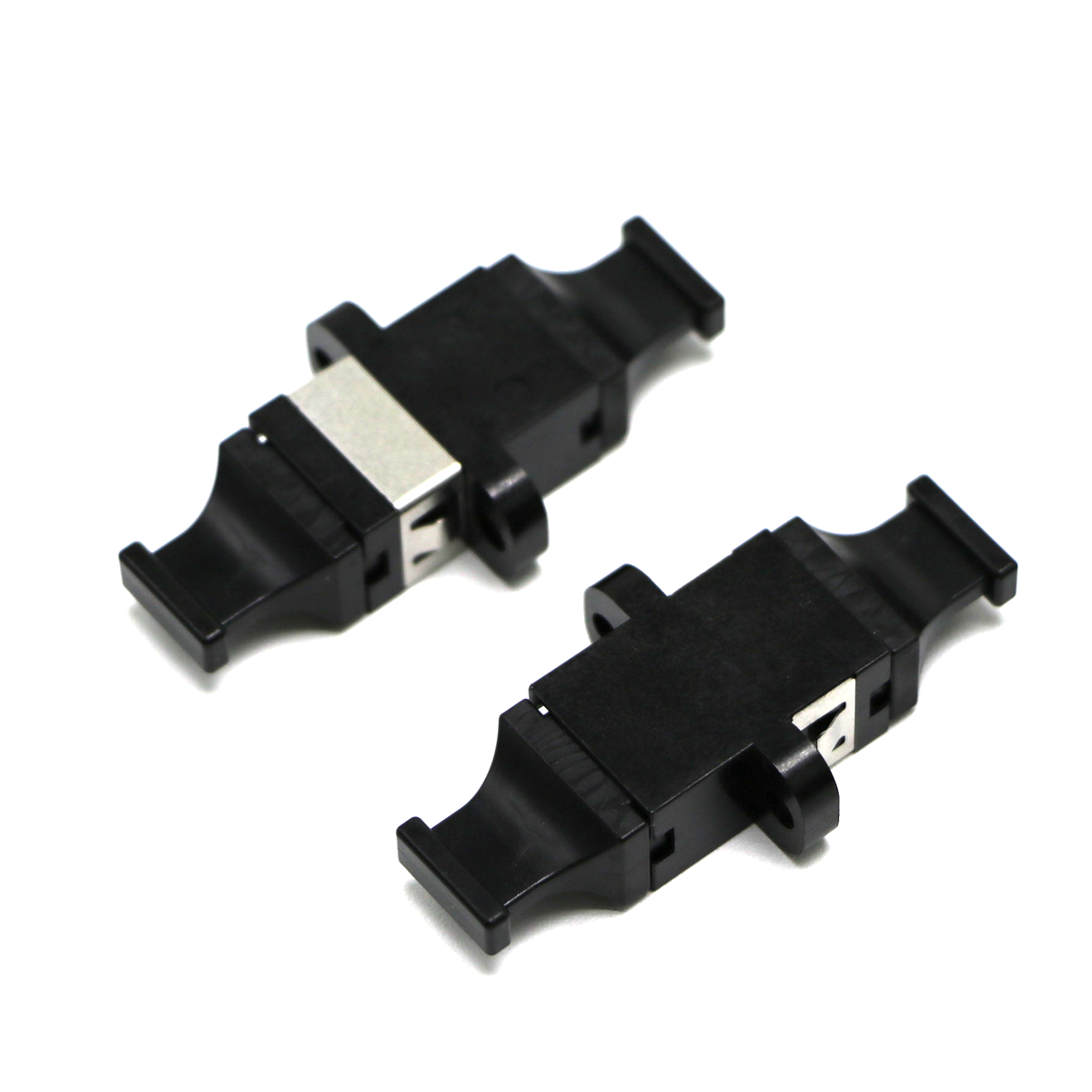

TTI Fiber MPO Fiber Optic Adapter

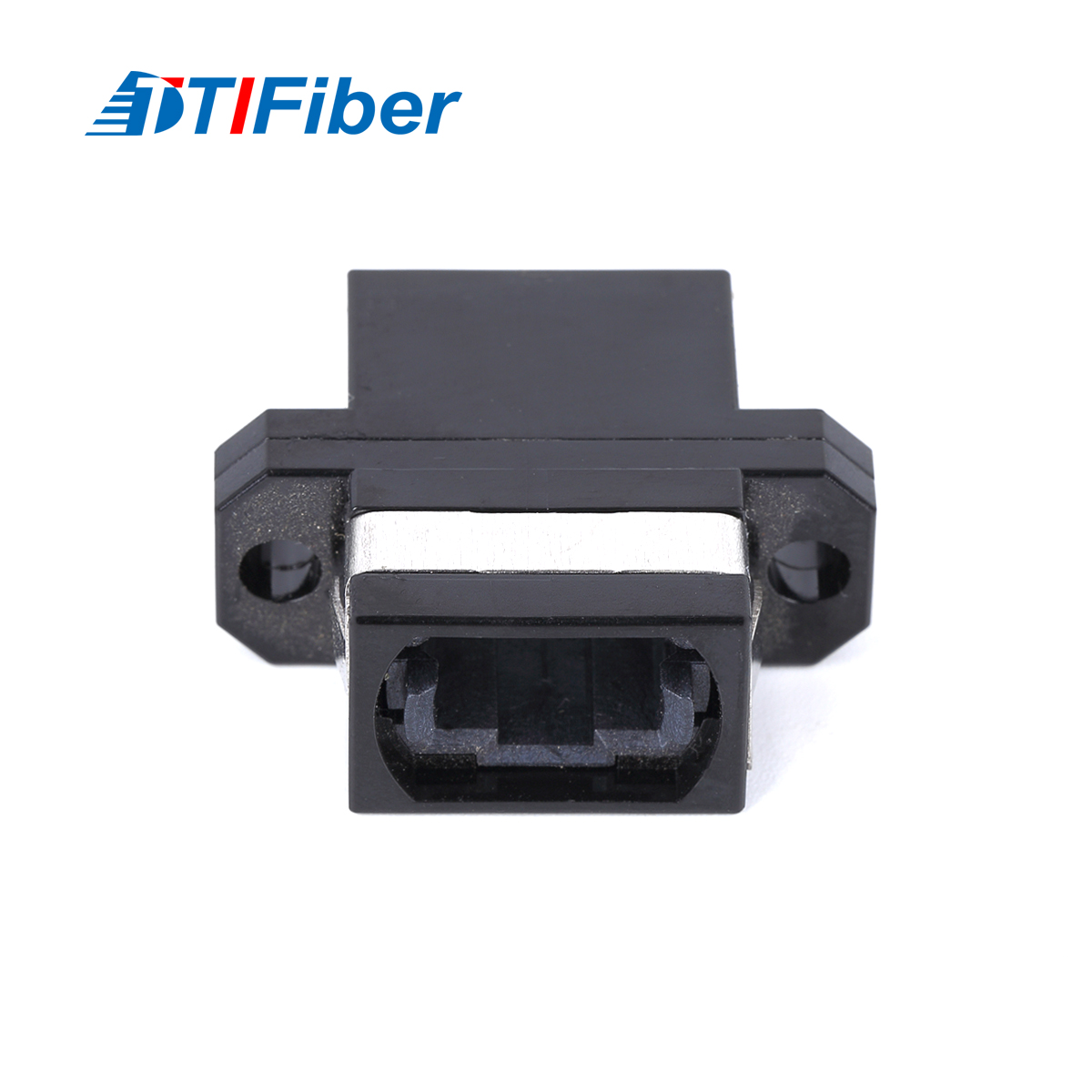

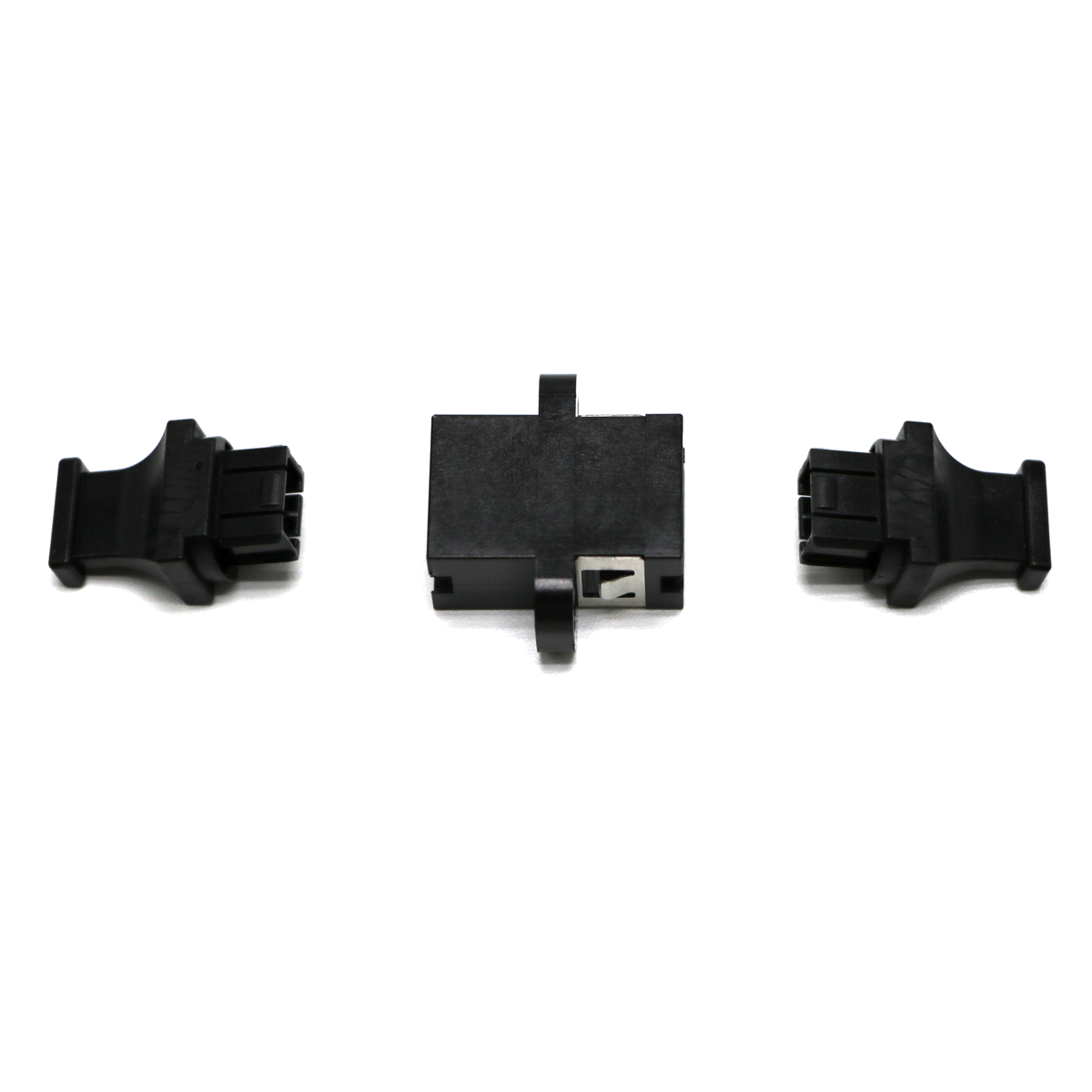

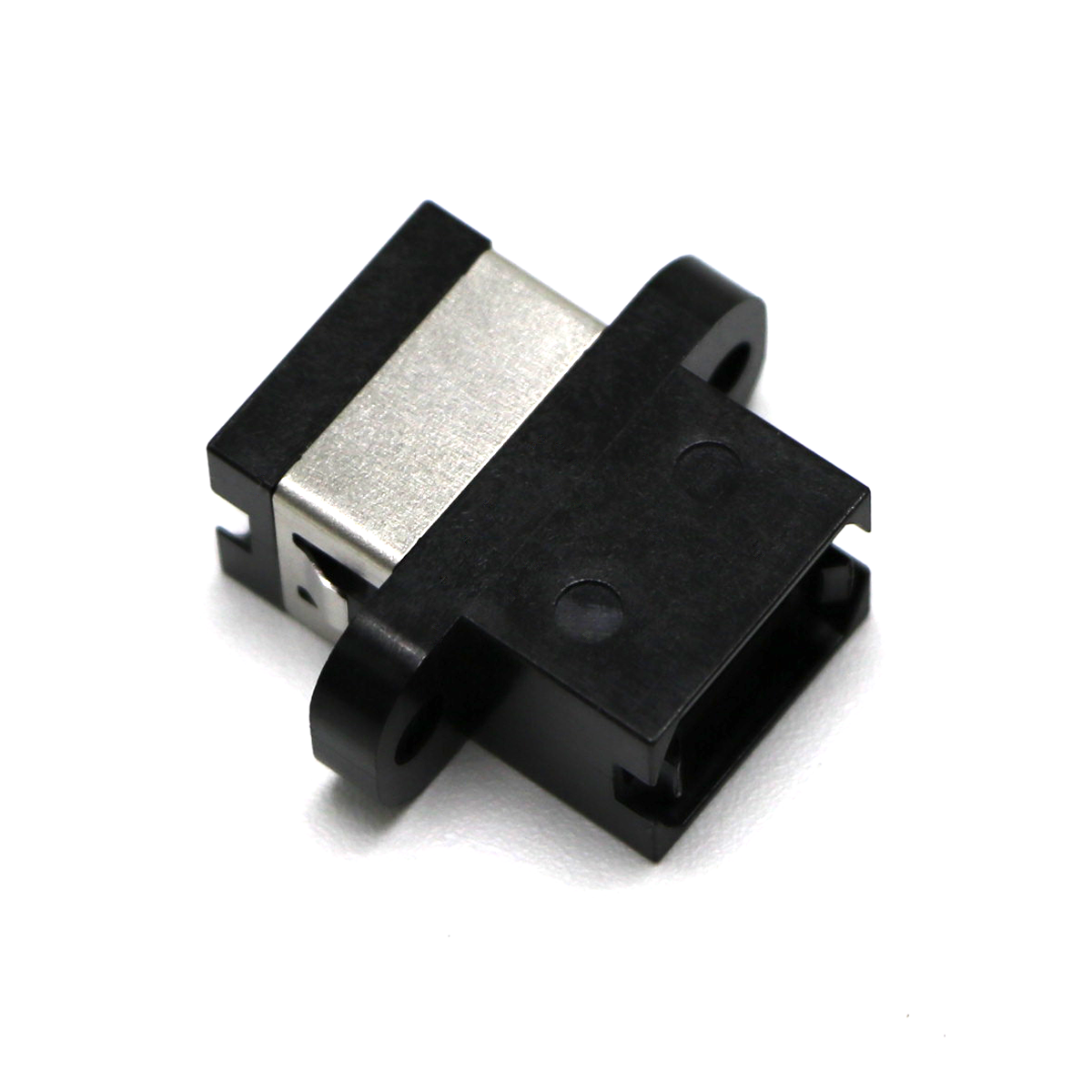

The MPO fiber optic adapter is a type of fiber optic connector used to connect two fibers for the
purpose of transmitting optical signals. It is commonly utilized in fiber optic communication
networks, data centers, enterprise networks, and testing and measurement applications.
The MPO fiber optic adapter stands out for its numerous advantages, including high density, high
bandwidth, low insertion loss, and low return loss. Its multi-channel design allows for the
simultaneous connection of multiple fibers, enhancing the transmission efficiency and stability of
the fiber optic connector. Furthermore, the MPO fiber optic adapter boasts a compact structure
and convenient plug-and-play operation, facilitating easier installation and maintenance.
The MPO fiber optic adapter typically consists of two parts: the plug and the socket. The plug
section is usually made of ceramic or metal, ensuring excellent optical performance and mechanical
strength. The socket section, on the other hand, is typically made of plastic or metal, providing
superior durability and stability. During use, the plug and socket align precisely and mate securely
to establish the transmission and connection of optical signals.
TTI Fiber MPO Fiber Optic Loopback
MPO fiber optic loopback is a type of fiber optic device with the following features and functions:
Multi-fiber connection: The MPO interface supports up to 12, 24, or even higher numbers of fiber
cores, allowing simultaneous processing of multiple signals and improving the utilization of fiber
optic lines.
Unidirectional transmission: The internal optical components ensure that optical signals can only
propagate in one direction, preventing signal reflection and interference, and improving signal
quality and transmission reliability.
High isolation: It provides high isolation, effectively blocking optical signals from the opposite
direction and preventing signal crosstalk and interference.
Compact size: With a small and sleek design, it is easy to install and use in limited spaces,
making it particularly suitable for places that require high-density fiber optic connections,
such as data centers and enterprise networks.
In addition, MPO fiber optic loopback are often used in fiber optic communication systems
as key components for signal distribution, isolation, or protection. They can also be used for
signal loopback in testing systems or network systems, allowing for the localization of
potential issues and effective testing and evaluation of individual components, interfaces,
and networks on fiber optic networks.
TTI Fiber MPO Fiber Optic Terminal Box
MPO fiber optic terminal box is a kind of terminal equipment used in optical fiber communication
systems, mainly used to achieve the functions of terminal connection of optical cables, connection
of optical cables and pigtails, and branch connection of optical cables.
The MPO fiber optic terminal box has the characteristics of compact structure, convenient
installation, and simple maintenance, which is suitable for use in indoor and outdoor environments.
It can be connected with various types of optical cables and pigtails, and supports multiple optical
fiber interface standards and transmission protocols.
In addition, the MPO fiber optic terminal box also has good lightning protection, moisture proof,
dust proof and other performances, which can ensure the stable operation of the optical fiber
communication system. Therefore, it plays an important role in the optical fiber communication
network and is one of the important equipment to guarantee communication quality and
network security.

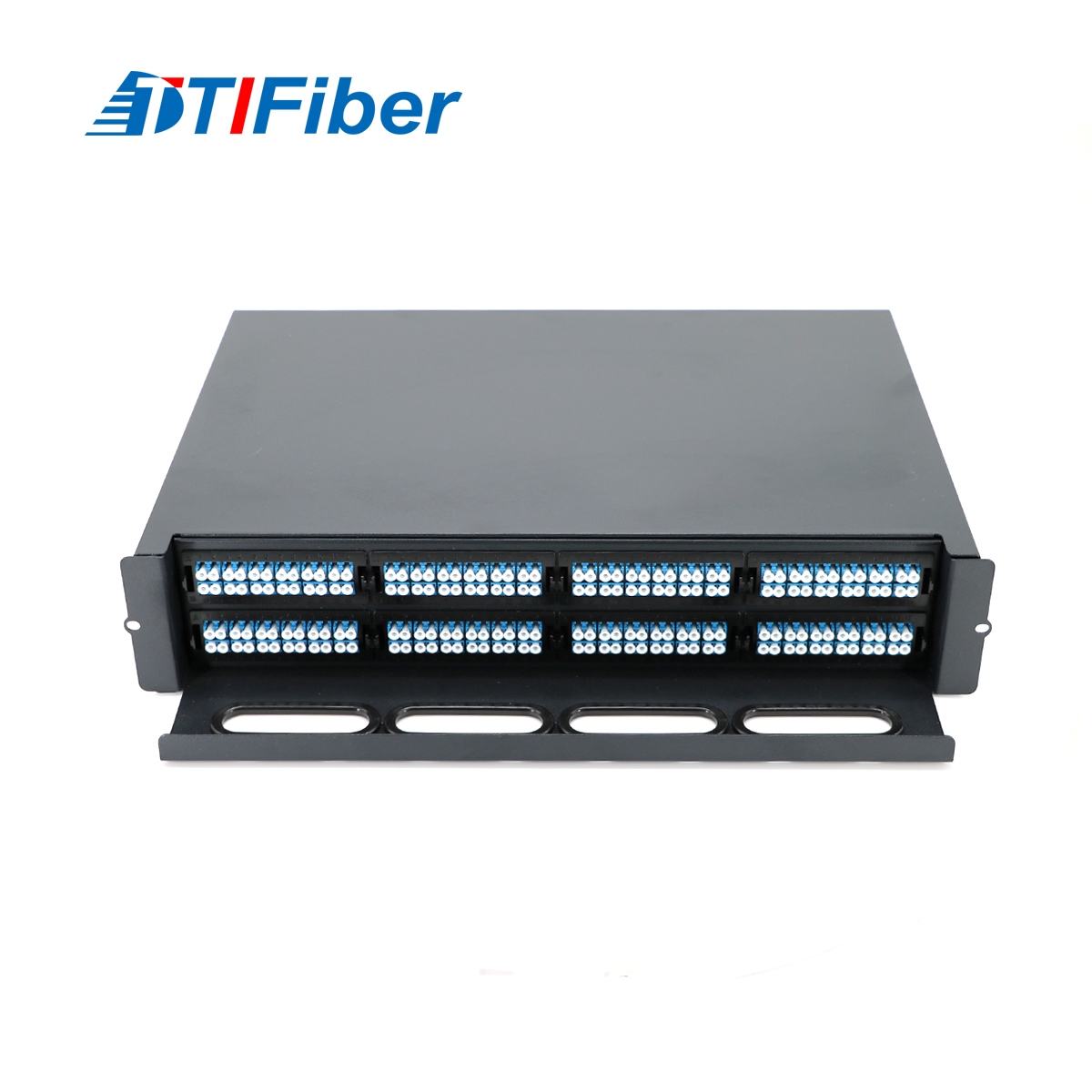

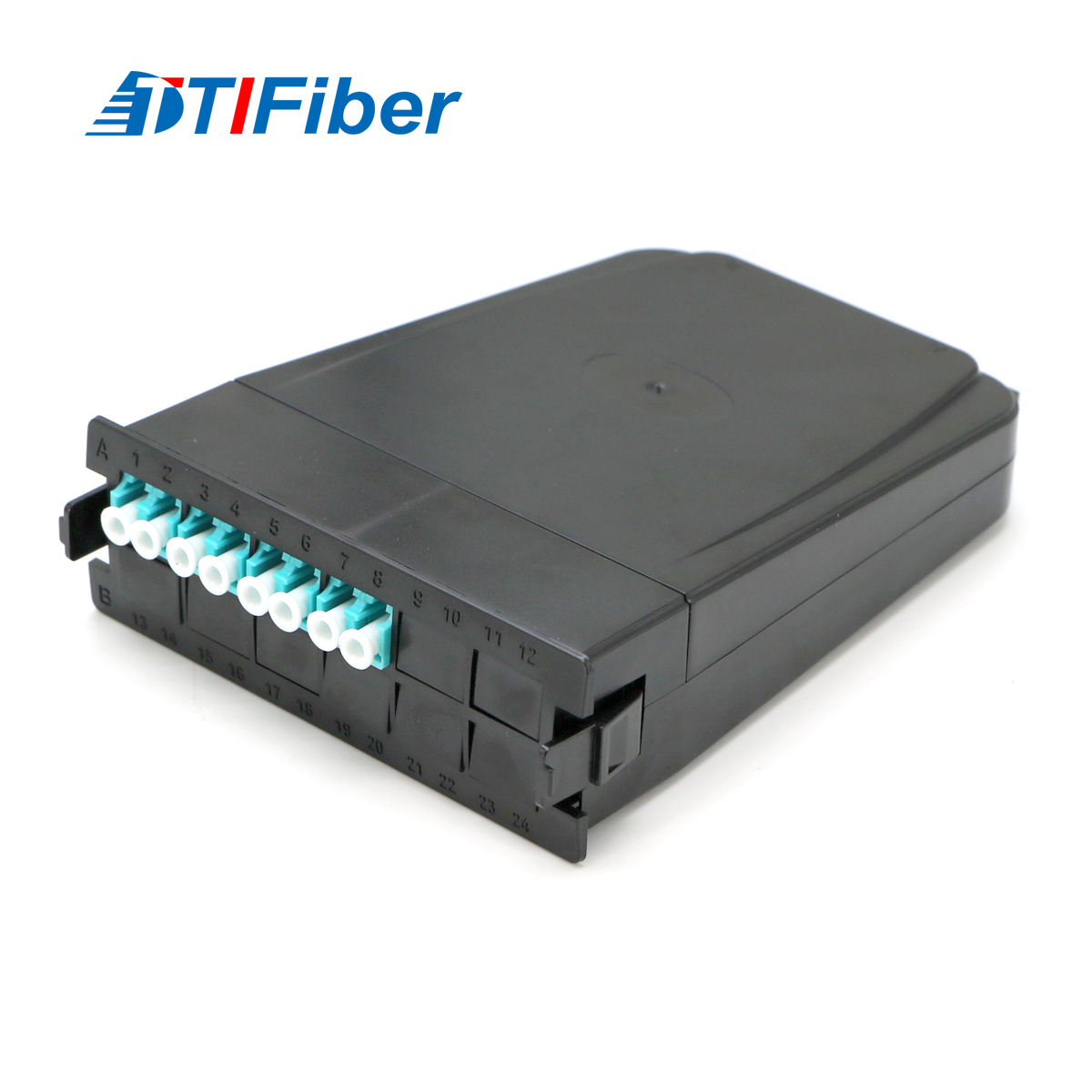

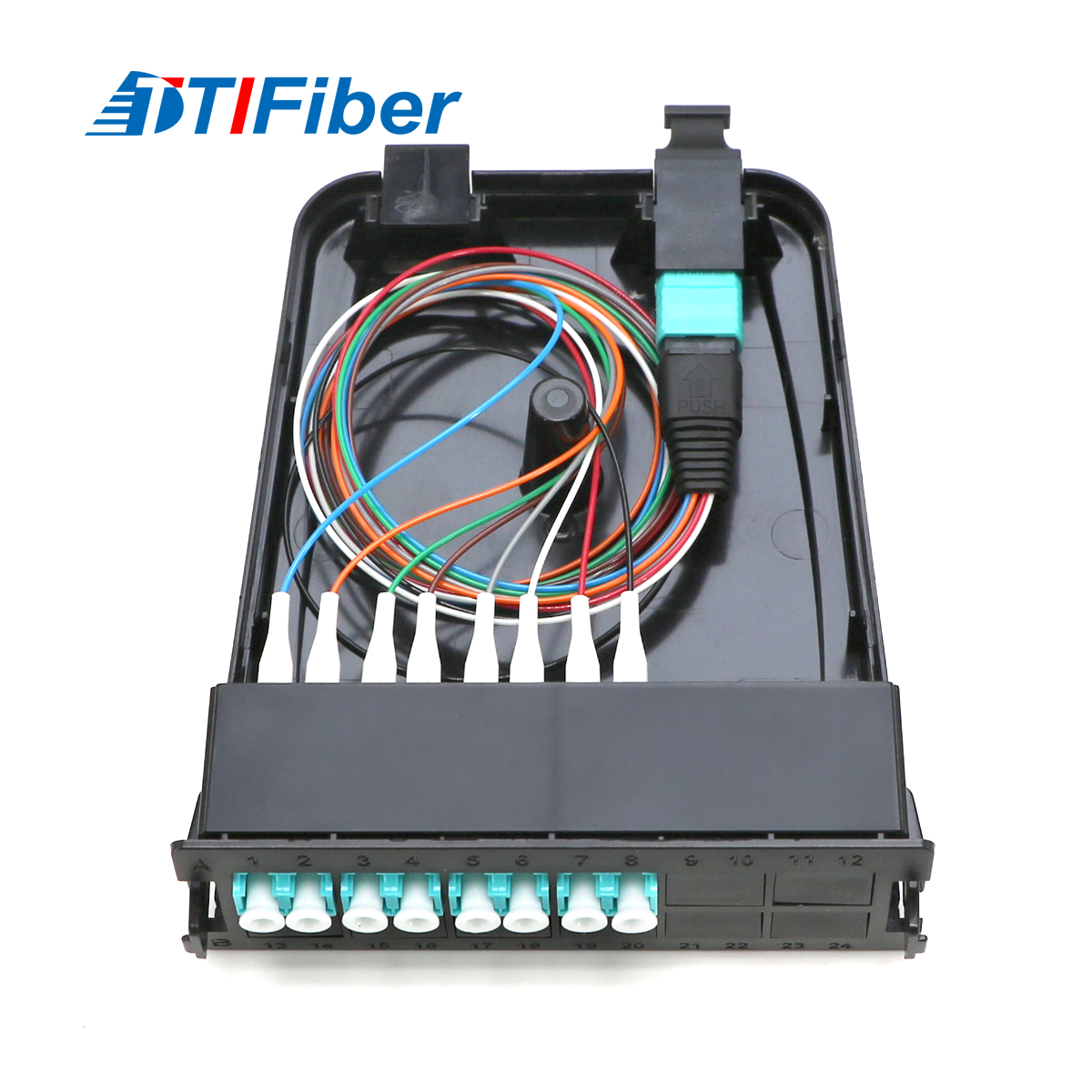

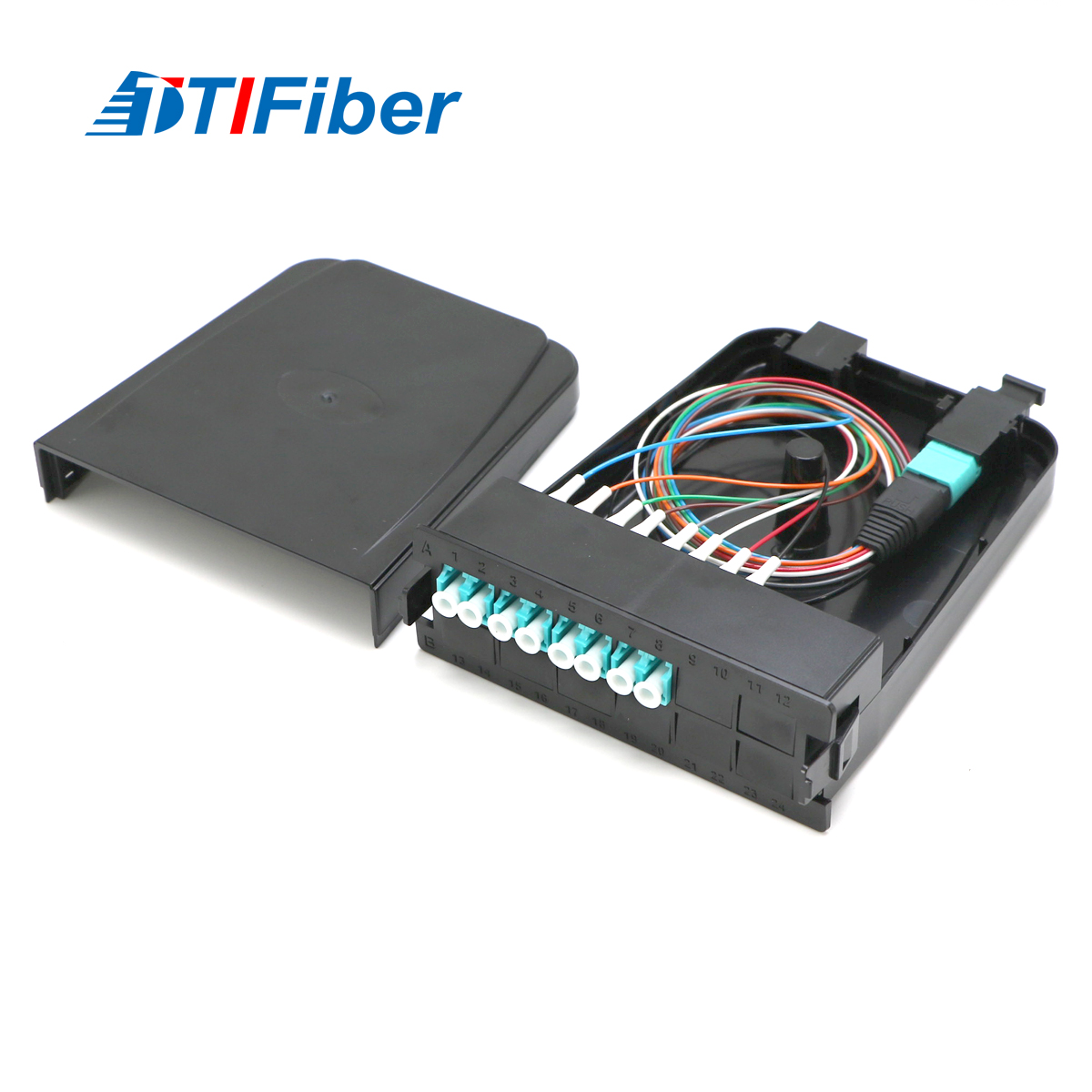

MPO Module Box
typically has multiple ports, each capable of accommodating an MPO connector for connecting
multi-fiber optical cables. MPO module boxes are widely used in data centers, enterprise
networks, telecommunications networks, and other fields to achieve high-speed, high-density
fiber optic connections.
high-speed, high-density fiber optic connections.
Ease of Installation: MPO module boxes adopt a plug-and-play design, allowing quick and
convenient fiber optic connections and disconnections.
Good Compatibility: MPO module boxes are compatible with various types of fiber optic
equipment, such as fiber optic switches, fiber optic routers, fiber optic patch panels, etc.
High Reliability: MPO module boxes are made of high-quality materials and manufacturing
processes, ensuring high reliability and stability.
High Flexibility: MPO module boxes can achieve different fiber optic topologies and configurations
by rearranging the fibers inside the MPO connector.
feature is that one end uses an MPO single-ended 12-core or 24-core connector, while the other
end uses an LC/SC connector. This design enables modularization and plug-and-play features when
connecting pre-terminated backbone cables and equipment jumpers within the pre-terminated
module box, thus improving work convenience and efficiency.
