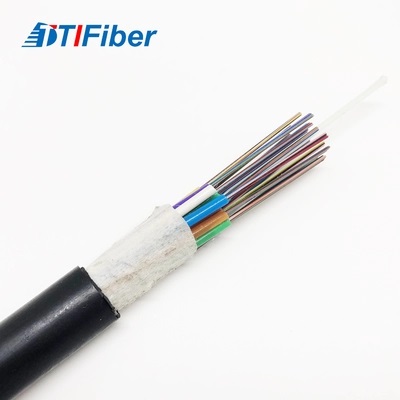

9/125 vs 50/125 Fiber: What’s the Real Difference—and When Does It Matter?

In fiber optic networking, few specifications carry as much weight—or confusion—as core/cladding dimensions. The notation “9/125” or “50/125” appears on datasheets, patch cords, and transceiver labels, quietly dictating everything from bandwidth and distance to cost and compatibility. But what do these numbers actually mean? And why does choosing the wrong one doom a network before it’s even lit?

At first glance, both are glass fibers with a 125-micron cladding—the universal standard for mechanical handling and connectorization. But their core sizes (9 µm vs. 50 µm) place them in entirely different optical universes: one optimized for long-haul precision, the other for short-reach efficiency.

Let’s go beyond the basics and explore the physics, applications, and strategic implications of this fundamental divide—so you can choose not just correctly, but confidently.

What Do “9/125” and “50/125” Actually Mean?

These numbers refer to the core and cladding diameters of an optical fiber, measured in micrometers (µm):

• 9/125 µm: A single-mode fiber (SMF) with a 9 µm core and 125 µm cladding.
• 50/125 µm: A multimode fiber (MMF) with a 50 µm core and 125 µm cladding.

The cladding diameter is standardized across nearly all telecom and datacom fibers to ensure compatibility with connectors (LC, SC, etc.), splicing equipment, and installation tools. But the core size determines how light propagates—and that changes everything.

Why Does Core Size Dictate Single-Mode vs. Multimode Behavior?

It all comes down to waveguide physics and the normalized frequency (V-number):

V = (2π × a × NA) / λ
where a = core radius, NA = numerical aperture, λ = wavelength

When V < 2.405, only the fundamental mode (LP₀₁) can propagate—this is single-mode operation.
When V > 2.405, multiple light paths (modes) travel simultaneously—this is multimode operation.

For a 9 µm core at 1310 nm (typical SMF wavelength), V ≈ 2.2 → single-mode.
For a 50 µm core at 850 nm (typical MMF wavelength), V ≈ 18 → hundreds of modes.

This isn’t arbitrary—it’s a deliberate engineering choice:

• 9/125 eliminates modal dispersion by allowing only one path for light.
• 50/125 accepts multiple paths to ease coupling with low-cost light sources (like VCSELs).

The result? Two fibers built for opposite ends of the performance spectrum.

How Do Their Performance Characteristics Compare in Real Applications?

Key Insight: Single-mode trades higher transceiver cost for virtually unlimited reach and future-proofing. Multimode trades limited distance for lower system cost in short-reach environments.

Why Is 50/125 Preferred Over 62.5/125 in Modern Networks?

Historically, 62.5/125 µm (OM1) was common—but it’s largely obsolete. 50/125 (OM3/OM4/OM5) dominates new installations because:

1. Higher Bandwidth: Laser-optimized 50 µm fiber supports VCSELs with much greater modal bandwidth than 62.5 µm.

   • OM1 (62.5 µm): 200 MHz·km @ 850 nm → 33 m at 10G
   • OM4 (50 µm): 4700 MHz·km @ 850 nm → 400 m at 10G

2. Better Modal Noise Performance: Smaller core reduces differential mode delay (DMD), critical for high-speed serial transmission.

3. Wavelength Flexibility: OM5 50/125 supports SWDM (Short Wavelength Division Multiplexing) using 850–950 nm, enabling 40G/100G over two fibers instead of eight.

In short: 50/125 is the sweet spot—large enough for easy coupling, small enough for high bandwidth.

Can You Mix 9/125 and 50/125 Fibers in the Same Link?

Technically possible? Yes. Practically advisable? Almost never.

Connecting single-mode and multimode fiber creates a massive mismatch:

• Light exiting a 9 µm core overfills a 50 µm core → minimal loss (but wasted power).
• Light exiting a 50 µm core underfills a 9 µm core → catastrophic loss (>20 dB) due to mode field mismatch.

Even if the link “lights up” at low speed, it will fail at higher rates due to:

• Modal noise
• Chromatic dispersion mismatch
• Unpredictable back reflection

Never splice or connectorize 9/125 to 50/125 unless using a mode-conditioning patch cord (and even then, only for legacy 1000BASE-LX over OM1—a dying use case).

Which Applications Demand 9/125—and Which Favor 50/125?

Choose 9/125 (Single-Mode) When:

• Distances exceed 500 meters (campus backbones, metro networks)
• Future upgrades to 100G, 400G, or 800G are planned
• WDM (CWDM/DWDM) is required (only feasible on SMF)
• Operating in outside plant (OSP) environments (aerial, direct burial)
• Budget allows for higher transceiver cost in exchange for longevity

Choose 50/125 (Multimode OM4/OM5) When:

• Distances are <150 meters (data center server-to-TOR)
• Cost sensitivity favors VCSEL-based optics (SR4, SR8)
• Rapid deployment benefits from easier termination and testing
• Legacy compatibility with existing MMF infrastructure exists
• Power and cooling constraints favor lower-power transceivers

Rule of Thumb: If it’s inside a building and under 100 m, multimode often wins. If it leaves the building, single-mode is almost always better.

How Do Installation and Testing Practices Differ Between Them?

Termination & Splicing

• 9/125: Requires higher precision. Core alignment fusion splicers preferred. Connector end-face quality critical (IEC 61300-3-35 inspection mandatory).
• 50/125: More tolerant of minor offsets. Mechanical splices and lower-cost cleavers often sufficient.

Testing

• 9/125: OTDR traces show clear events; chromatic dispersion may need characterization for >10G coherent links.
• 50/125: Must validate modal bandwidth via DMD (Differential Mode Delay) testing for OM3/OM4—especially after splicing or bending.

Bend Sensitivity

• 9/125: Traditional SMF suffers bend loss below 30 mm radius. Use bend-insensitive SMF (G.657.A1/A2) for tight spaces.
• 50/125: OM4/OM5 are inherently more bend-tolerant—but sharp bends still cause differential mode loss, skewing pulse shapes.

Is Single-Mode Becoming the Default—even in Data Centers?

Yes—and the trend is accelerating. Driven by:

• Plummeting single-mode transceiver costs (e.g., 100G-FR/LR now <$300)
• Rise of coherent pluggables (400ZR, 800ZR) that only work on SMF
• Need for fiber exhaust reduction (SMF uses 2 fibers vs. 8–16 for MMF parallel optics)
• Desire for true future-proofing (one fiber for 10G today, 800G tomorrow)

Major cloud providers (Google, Meta, Microsoft) now deploy single-mode exclusively, even for intra-data-center links. For enterprises, the break-even point is shifting below 100 meters.

That said, multimode remains viable for SMBs, edge sites, and cost-constrained deployments where 10G/25G suffices for the foreseeable future.

Is This Just About Glass—or About Strategy?

Choosing between 9/125 and 50/125 isn’t merely a technical decision—it’s a strategic one. It reflects your view of the future: Will your network evolve incrementally, or leap forward? Is your priority lowest upfront cost—or lowest total cost of ownership?

Single-mode offers infinite headroom but demands investment today. Multimode offers immediate economy but eventual obsolescence.

The best choice isn’t universal—it’s contextual. But understanding the physics, economics, and trajectory of both ensures you’re not just installing fiber… you’re building a foundation that lasts.

And in that clarity lies the true difference between 9 and 50 microns: not just size, but vision.
