Model No: OTO Terminal Box

White FTTH Fiber Optic Patchcord With OTO Terminal Box

Product namee : OTO Terminal Box

Application : FTTH FTTB FTTX Network

Connector type : APC/UPC

Material : PVC/LSZH

Fiber Type : G657A1 G656A2 G652D

Wavelength : 1310nm or 1550nm

Installation : Wall-Mounted or Rack-Mounted

Polish : PC/UPC/APC

Number of port : 1/2/4

minimum order :

1000

Quantity :

add to cart

Contact Now

Fiber Optic Oto Box FTTH Fiber Optic White Patchcord With OTO Terminal Box

FTTH Fiber Optic White patchcord With OTO Terminal Box

Fiber optic patchcord, is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.
Fiber patchcord also come in hybrid varieties with one type of connector on one end and another type of
connector on the other like this one. Jumpers are used to connect end devices or network hardware to the
structured cabling system.

1. Specification:

Fiber Type		SM		MM
Normal Fiber OD		125±0.2um		125±0.2um
Connector Type		SC,FC,ST, E-2000, LC, MU, DIN	MTRJ	SC,FC,ST, E-2000, LC, MU	MTRJ
Insertion loss(Typical)		0.2dB	0.4dB	0.2dB	0.4dB
Insertion loss(Max)		0.3dB	0.5dB	0.3dB	0.5dB
Return Loss(Typical)	PC	50dB	35
	UPC	55dB
	APC	65dB
Mating Durability(500 C)		0.2dB
0.Temperature Stability		0.3dB
Operation Temperature		-40°C~+85°C
Storage Temperature		-40°C~+85°C

2. Fiber Ftth Box Feature:
1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.

3. Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

4. Product Picture:

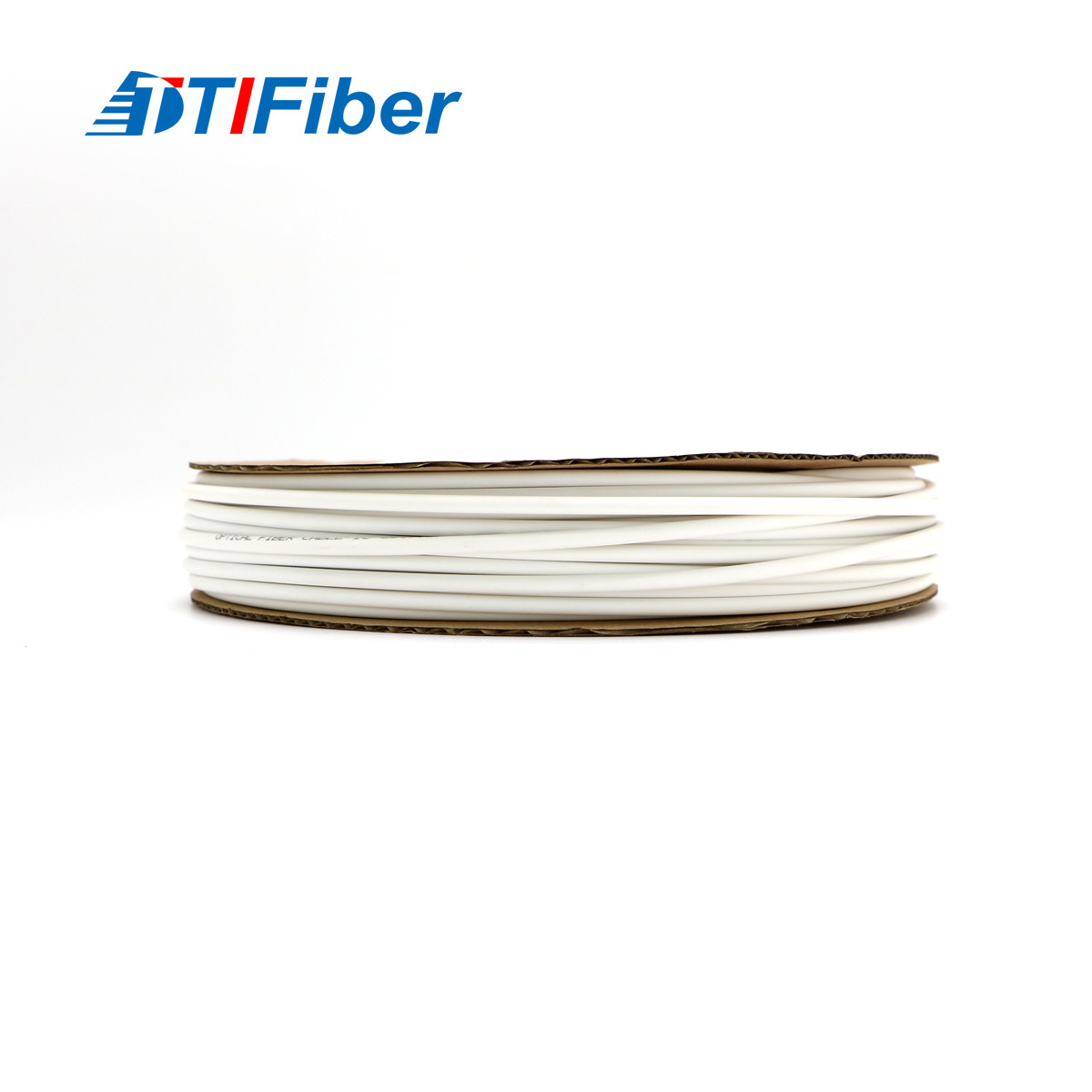

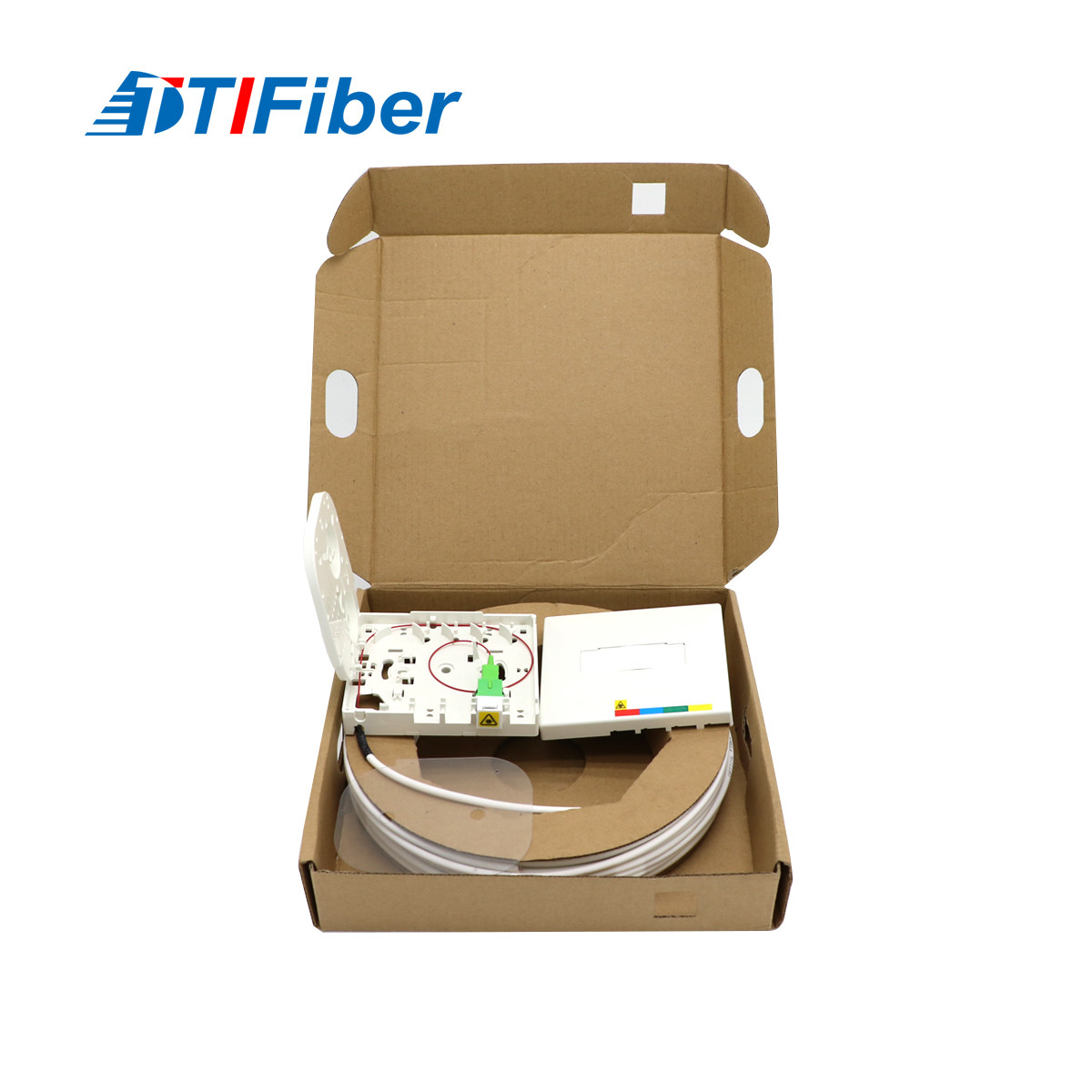

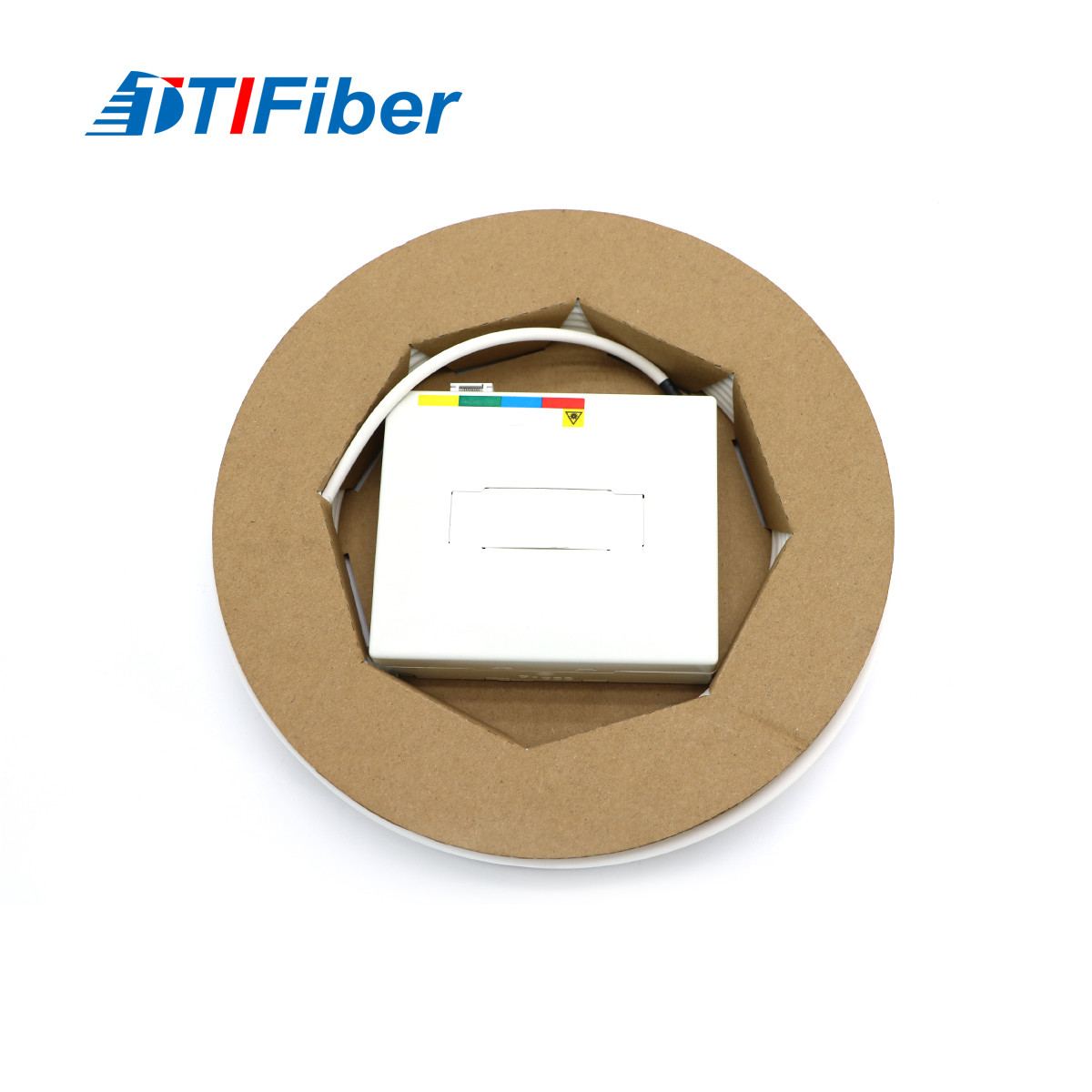

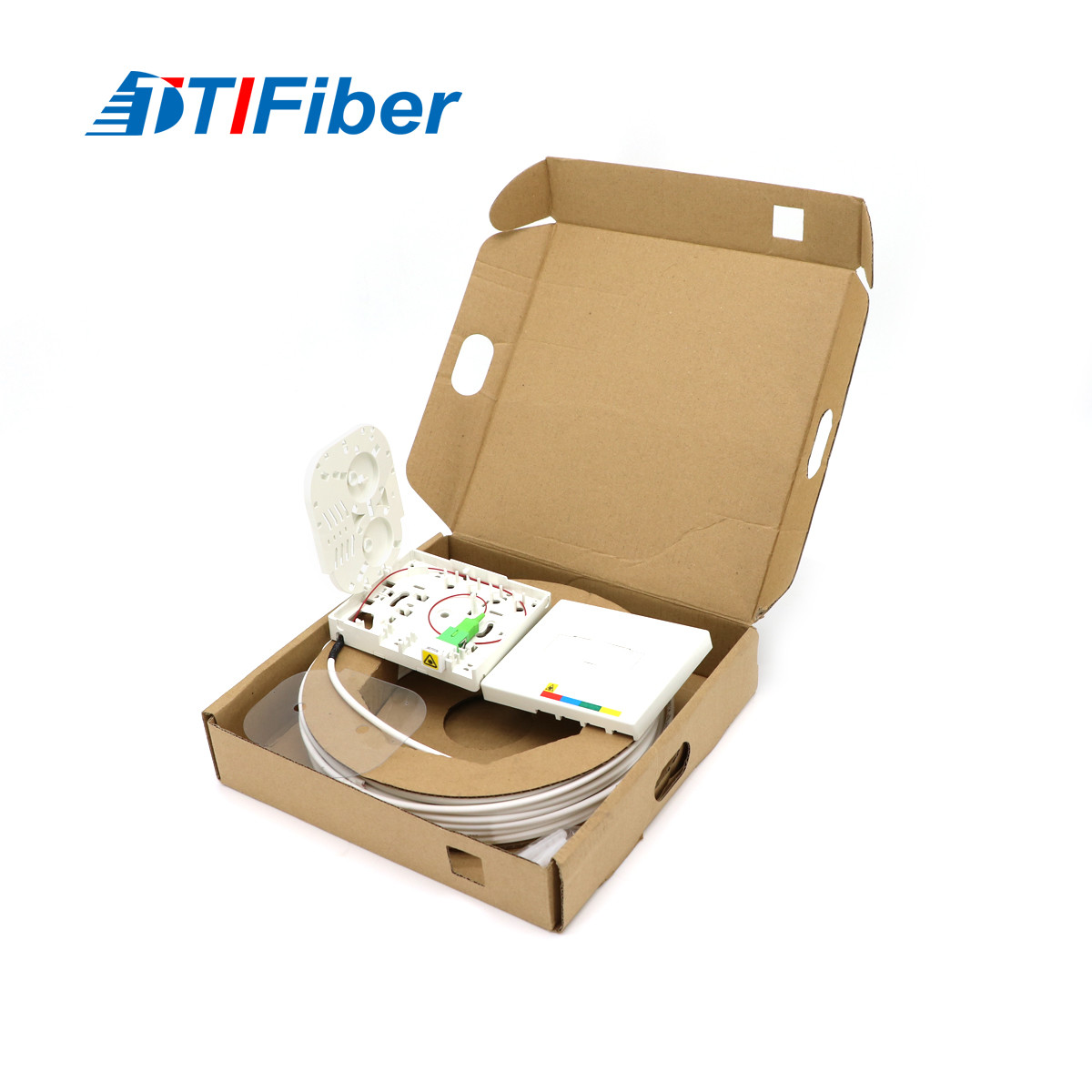

Patchcord With OTO Terminal Box

5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all payments , such as LC,TT,DP,DA,Paypal.
