Duplex Port Fixed 24 Port Lc Fiber Patch Panel / Fiber Termination Box
Model : Fixed Type, Slidable Type
Connector : LC-DX
Material : Cold Rolled Steel, AL
Color : Black, White, Grey
Port : 24
Height : 1U, 2U, 3U, 4U, 8U
Thickness : 0.8mm,1.0mm, 1.2mm
High Light : rack mount fiber patch panel, fiber termination panel
24 Port LC Duplex Port Fixed Type Fiber Optic Terminal Box
Duplex Port Fixed 24 Port Description:
The body make use of cold rolling steel,and the surface use the technique of dim plastic.strong
adhesive force,artistic and durable;
Standard size, light weight and reasonable structure;
Splice tray inside changeable;
Can be used in 19'', 23'' standard distribution frame;
Suitable for ribbon and single fiber;
SC/ST/FC/LC ports is available;
Front mark on the plate is easy for identification and operation;
24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters;
Easy for management and operation .
Fiber Termination Box Feature:
External size 480x250x1U, 2U,
Fiber capacity from 12 cores to 48 cores
Insertion loss: <0.3dB
Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
Winding radius ≥40mm
Working temperature -25°C~+45°C
Atmosphere pressure 70~106Kpa
Fiber Optic Distribution Box Application:
Rack mount serial dustproof cover optical fiber terminal box can be applied in the storage of indoor optical cable,
distribution and terminal of various optical fiber system.
Revolving structure, easy for operation.
Available for the rack installation of adaptors for FC, SC, ST, LC and so on.
Specification:
| Type | OTB-RF-1UA | OTB-RF-2UA | OTB-RF-1UB | OTB-RF-1UB | OTB-RF-1UC | OTB-RF-2UC |
| Size(mm) | 430*250*1U | 430*250*1U | 482*295*1U | 320*240*100 | 350*340*120 | 350*340*120 |
| Max capacity(core) | 24 | 48 | 24 | 48 | 24 | 48 |
| Weight(kg) | 2.6 | 3.8 | 3 | 4 | 3 | 5 |

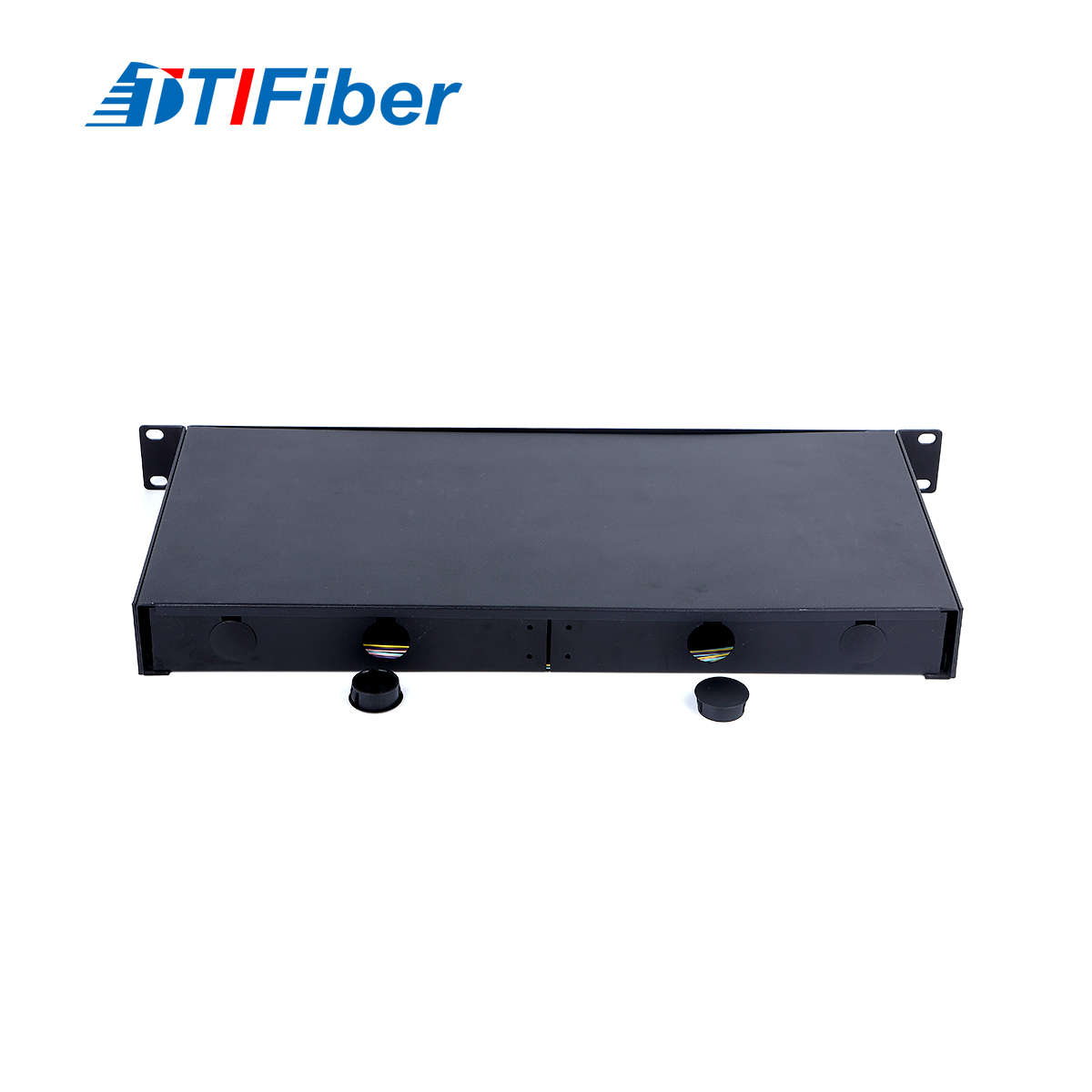

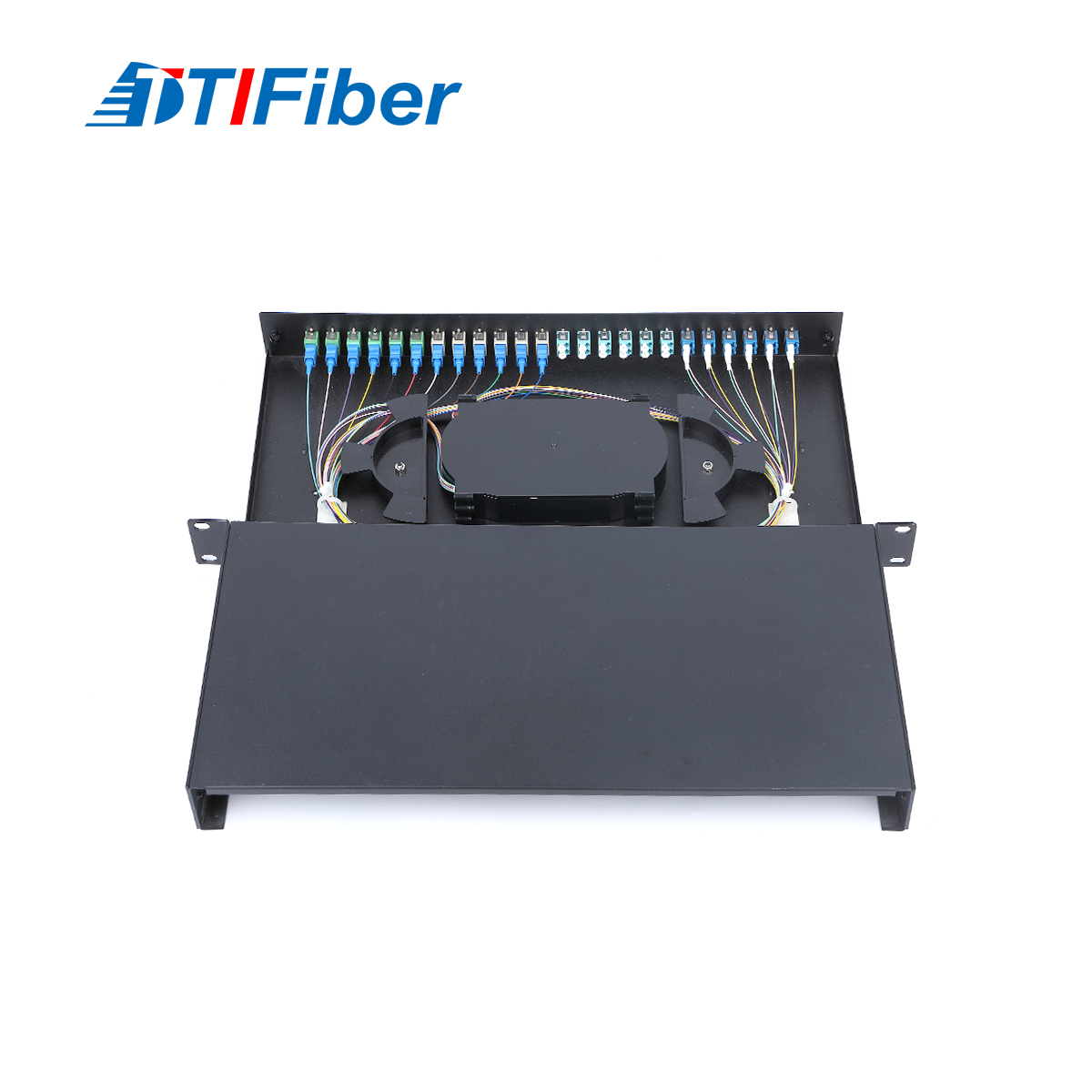

Fiber Optic Terminal Box Product Picture:
