White FTTH Fiber Optic Patchcord With OTO Terminal Box
Application : FTTH FTTB FTTX Network
Connector Type : APC/UPC Material PVC/LSZH
Fiber Type : G657A1 G656A2 G652D
Color : Customized
Wavelength : 1310nm Or 1550nm
Installation : Wall-Mounted Or Rack-Mounted
Polish : PC/UPC/APC
Number Of Port : 1/2/4
Quality Control : 100% Test Before Shipping
Length : 1m 2m 3m Or Customized
High Light : OTO Terminal Box Fiber Optic Patchcord, FTTH Fiber Optic Patchcord
Fiber Optic Oto Box FTTH Fiber Optic White Patchcord With OTO Terminal Box

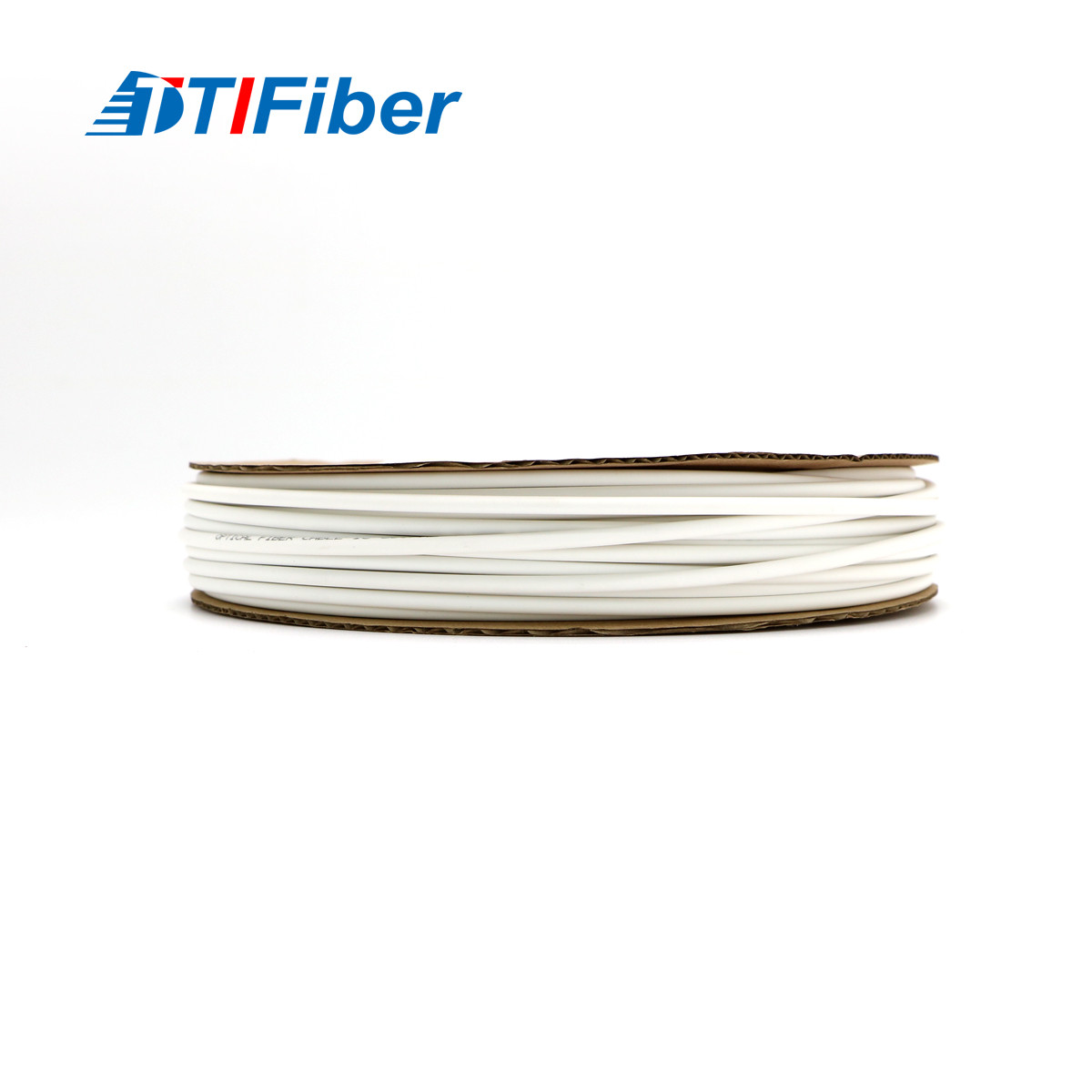

White FTTH Fiber Optic Patchcord With OTO Terminal Box
Fiber Optic Patchcord Terminal Box , is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at
each end.Fiber patchcord also come in hybrid varieties with one type of connector on one end and another type
of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the
structured cabling system.
1. Terminal Box Specification:
Fiber Type/Terminal Box | SM | MM | |||
Normal Fiber OD | 125±0.2um | 125±0.2um | |||
Connector Type | SC,FC,ST, E-2000, LC, MU, DIN | MTRJ | SC,FC,ST, E-2000, LC, MU | MTRJ | |
Insertion loss(Typical) | 0.2dB | 0.4dB | 0.2dB | 0.4dB | |
Insertion loss(Max) | 0.3dB | 0.5dB | 0.3dB | 0.5dB | |
Return Loss(Typical) | PC | 50dB | 35 | ||
UPC | 55dB | ||||
APC | 65dB | ||||
Mating Durability(500 C) | 0.2dB | ||||
0.Temperature Stability | 0.3dB | ||||
Operation Temperature | -40°C~+85°C | ||||
Storage Temperature | -40°C~+85°C | ||||
2. Ftth Termination Box Feature:
1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.
3. Fttb Box Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor

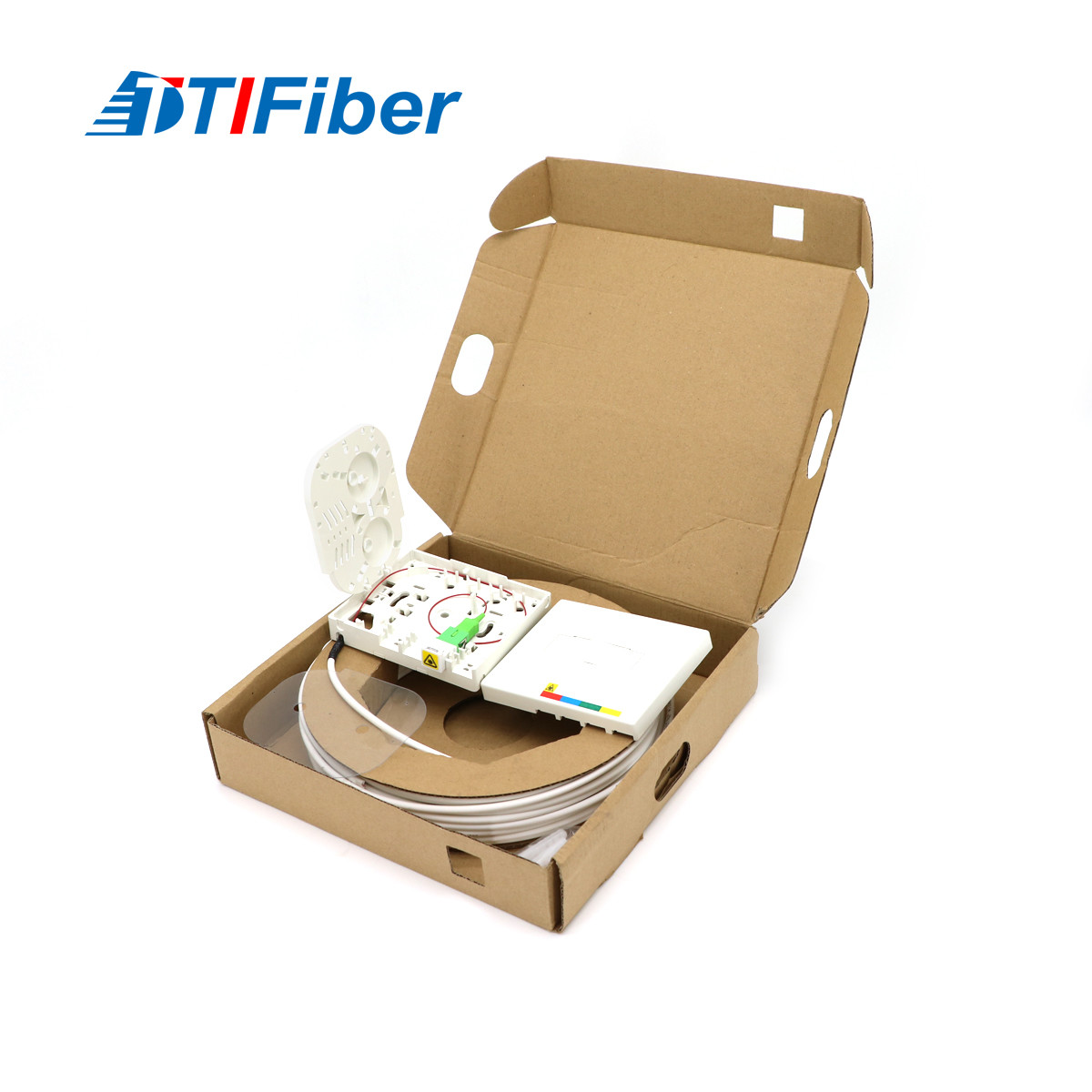

Terminal Box：
