FTTH 86 Type Optical Termination Box With 2 Port Inlet / Outlet
Connector : SC-SX
Material : PC, ABS
Port : 1 Core
High Light : fiber optic cable box, fiber optic splice box
FTTH 86 Type Fiber Optic Terminal Boxes with 2 Port Inlet / Outlet
Fiber Optic Terminal Boxes Description:
This fiber termination box is designed for use in residential and business applications for the termination of up to 2 fibers.
It can hold max 2 SC adapters.
The unit can be quickly installed within an office, house or communication room environment.
Indoor Fiber Termination Box Feature:
Economic design
Ability to allow cables to enter from both sides of the unit
Removable cover for easy access
compact, low profile, wall mounted unit used for small and large business premises
Fiber Termination Box Wall Mount Applications:
CATV networks
Local area networks
Data communications networks
Widely used in FTTH access network
Specification:
| Type/Fiber Optic Terminal Boxes | FTB-86A | FTB-86B | FTB-02 | FTB-04 |
| Size(mm) | 86*86*23 | 86*90*16 | 205*115*35 | 150*110*30 |
| Cable diameter(mm) | Φ 3 | Φ 3 | Φ 7 – Φ 14 | Φ 7 – Φ 10 |
| Cable ports | 2 | 2 | 3 | 5 |
| Max capacity(core) | 2 | 2 | 2 | 4 |

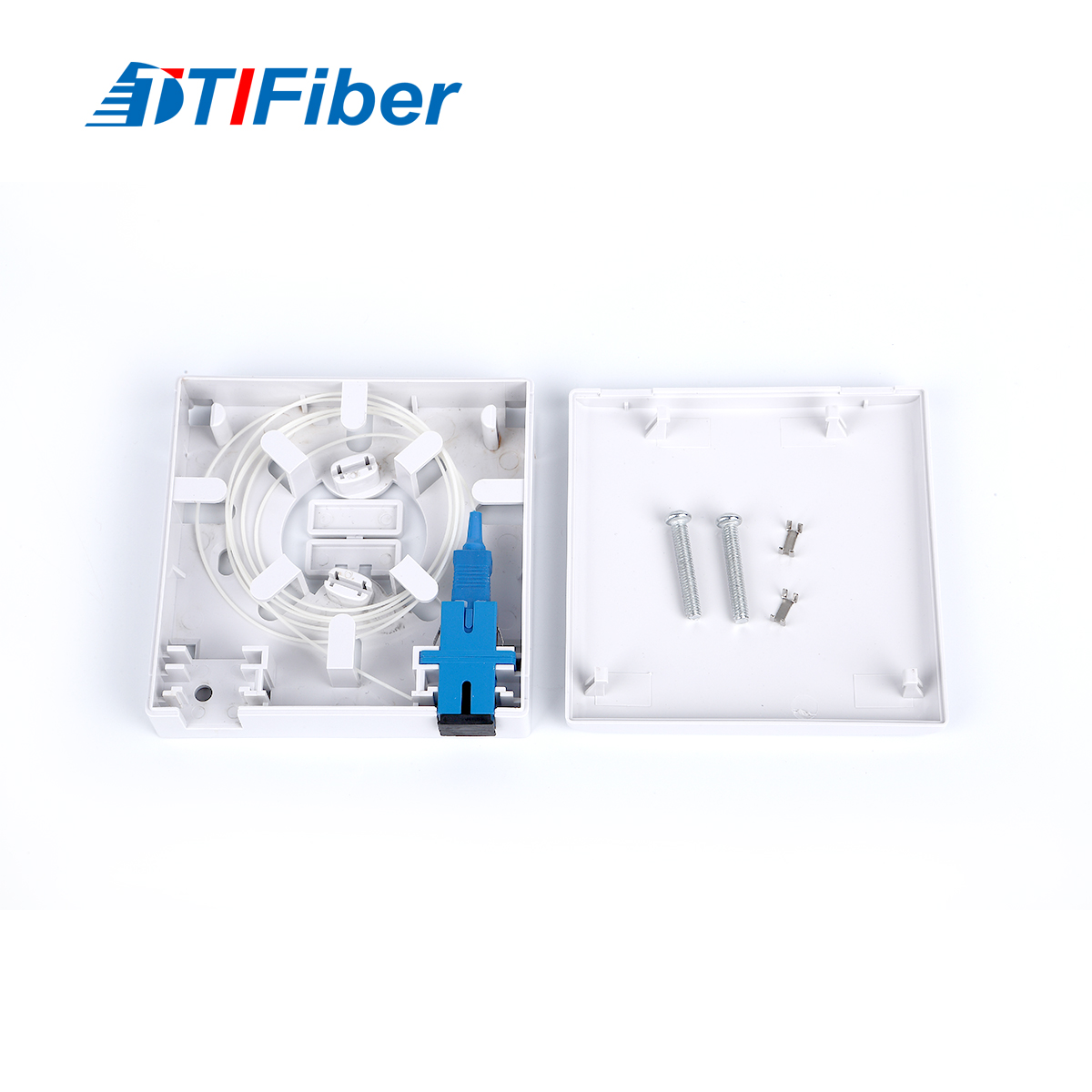

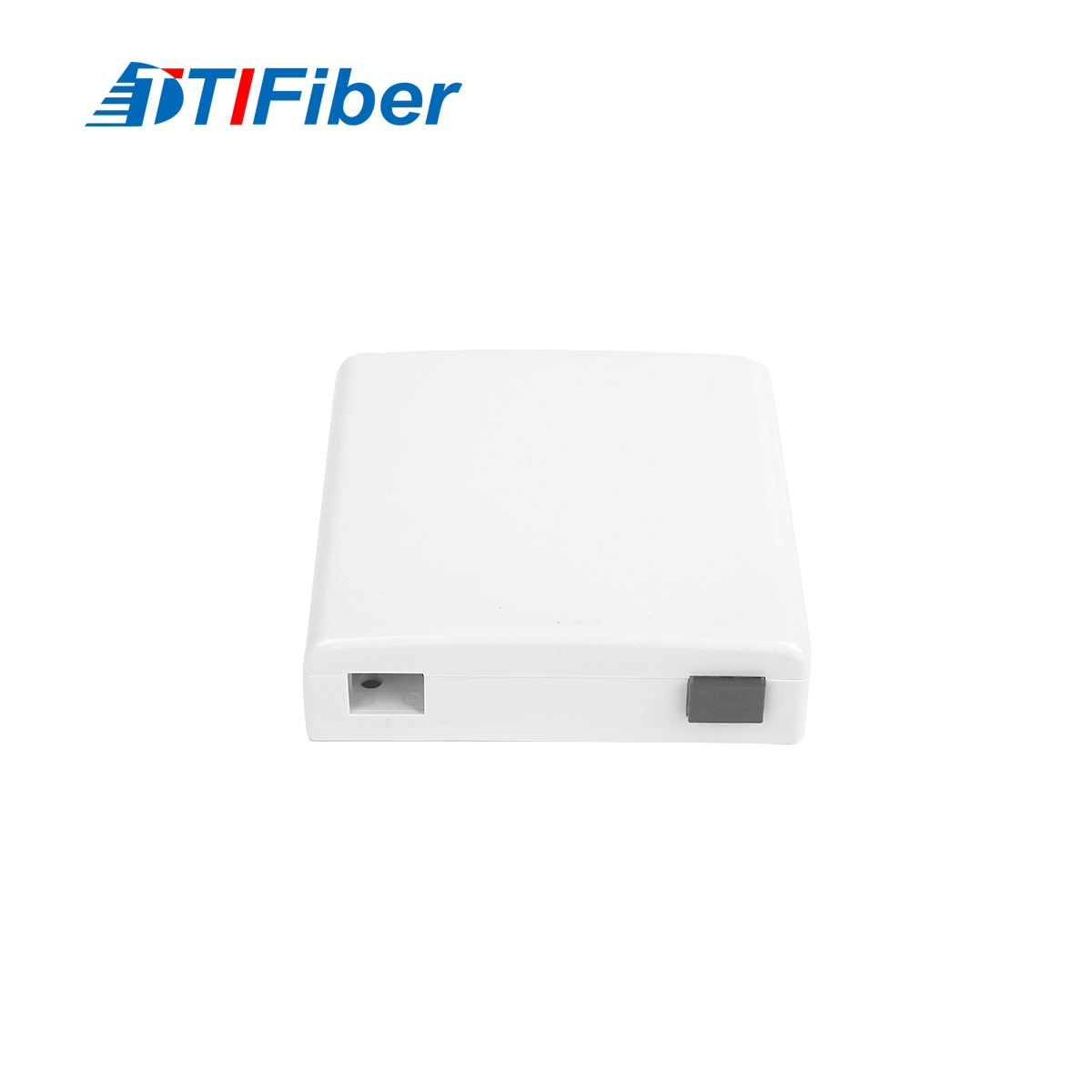

86 Type Fiber Optic Terminal Boxes Product Picture:
