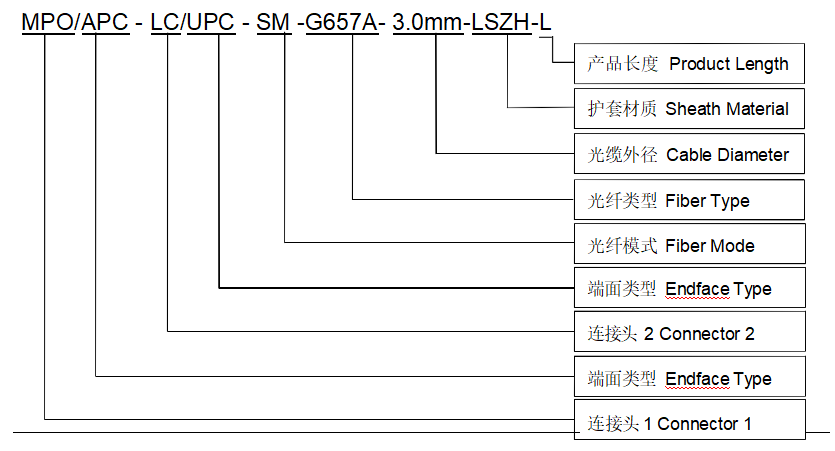

MPO/APC-LC/UPC SM 8F G657A 3.0mm LSZH

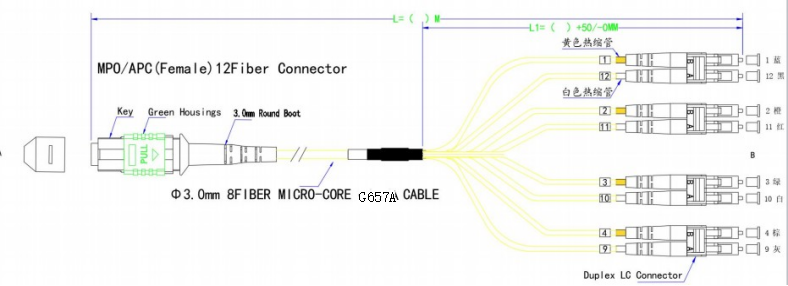

Product Structure：
Product Length Tolerance（△L）：Table 1
|
L≤1m |
-1cm≤△L≤+5cm |
|
1m＜L≤10m |
-10cm≤△L≤+10cm |
|
L≥10m |
-10cm≤△L≤1％*L |
|
Connector1 |
Connector2 |
Endface Type |
Fiber Type |
Cable Diameter |
Sheath Material |
Color |
|
LC |
APC/UPC |
G657A |
3.0mm |
LSZH |
Yellow |
|
|
It can also be customized according to the specifications specified by customers. |
||||||

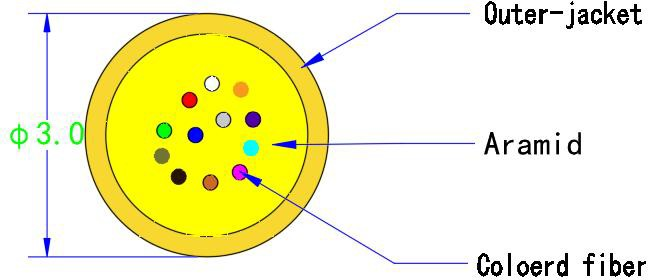

Fiber optic cable structure and performances
（8 Fiber Round Cable）
Table 3
|
Cable Diameter (mm) |
Inner Sheath Diameter (mm) |
Tension (N) |
Crush Resistance (N/100mm) |
|
3.0±0.2 |
0.25±0.05 |
30/100 |
100/300 |
Optical Performances Table 4
|
Item |
|
|
Insertion Loss(dB) |
MPO≤0.75,LC≤0.3 |
|
Return Loss(dB) |
SM:≥50（UPC） ≥60（APC）; MM:≥25（PC） |
|
Conform to criterion |
IEC61754 |
Test criterion： IEC 61300-2-1
Amplitude：0.75mm
Frequency sweep range：10~50HZ/minute
Time：30minutes
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
● Impact test
Test criterion： IEC 61300-2-12
Drop height：1.5m
Drop times：5/times
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
● Mating durability test
Test criterion：IEC 61300-2-2
Durability：500 /times
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Environmental performances
● High-temperature test
Test criterion： IEC61300-2-18
Temperature：70℃
Time：96 /hours
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
● Low-temperature test
Test criterion：-25℃
Time：96 /hours
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
● Change of temperature：
Test criterion： IEC 61300-2-22
Temperature range：-25℃to + 70℃
Time：96 /hours，12 /cycles
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
● Damp heat
Test criterion： IEC 61300-2-19
Test condition：40℃，93% RH
Time：96 /hours
After test：
a) No mechanical damage, such as deformation, crack, slack, etc
b) The optical performance conforms to Table 5
Tabel 5
|
No. |
Test Item |
Insertion Loss variation（dB） |
|
1 |
Vibration test |
≤0.2 |
|
2 |
Impact test |
≤0.2 |
|
3 |
Mating durability test |
≤0.2 |
|
4 |
High-temperature test |
≤0.2 |
|
5 |
Low-temperature test |
≤0.2 |
|
6 |
Change of temperature |
≤0.2 |
|
7 |
Damp heat |
≤0.2 |
Temperature Performances
Installation temperature: -10℃~+60℃
Storage temperature: -40℃~+85℃
Environmental protection: Products meet ROHS.
Packaging, Transportation and Storage
● Identification: The product packaging box (bag) should be marked with the product model and
specifications, optical performance parameters, production batch number and other information.
● Packaging: After the coils are tied up, they are packed in ziplock bags and then packed in cartons
according to the customer's order quantity
● Transportation: According to the provisions of the national standards, do the corresponding marks
● Storage: Products should not be stored in open air, wet or seriously corroded environment
for a long time
Note: the above specifications can be produced according to the customer's requirements.
